Delta Electronics ASDA-B2 series User Manual

ASDA-B2 Chapter 6 Control Modes of Operation
Revision September 2013 6-45
Settings:
Please note:
For the setting of analog output voltage proportion, refer to the P1-03.
Example: P0-03 = 01 (MON1 is motor speed analog output, MON2 is motor torque
analog output)
MON1 output voltage= 8 ×
Motor speed
(unit: Volts)
(Max. motor speed ×
P1-04
)
100
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100

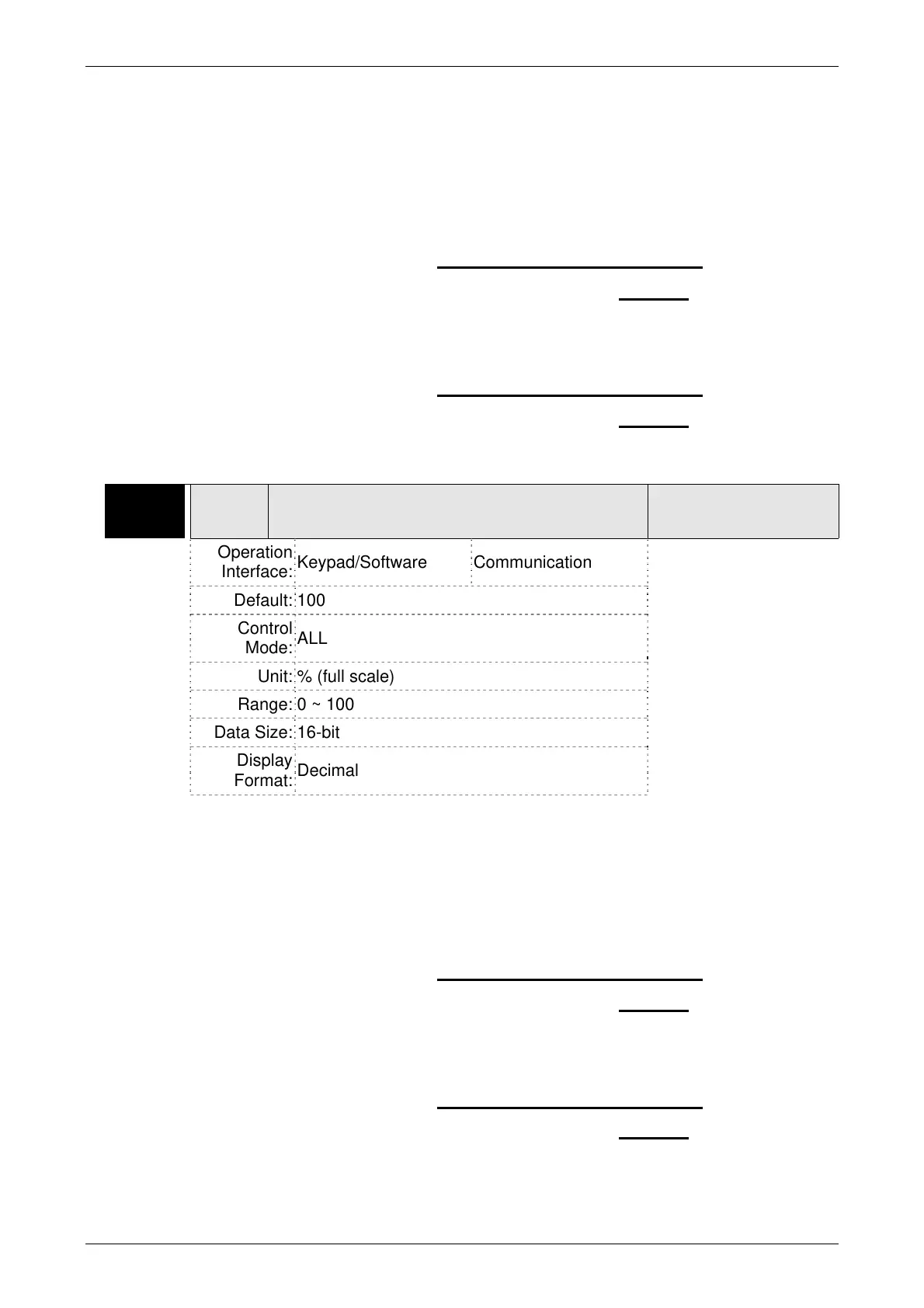

P1-05 MON2 Analog Monitor Output Proportion 2 (MON2)
Address: 010AH
010BH
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 6.4.4
Default: 100
Control
Mode:
ALL
Unit: % (full scale)
Range: 0 ~ 100
Data Size: 16-bit
Display
Format:
Decimal
Settings:
Please note:
For the setting of analog output voltage proportion, refer to the P1-03.
Example: P0-03 = 01 (MON1 is motor speed analog output, MON2 is motor torque
analog output)
MON1 output voltage= 8 ×
Motor speed
(unit: Volts)
(Max. motor speed ×
P1-04
)
100
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100
VARITEL INGENIERIA ELECTRONICA S.A.
info@varitel.com - www.varitel.com - Tel. (54) 11-4243-1171 / Fax: (54) 11-4292-7545
Manuel Baliña 456, Lomas de Zamora (B1832CCJ) Buenos Aires, Argentina.
