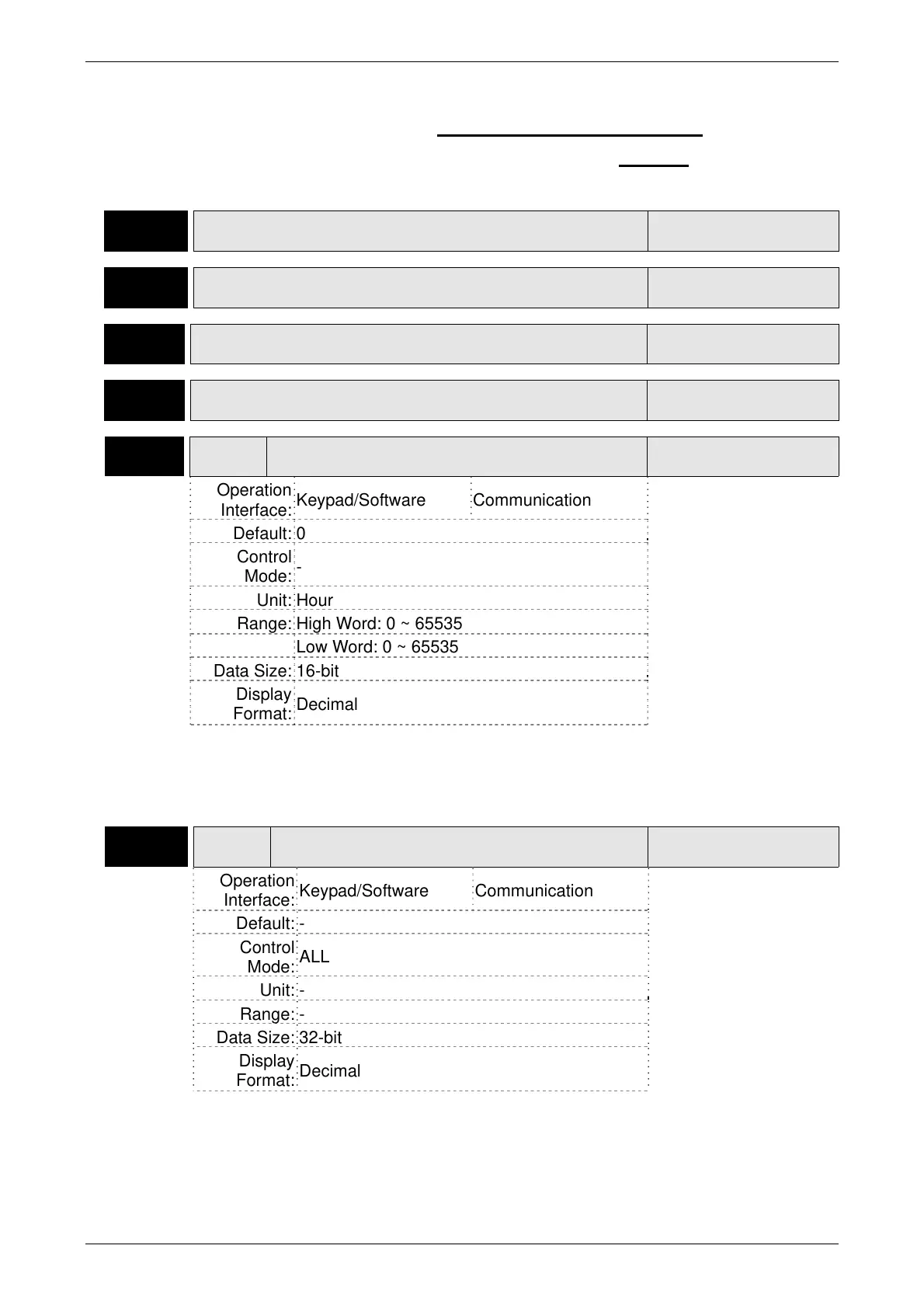

Chapter 7 Servo Parameters ASDA-B2
7-14 Revision September 2013
MON2 output voltage= 8 ×
Motor toque
(unit: Volts)
(Max. motor torque ×
P1-05
)
100
P0-04■
Reserved (Do Not Use)
Address: 0008H
0009H
P0-05■
Reserved (Do Not Use)
Address: 000AH
000BH
P0-06■
Reserved (Do Not Use)
Address: 000CH
000DH
P0-07■
Reserved (Do Not Use)
Address: 000EH
000FH
P0-08★
TSON Servo Startup Time
Address: 0010H
0011H
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: 0
Control
Mode:
-
Unit: Hour
Range: High Word: 0 ~ 65535
Low Word: 0 ~ 65535
Data Size: 16-bit
Display
Format:
Decimal
Settings:
High Word: Servo enable time
Low Word: Servo power on time
P0-09★
CM1 Status Monitor 1
Address: 0012H
0013H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 4.3.5
Default: -
Control
Mode:
ALL
Unit: -
Range: -
Data Size: 32-bit
Display
Format:
Decimal
Settings:
This parameter is used to provide the value of one of the status monitoring functions
found in P0-02. The value of P0-09 is determined by P0-17 (desired drive status)
through communication setting or the keypad. The drive status can be read from the
communication address of this parameter via communication port.
