Chapter 7 Servo Parameters ASDA-B2
7-16 Revision September 2013
communication address of this parameter via communication port.
When reading the drive status through the keypad, if P0-02 is set to 25, VAR-3 will
quickly show for about two seconds and then the value of P0-11 will display on the
display.

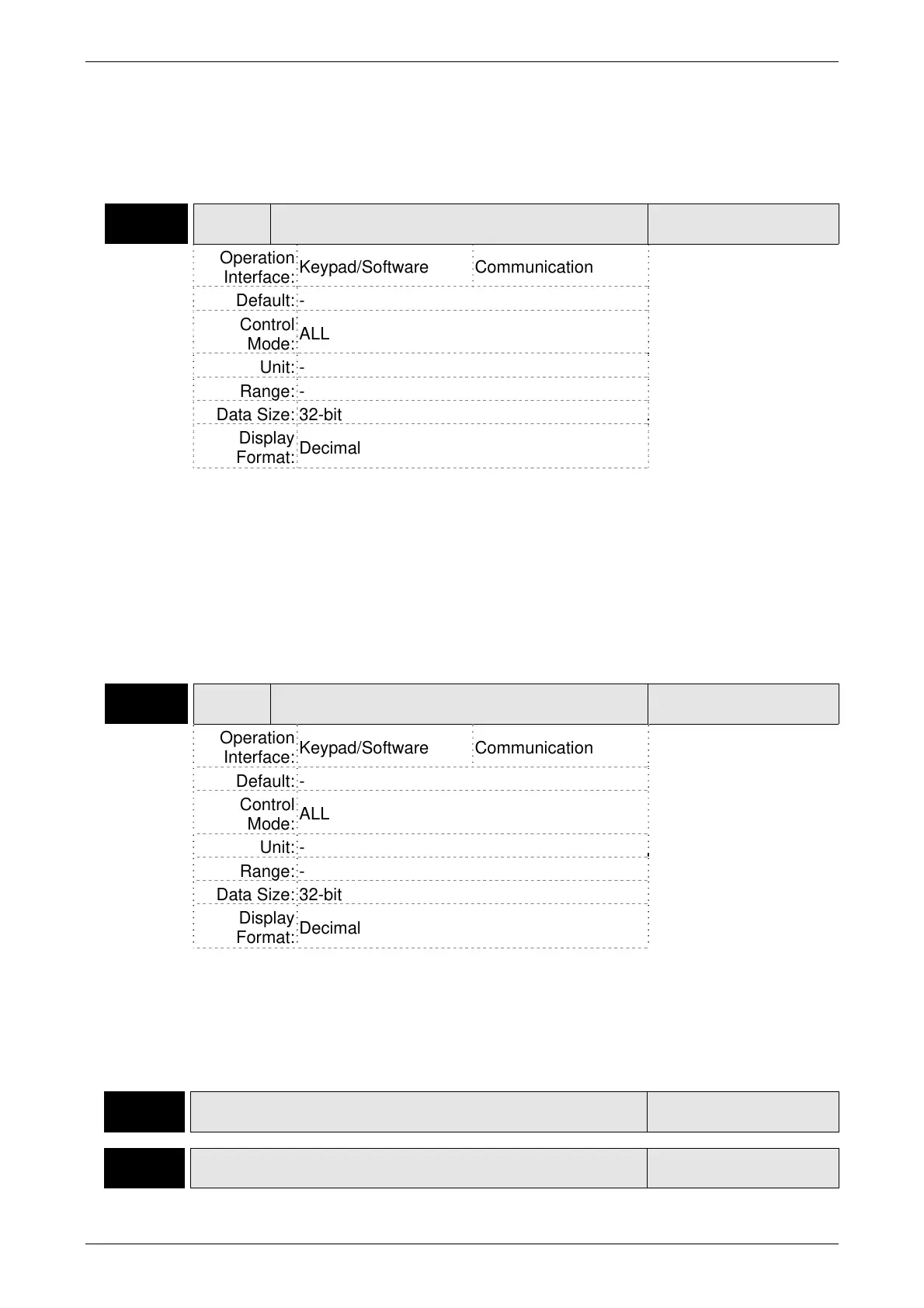

P0-12★
CM4 Status Monitor 4
Address: 0018H
0019H
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 4.3.5
Default: -
Control
Mode:
ALL
Unit: -
Range: -
Data Size: 32-bit
Display
Format:
Decimal
Settings:
This parameter is used to provide the value of one of the status monitoring functions
found in P0-02. The value of P0-12 is determined by P0-20 (desired drive status)
through communication setting or the keypad. The drive status can be read from the
communication address of this parameter via communication port.
When reading the drive status through the keypad, if P0-02 is set to 26, VAR-4 will
quickly show for about two seconds and then the value of P0-12 will display on the
display.
P0-13★
CM5 Status Monitor 5
Address: 001AH
001BH
Operation
Interface:
Keypad/Software Communication
Related Section:
Section 4.3.5
Default: -
Control
Mode:
ALL
Unit: -
Range: -
Data Size: 32-bit
Display
Format:
Decimal
Settings:
This parameter is used to provide the value of one of the status monitoring functions
found in P0-02. The value of P0-12 is determined by P0-20 (desired drive status)
through communication setting or the keypad. The drive status can be read from the
communication address of this parameter via communication port.
P0-14 Reserved (Do Not Use)
Address: 001CH
001DH
P0-15
Reserved (Do Not Use)
Address: 001EH
001FH
