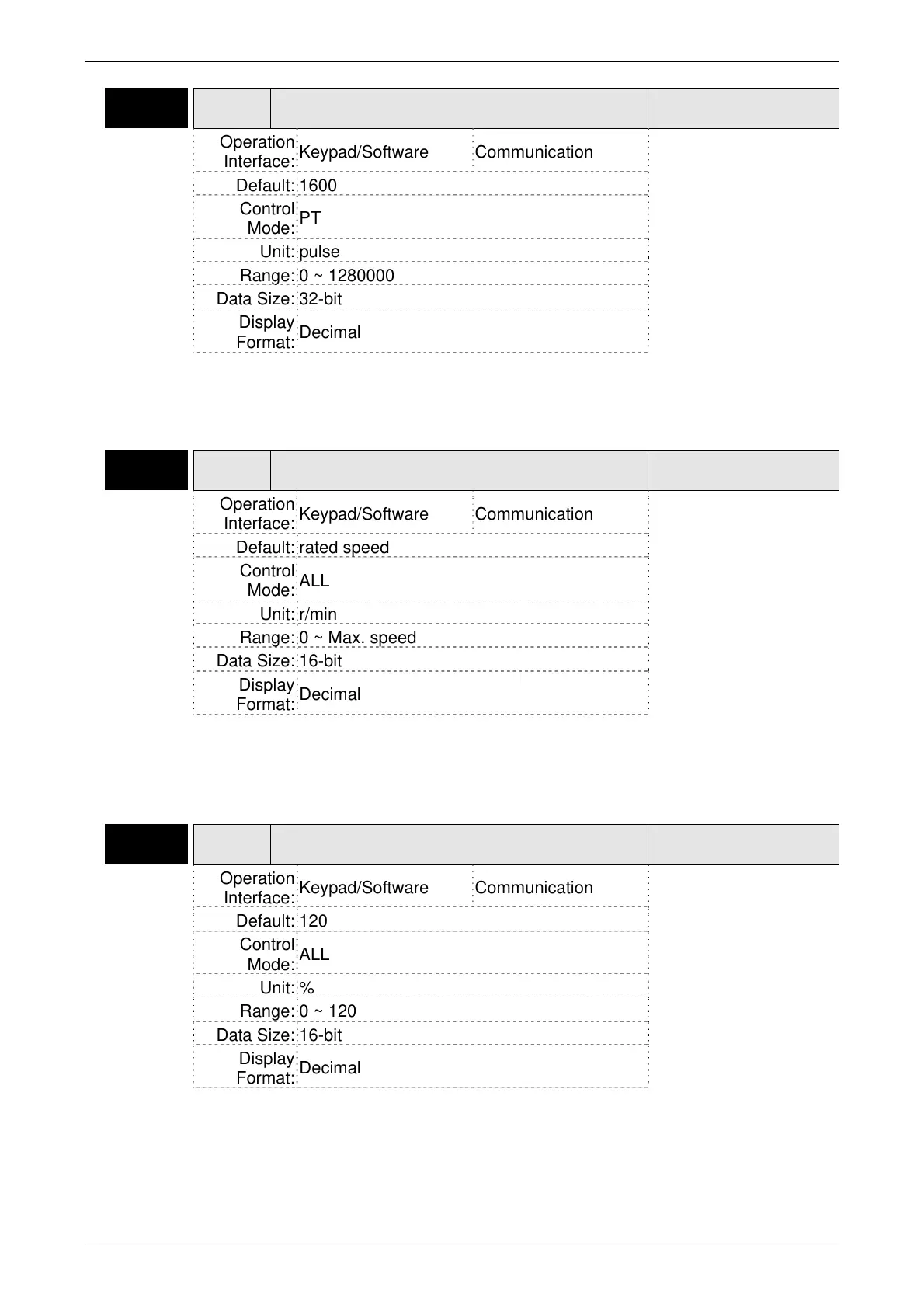

P1-54 PER Positioning Completed Width
Address: 016CH
016DH
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.B
Default: 1600
Control
Mode:
PT
Unit: pulse
Range: 0 ~ 1280000
Data Size: 32-bit
Display
Format:
Decimal
Settings:
In PT mode, when the error pulse numbers is less than the setting value of parameter
P1-54, TPOS (At positioning completed signal) will be activated.
P1-55 MSPD Maximum Speed Limit
Address: 016EH
016FH
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: rated speed
Control
Mode:
ALL
Unit: r/min
Range: 0 ~ Max. speed
Data Size: 16-bit
Display
Format:
Decimal
Settings:
This parameter is used to set maximum motor speed. The default setting is rated
speed.
P1-56 OVW Output Overload Warning Time
Address: 0170H
0171H
Operation
Interface:
Keypad/Software Communication
Related Section: N/A
Default: 120
Control
Mode:
ALL
Unit: %
Range: 0 ~ 120
Data Size: 16-bit
Display
Format:
Decimal
Settings:
This parameter is used to set output overload time. If the setting value of parameter
P1-56 is set to 0 ~ 100, the function of parameter P1-56 is enabled. When the motor
has reached the output overload time set by parameter P1-56, the motor will send a
warning to the drive. After the drive has detected the warning, the DO signal OLW will
