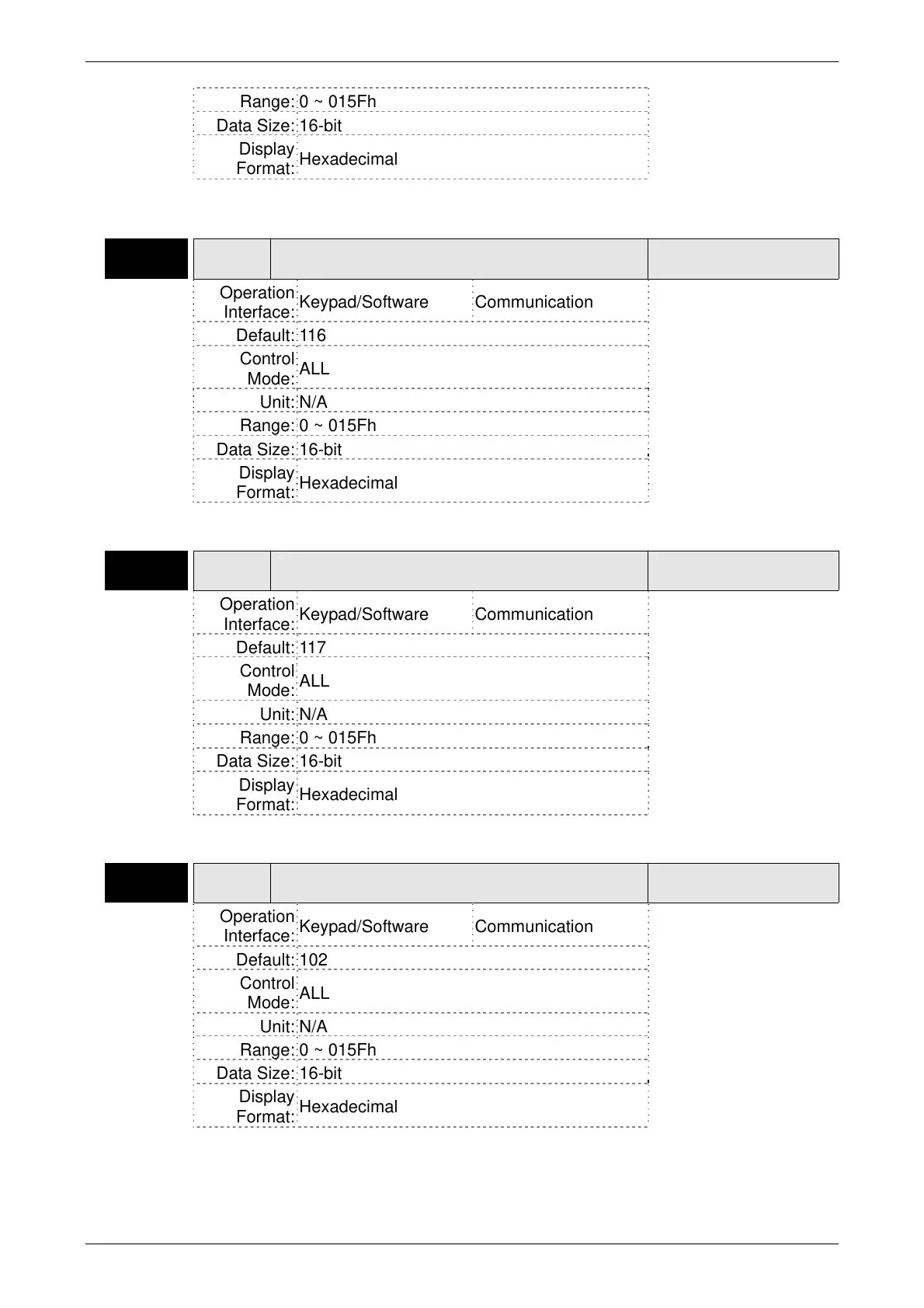

Chapter 7 Servo Parameters ASDA-B2
7-54 Revision September 2013
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-12 DI3
Digital Input Terminal 3 (DI3)
Address: 0218H
0219H
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 116
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-13 DI4
Digital Input Terminal 4 (DI4)
Address: 021AH
021BH
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 117
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-14 DI5
Digital Input Terminal 5 (DI5)
Address: 021CH
021DH
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 102
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
