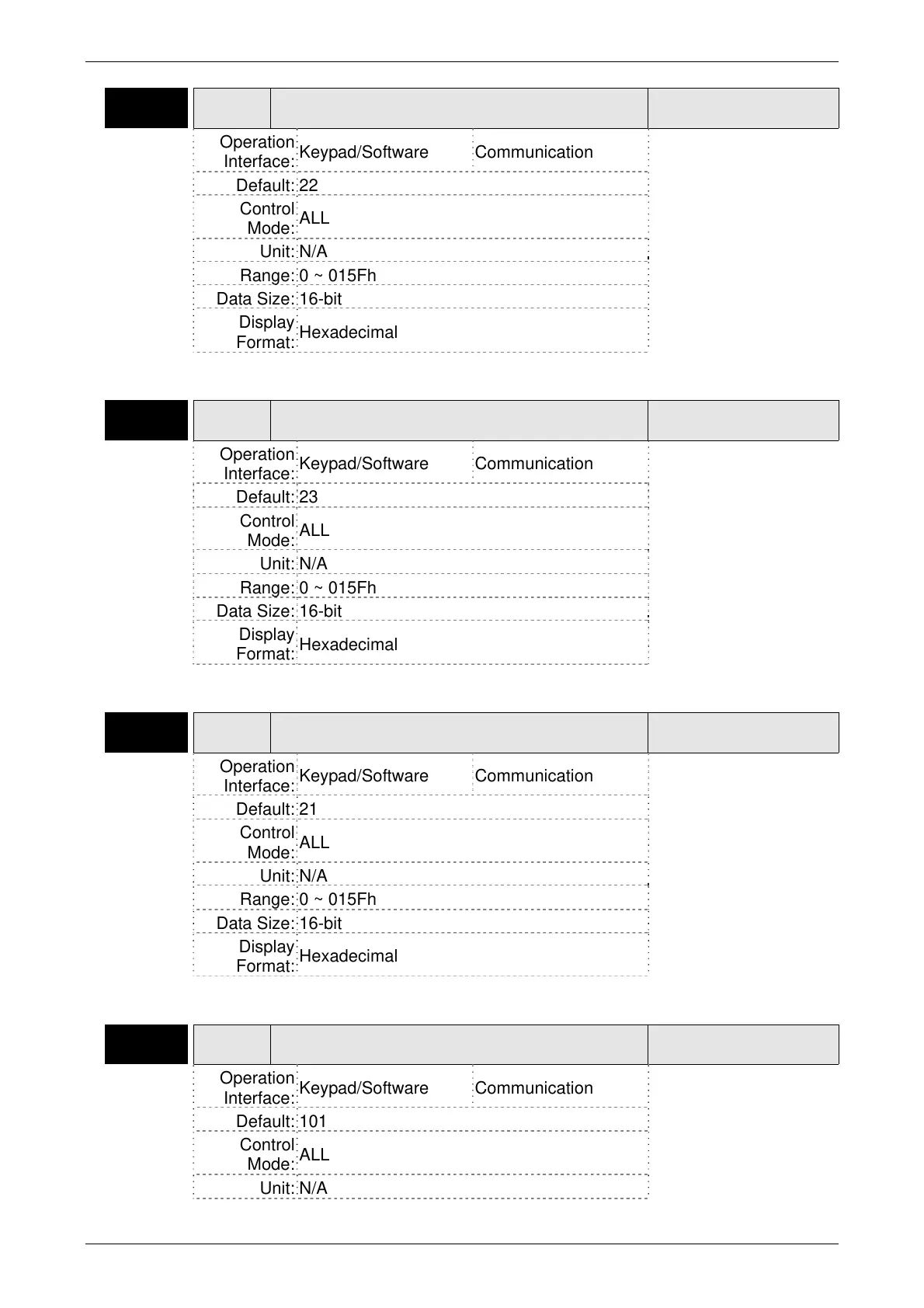

Delta Electronics ASDA-B2 series - Page 220

ASDA-B2 Chapter 7 Servo Parameters
Revision September 2013 7-55
P2-15 DI6
Digital Input Terminal 6 (DI6)
Address: 021EH
021FH
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 22
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-16 DI7
Digital Input Terminal 7 (DI7)
Address: 0220H
0221H
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 23
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-17 DI8
Digital Input Terminal 8 (DI8)
Address: 0222H
0223H
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.A
Default: 21
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 015Fh
Data Size: 16-bit
Display
Format:
Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-18 DO1
Digital Output Terminal 1 (DO1)
Address: 0224H
0225H
Operation
Interface:
Keypad/Software Communication
Related Section:
Table 7.B
Default: 101
Control
Mode:
ALL
Unit: N/A
