ENGLISH
• Connect the cables to be used (vpage 8 “Video Conversion Function”).
• With HDMI connections, the video and audio signals can be transferred with a single cable.
• To output the audio signals to the monitor with HDMI connections, set GUI menu “Manual Setup”
– “HDMI Setup” – “Audio” to “TV” (vpage 30).

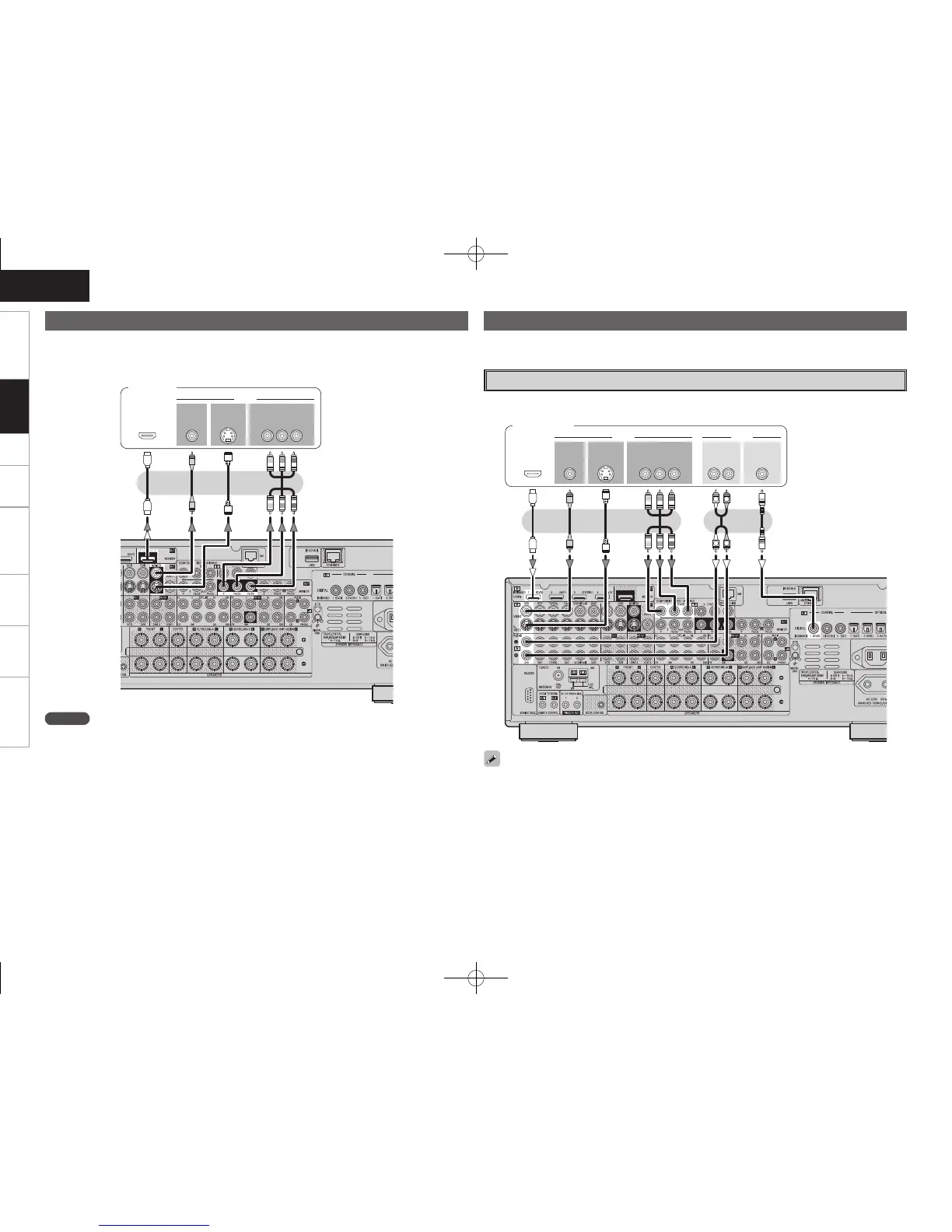

Connecting the Monitor
47*%&0
*/
7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
*/
)%.*
*/ */
47*%&0
065
"6%*07*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
065 065
"6%*0
$0"9*"-
065
3-
065065
)%.*
R
L
R
L
Monitor
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Connecting the Playback Components
DVD Player
• Connect the cables to be used.
• With HDMI connections, the video and audio signals can be transferred with a single cable.
DVD player
NOTE
• The component video connectors may be indicated differently on your monitor. For details, see the
monitor’s operating instructions.
• The audio signals output from the HDMI connectors are only the HDMI input signals.
• Connect an HDP (High-Definition Player) in the same way.
• When using an optical cable for the digital audio connection, make the settings at GUI menu “Source
Select” – “DVD” – “Assign” – “Digital” (vpage 39).
Connections
1.AVR3808E2_ENG_104.indd 16 2007/10/25 15:16:19

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
