Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.

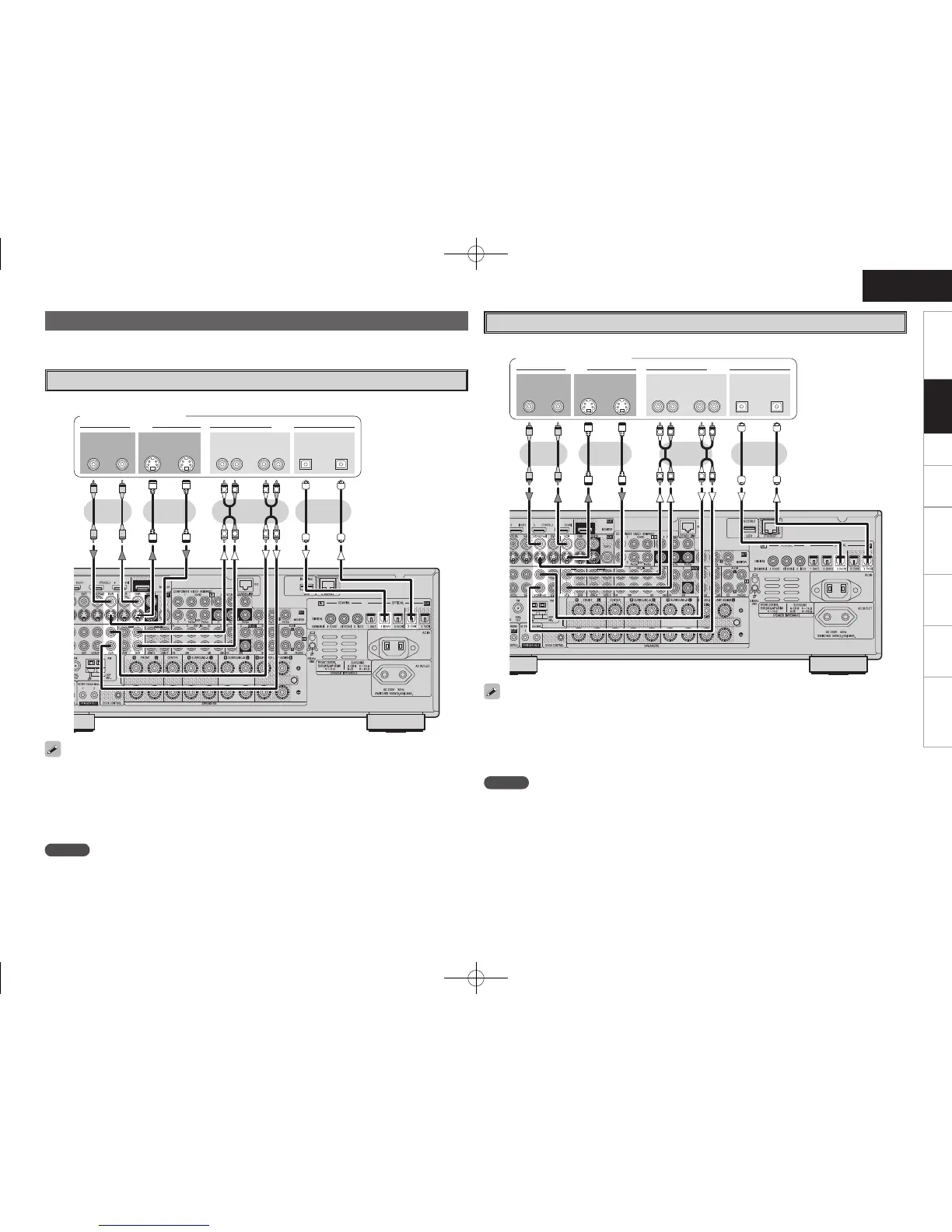

Connecting the Recording Components
Digital Video Recorder
Connect the cables to be used.
47*%&0
*/
3- 3-
*/*/065
"6%*07*%&0
*/065
015*$"-
065
"6%*07*%&0
065
R
L
R
L
R
L
R
L
Digital video recorder
NOTE
Do not connect the output of the component connected to the AVR-3808’s OPTICAL2 output connector to
any input connector other than OPTICAL2.
Make analog connections if you wish to record analog audio signals.
When recording via the AVR-3808, the playback devices cable must be of the same type as the cable
used to connect the AVR-3808’s DVR OUT connector.
Example: TV IN S-Video cable : DVR OUT S-Video cable
TV IN Video cable : DVR OUT Video cable
When using a component video cable for the video connection, make the settings at GUI menu “Source
Select” – “DVR” – Assign” – “Component” (vpage 39).
or or
47*%&0
*/
3- 3-
*/*/065
"6%*07*%&0
065
"6%*07*%&0
065 */065
015*$"-
R
L
R
L
R
L
R
L
Video Cassette Recorder
Connect the cables to be used.
Video cassette recorder
When recording via the AVR-3808, the playback devices cable must be of the same type as the cable
used to connect the AVR-3808’s VCR OUT connector.
Example: TV IN S-Video cable : VCR OUT S-Video cable
TV IN Video cable : VCR OUT Video cable
When using a component video cable for the video connection, make the settings at GUI menu “Source
Select” – “VCR” – Assign” – “Component” (vpage 39).
or
NOTE
Do not connect the output of the component connected to the AVR-3808’s OPTICAL3 output connector to
any input connector other than OPTICAL3.
or
Connections
1.AVR3808E2_ENG_104.indd 19 2007/10/25 15:16:29

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-3808 and is the answer not in the manual?

Denon AVR-3808 Specifications

General IconGeneral
TypeAV Receiver
Channels7.1
Power Output per Channel130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs4
HDMI Outputs2
Network ConnectivityEthernet
THD0.05%
Component Video Inputs3
Component Video Outputs1
Digital Audio Inputs (Coaxial)2
Preamp Outputs7.1
Weight15.5 kg
Frequency Response10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance200 mV / 47 kOhms
Signal-to-Noise Ratio100 dB
HDMI Version1.3a
Supported Video Formats1080p
Dolby TechnologiesDolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS TechnologiesDTS-HD Master Audio
Multi-room Zones3
Video Inputs/OutputsComposite
Audio Inputs/OutputsAnalog, Digital Optical, Digital Coaxial
