Denon AVR-3808 User Manual


Getting Started Connections Setup Playback Multi-Zone Information Troubleshooting
ENGLISH
Device operated
DVD, HDP, TV / CBL, DVR1, VCR, V.AUX,
SAT, CD, PHONO
TUNER
(AM/FM)
Zone selection M Z2 Z3 M Z2 Z3
ZONE SELECT Zone operation mode selection Zone operation mode selection
ZONE OFF
Power turned off (
b
1) Power turned off (
b
1)
ZONE ON
Power turned on (
b
1) Power turned on (
b
1)
SOURCE SELECT
Input source selection (
b
2)
Input source selection
CHANNEL + / – – Preset channel selection
SHIFT –
Preset channel memory block
selection
VOLUME + / –
Adjustment of volume (
b
1) Adjustment of volume (
b
1)
MUTE
Muting (
b
1) Muting (
b
1)
MENU Selected zone menu Selected zone menu
SEARCH – RDS search
8 9,
TUNING d f
– Tuning
USB
b
2
b
2
ALL MUSIC *
(Music server only)
b
3
b
3
FAVORITES *
b
4
b
4

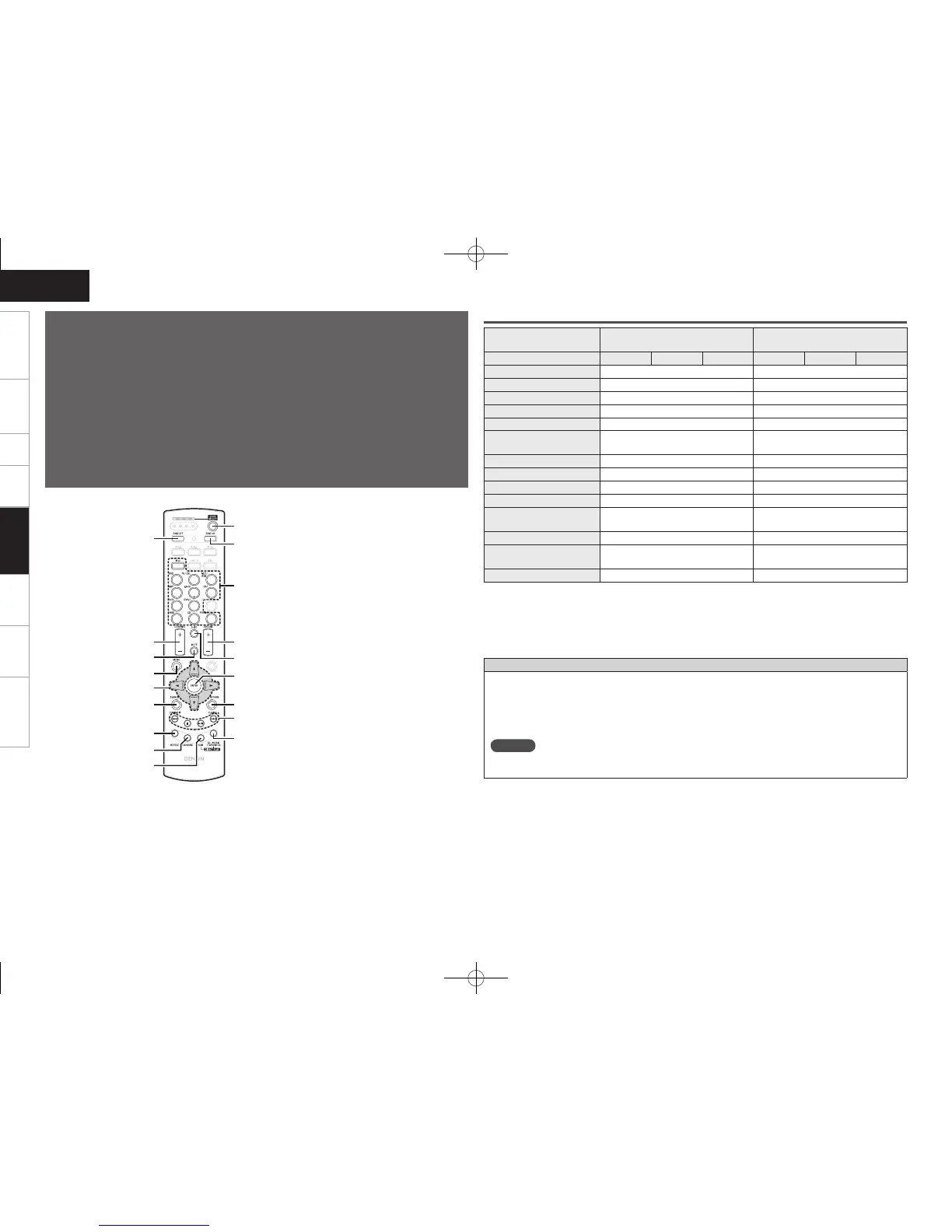

Functions of Buttons by Component
b1: Affects the currently selected zone.
b2: The input source switches to “NET/USB” and the files on the USB memory device are played.
b3: The input source switches to “NET/USB” and the files in “All Music” on the music server are played.
b4: The input source switches to “NET/USB” and the files in “Favorites” are played.
*: Whether “All Music” or “Favorites” is selected depends on the “Direct Play” setting (vpage 40).
DIRECT PLAY button
• Playback is possible in the mode selected at GUI menu “Source Select” – “NET/USB” – “Playback
Mode” – “Direct Play”.
FAVORITES: Playback starts from the first track registered in the favorites.
ALL MUSIC: Playback starts from the first track registered in the “All Music” folder.
• When [USB] is pressed, playback starts from the first track on the USB memory device.
NOTE
When the music server is stopped or restarted, it may no longer be possible to play tracks stored in
the favorites.
Sub Remote Control Unit Operations
• The sub remote control unit is equipped with frequently used buttons, so it can be used for
simple remote control unit operations.
• The sub remote control unit can also be used for multi-zone, so you can use it to control
the AVR-3808 from other rooms.
• The operations listed below can be performed with the sub remote control unit.
•
Switching the input source
•
Adjusting the volume
•
Tuner (AM/FM) and iPod operations
•
NET/USB direct play
•
GUI menu and ZONE2 on-screen display operations
•
Zone power on/off
• It is not possible to operate devices other than the amplifier.
[8 9], [2], [1/3], [TUNING d f]
[RANDOM]
[USB]
[REPEAT]
[RETURN]
[ZONE SELECT]
[ZONE ON]
[ZONE OFF]
[SOURCE SELECT]
[SEARCH]
[MUTE]
[uiop]
[MENU]
[CHANNEL +/–]
[VOLUME +/–]
[SHIFT]
[ENTER]
[ALL MUSIC], [FAVORITES]
Remote Control
1.AVR3808E2_ENG_104.indd 70 2007/10/25 15:18:10

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
