Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
Multi-Zone

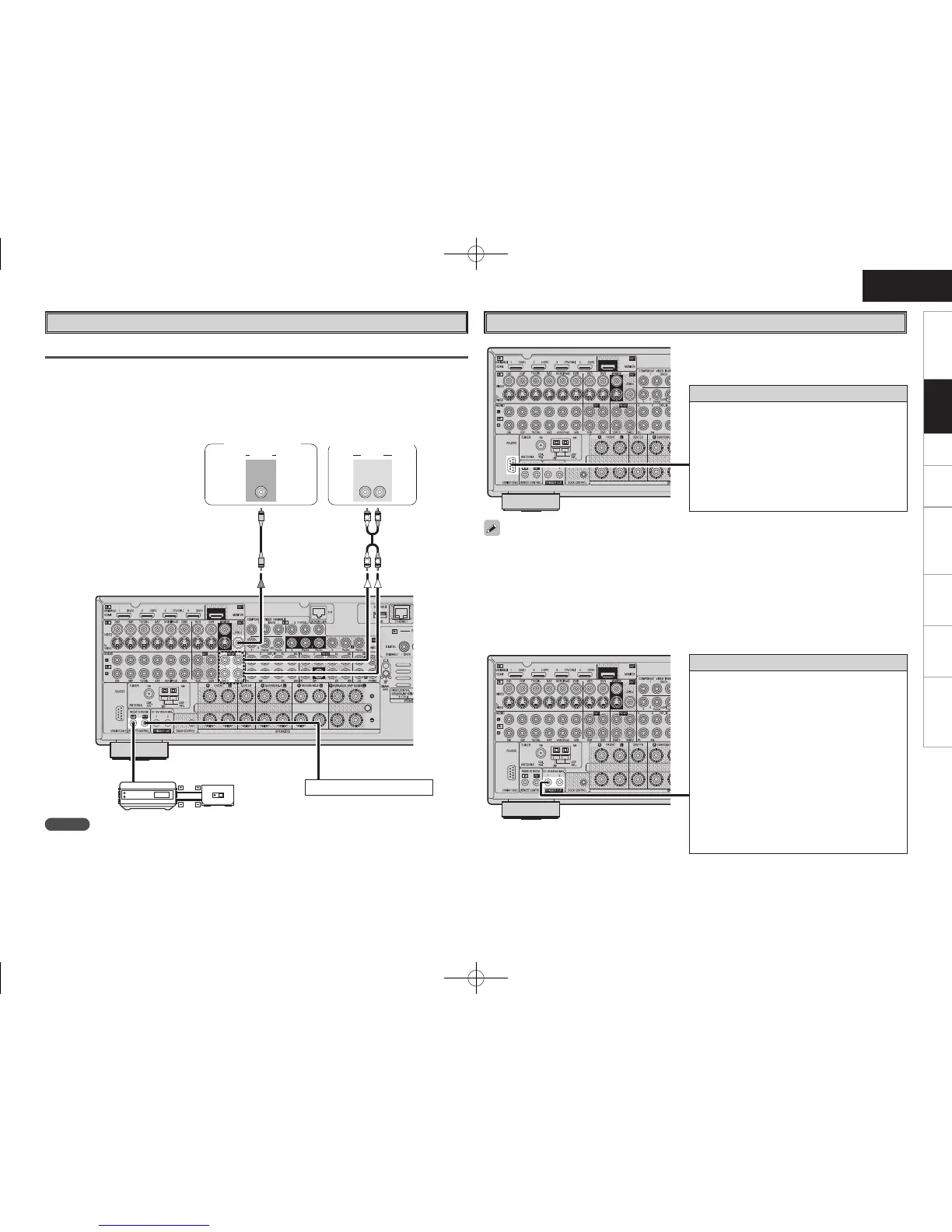

ZONE2 or ZONE3 Pre-out Connections
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 or ZONE3 pre-out
(variable or fixed level) connectors can be used to play a different program source in ZONE2 or ZONE3
the same time (vpage 69 ~ 72).
• When using an S-Video cable or a video cable for connection between the AVR-3808 and an input device,
connect to the video connectors.
• The ZONE2 video out is only for ZONE2.
Monitor (ZONE2)
Power amplier
(ZONE2 or ZONE3)
Input
Output
Infrared
retransmitter
Infrared
sensor
Extension jack for future use.
NOTE
• For the audio output, use high quality pin-plug cords so that no induction humming or noise is produced.
• For instructions on installing and operating separately sold devices, refer to the respective devices’
operating instructions.
• To conduct multi-zone playback, see “Amp Assign / Multi-Zone Connections and Operations” (vpage
69 ~ 72).
External Controller
• When using in combination with an RF Remote Controller (RC-7000CI, sold separately) or RF Remote
Receiver (RC-7001RCI, sold separately) two-way communication with an RF Remote Controller is
possible.
The AVR-3808’s status information as well as iPod and Internet audio music files can be browsed watching
the RF Remote Controller’s display. For details, refer to the operating instructions of the respective
devices.
• When used in combination with an RF Remote Controller or RF Remote Receiver, make the settings at
GUI menu “Manual Setup” – “Option Setup” – “2Way Remote” – “Used” (vpage 35).
RS-232C connector
This connector is used for an external controller.
b If you wish to control the AVR-3808 from an
external controller using the RS-232C connector,
perform the operation below beforehand.
q Turn the AVR-3808’s power.
w Turn off the AVR-3808’s power from the external
controller.
e Check that the AVR-3808 is in the standby mode.
Trigger output jacks
The power of an external device equipped with
a trigger input jack can be turned on and off in
association with operations on the AVR-3808. For
details, see GUI menu “Manual Setup” – “Option
Setup” – “Trigger Out 1” or “Trigger Out 2” (vpage
35).
• Output level: 150 mA/12 V
Check the trigger input conditions of the connected
device.
• If the trigger input level of the connected device
is higher than 150 mA/12 V and depending on
the short-circuiting conditions, the AVR-3808’s
protection circuit may be activated, in which case
“TRIGGER PROTECT” appears on the display. If
this happens, turn off the AVR-3808’s power and
disconnect the connected device.
Connections
To Next Page
