Denon AVR-3808 User Manual


Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
Q6 Q7 Q7Q8 Q6 Q9
y
r
Q1Q2 Q0
Q5
oQ3Q4
q w e iu
t
Q6 Q7 Q7Q8 Q6 Q9
q RS-232C connector ····································· (21)
w REMOTE CONTROL jacks··························· (21)
e TRIGGER OUT jacks ··································· (21)
r FM/AM antenna terminals
(TUNER ANTENNA) ···································· (19)
t DOCK CONTROL jack ································· (13)
y Speaker terminals (SPEAKERS) ·················· (9)
u AC OUTLET ················································· (22)
i AC inlet (AC IN) ··········································· (22)
o Digital audio connectors
(OPTICAL / COAXIAL) ·························· (12, 14)
Q0 ETHERNET connector ·································(20)
Q1 USB port ······················································ (18)
Q2 DENON LINK connector ····························· (16)
Q3 COMPONENT VIDEO connectors ·············· (12)
Q4 HDMI connectors ·········································(11)
Q5 VIDEO / S-VIDEO connectors ···················· (12)
Q6 Analog audio connectors (AUDIO) ············ (12)
Q7 PRE OUT connectors ····························· (17, 21)
Q8 EXT. IN connectors ····································· (17)
Q9 SIGNAL GND terminal ······························· (13)

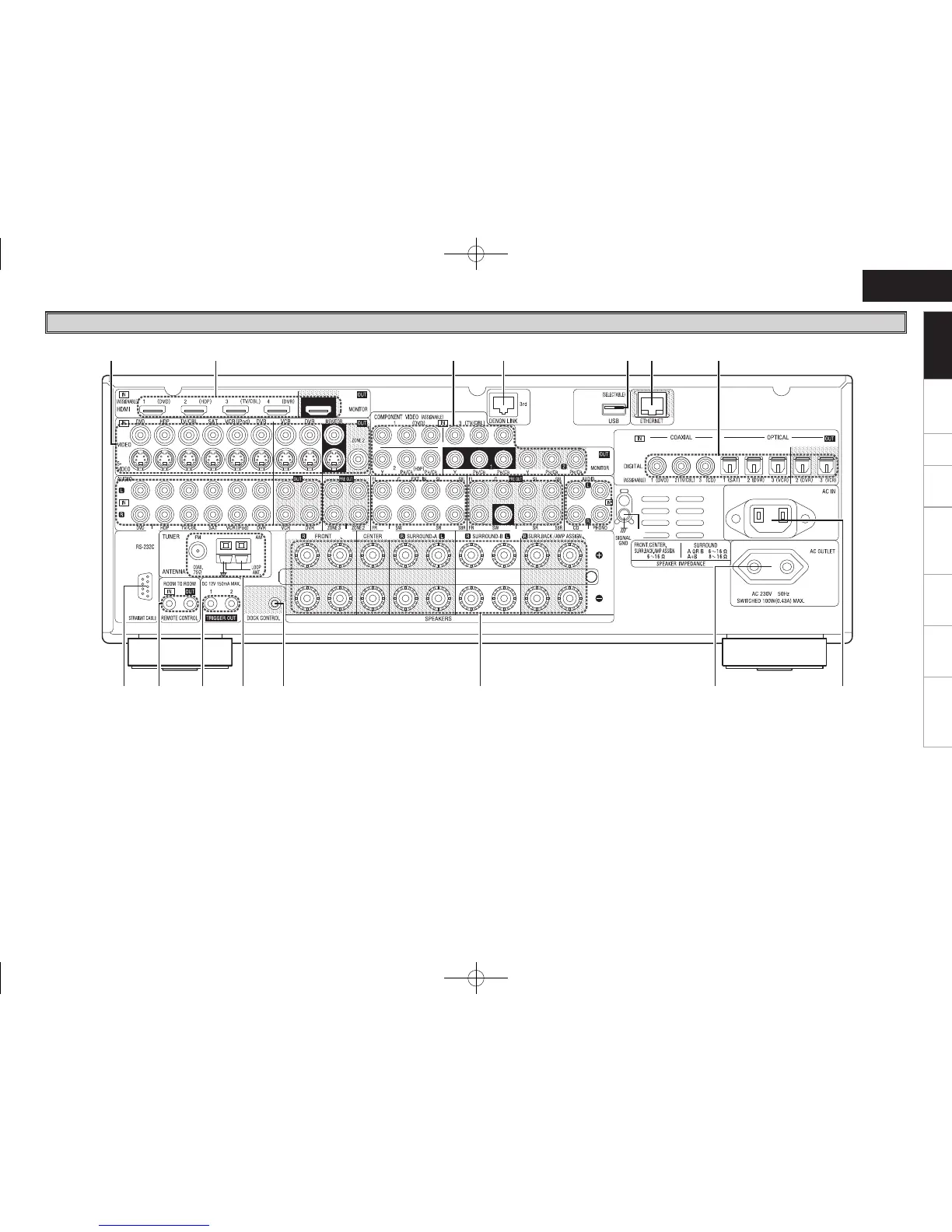

Rear Panel
Getting Started
1.AVR3808E2_ENG_104.indd 9 2007/10/25 15:16:08

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
