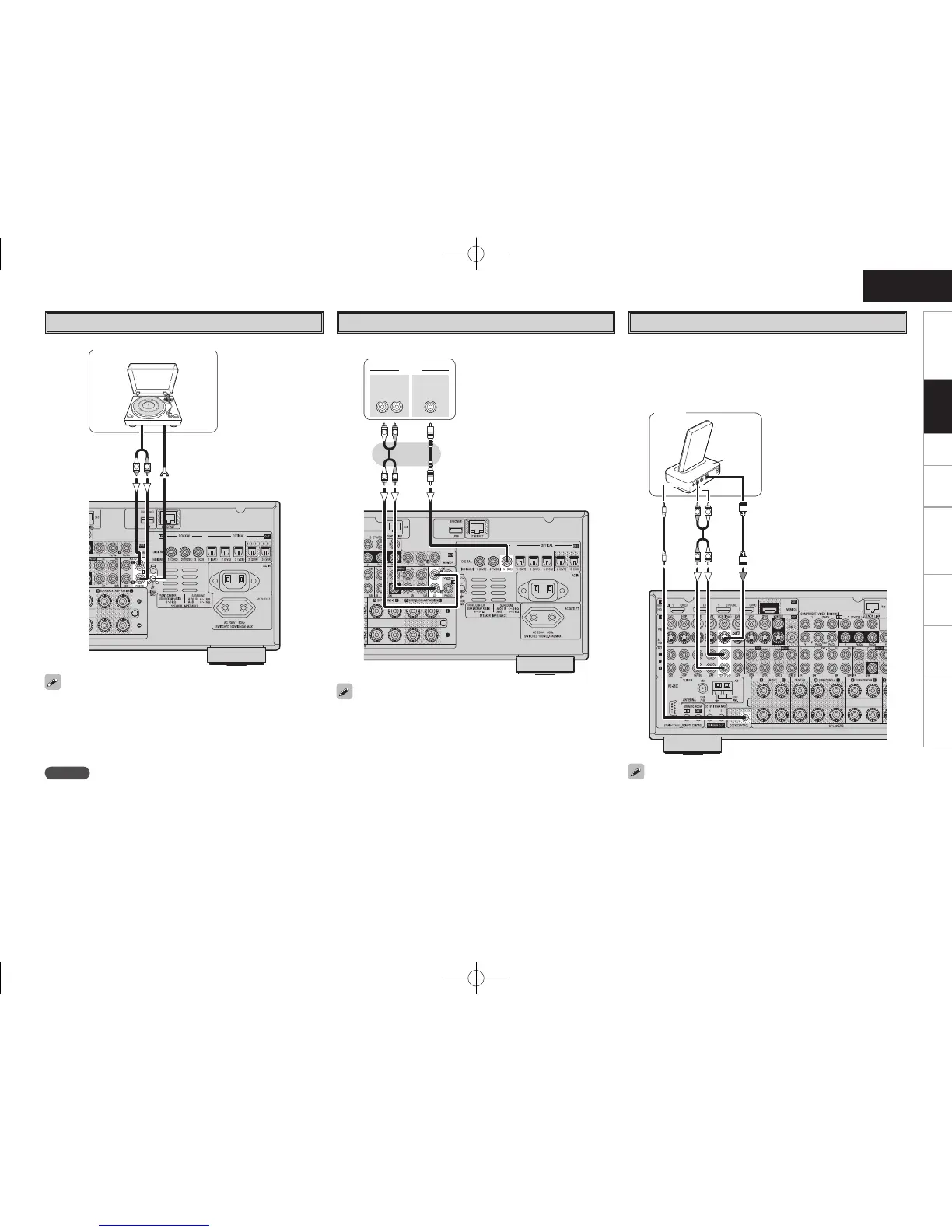

Record Player
• When connecting a record player with an MC cartridge, use a
commercially available MC head amplifier or a step-up transformer.
• Induction humming (a booming sound) may be produced from the
speakers if the volume is raised with no record player connected.
• With some record players, noise may be generated when the ground
wire is connected. If so, disconnect the ground wire.
(/%
"6%*0
065
R
L
Turntable (MM cartridge)
NOTE
The AVR-3808’s SIGNAL GND terminal is meant to reduce noise when
a record player is connected. This is not a safety ground terminal.
"6%*0
"6%*0
$0"9*"-
065
3-
065
R
L
R
L
CD Player
Connect the cables to be used.
CD player
iPod
®
Example :
"4%3
R
L
R
L
iPod
When using an optical cable for the digital audio connection, make the
settings at GUI menu “Source Select” – “CD” – “Assign” – “Digital”
(vpage 39).
• With the default settings, the iPod can be used connected to the VCR
(iPod) connector.
• To assign the iPod to a connector other than VCR (iPod), make the
settings at GUI menu “Source Select” – “(input source to which iPod
dock assigned)” – “Assign” – “iPod dock” (vpage 39).
Use a DENON Control Dock for iPod (ASD-1R, sold separately) to
connect the iPod to the AVR-3808. For instructions on the Control
Dock for iPod settings, refer to the Control Dock for iPod’s operating
instructions.
Connections
