Denon AVR-3808 User Manual


Getting Started Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH

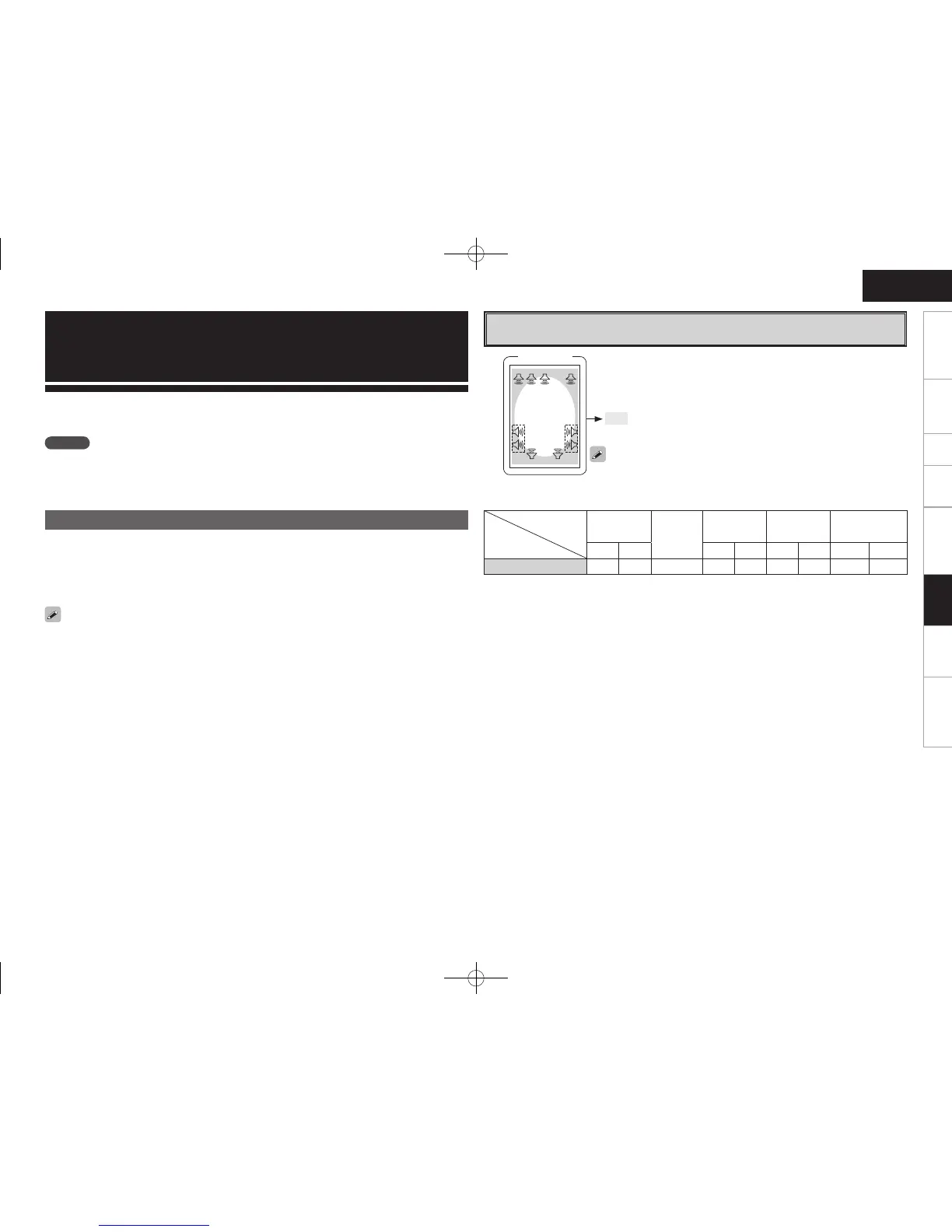

Amp Assign / Multi-Zone Connections and
Operations
The AVR-3808 is compatible with the following types of playback:
• Multi-zone playback (ZONE2 & ZONE3)
• Bi-amp playback (front speaker)
NOTE
• For bi-amp playback, use speakers compatible with that type of connection.
• When conducting bi-amp playback, remove the short-circuiting boards (or wires) from the speaker
terminals.
Multi-Zone Settings with the Amp Assign Function
The amp assign function lets you assign the amplifiers for the different channels built into the AVR-3808 to
the speaker outputs for the different zones.
Select the desired playback environment from among “Setting 1” to “Setting 4”, then set the corresponding
“Amp Assign” mode at GUI menu “Manual Setup” – “Option Setup” – “Amp Assign” (vpage 34).
Connect the speakers as described at “Amp Assign mode settings and speakers connected to the various
speaker terminals”.
“Setting 3” is possible to switch the Amp Assign mode between the 5.1-channel mode and 2-channel
mode without changing the speaker connections.
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR-A SURR-B
SURR. BACK /
AMP ASSIGN
R L R L R L R L
7.1CH FR FL C SR-A SL-A SR-B SL-B SBR SBL
SBL SBR
FL
SW C FR
B
A
SL
B
A
SR
Main zone
7.1ch
Setting 1 :
F 7.1-channel playback
Both A and B can be installed for SR and SL.
n Amp Assign mode setting and speakers connected to the various speaker
terminals
7CH
(Default)
Amp Assign mode:
Multi-Zone
1.AVR3808E2_ENG_104.indd 73 2007/10/25 15:18:12

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
