Surround back speakers
Sound positioning directly to the rear can be achieved easily by adding
a surround back speaker to a 5.1-channel system.
In addition, the acoustic image extending between the sides and the
rear is narrowed, thus greatly improving the expression of the surround
signals for sounds moving from the sides to the back and from the
front to the point directly behind the listening position.
Change of positioning and acoustic image
with 6.1-channel systems
Movement of acoustic image from
SR to SB to SL
In addition to sources recorded in 6.1-channels, the surround effect of
conventional 2- to 5.1-channel sources can also be enhanced.
Number of surround back speakers
We recommend using 2 speakers.
When using dipolar speakers in particular, be sure to use 2 speakers.
Placement of the surround left and right channels
when using surround back speakers
We recommend installing the speakers for the surround “L” and “R”
channels a bit forward.

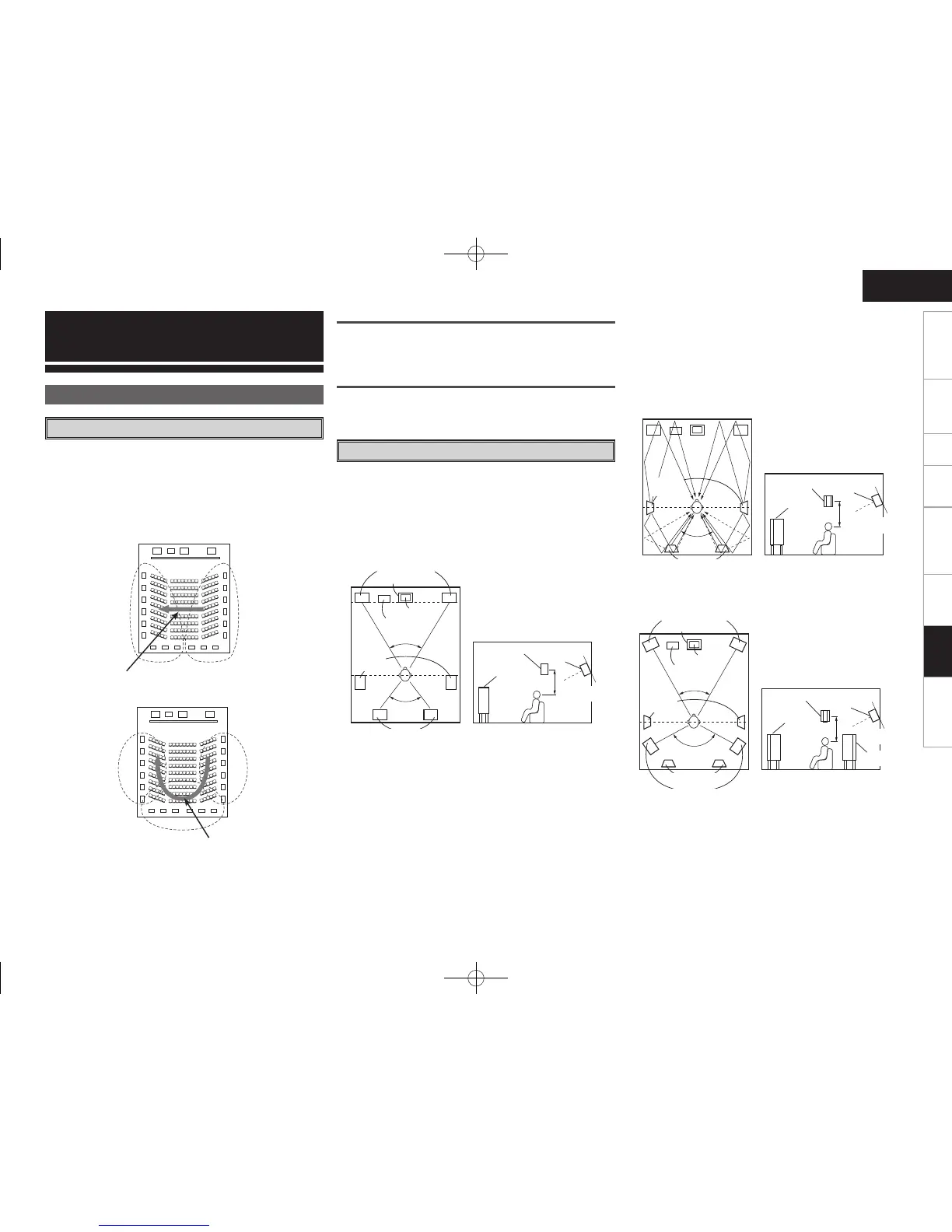

Examples of speaker layouts
Below we introduce examples of speaker layouts. Refer to these to
arrange your speakers according to their type and how you want to
use them.
G1H Using surround back speaker(s)
q When mainly playing movies
Recommended when your surround speakers are single or 2-way
speakers.
Surround back speakers
Subwoofer
Surround
speakers
Monitor
Center speaker
Front speakers
60°
60°
Surround
speaker
Surround back
speaker
Front speaker
Point slightly
downwards
G
As seen from above
H G
As seen from the side
H
60 to 90 cm
Other Information
About Speaker Installation
w Setting for primarily watching movies using diffusion type
speakers for the surround speakers
For the greatest sense of surround sound envelopment, diffuse
radiation speakers such as bipolar types, or dipolar types, provide
a wider dispersion than is possible to obtain from a direct radiating
speaker (monopolar). Place these speakers at either side of the
prime listening position, mounted above ear level.
Surround
speakers
60°
Surround back speakers
Surround
speaker
Surround back
speaker
Front speaker
Point slightly
downwards
60 to 90 cm
G
As seen from above
H G
As seen from the side
H
Path of the surround sound from the
speakers to the listening position
e When playing movies and music
Center speaker
Front speakers
Subwoofer
Monitor
45° ~ 60°
120°
Surround back
speaker
Surround
speaker A
Surround speaker B
Surround
speaker A
Surround back
speaker
Front speaker
Point slightly
downwards
60 to 90 cm
Surround
speaker B
G
As seen from above
H G
As seen from the side
H
