ENGLISH
NOTE
• Insert the AC plugs securely. Incomplete connections could cause noise.
• Only use the AC outlet to plug in audio devices. Do not use them as power supplies for hairdryers or
anything other than audio equipment.
Wait until all connections have been completed before connecting the power cord.
To household
power outlet
(AC 230 V, 50 Hz)
Power cord
(included)
Connection to the AC outlet
• This outlet supply power to external audio
devices.
• The power supplied from these outlets turns on
and off together with the set’s power switch.
• Audio equipment with a total power consumption
of 100 W (0.43 A) can be connected.

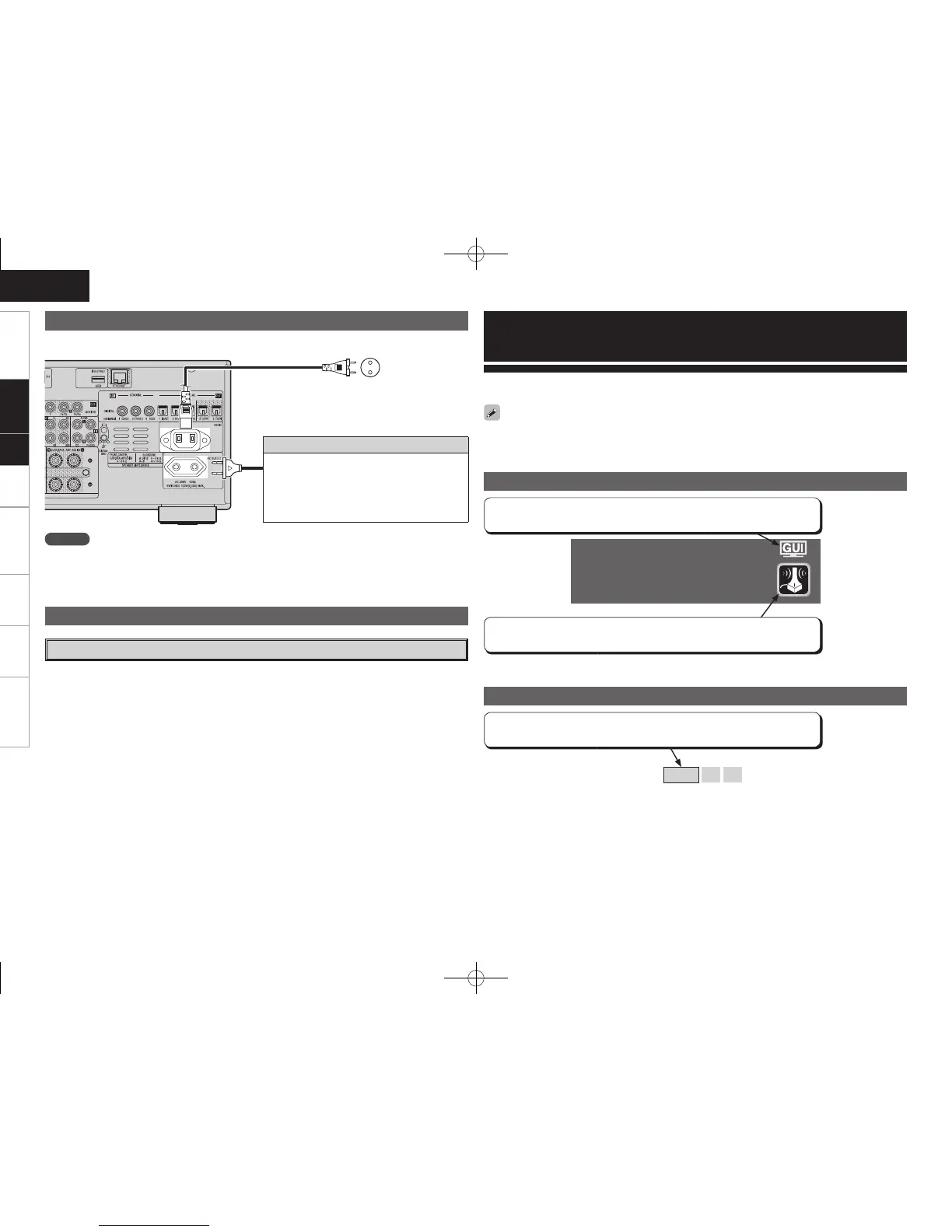

Connecting the Power Cord
Turning the Power On (vpage 47)
Once Connections are Completed
Auto Setup
Optimize settings for speakers in use.
Example of the Display of the GUI Mark at a Title
GUI Menu Operations
With the AVR-3808, settings and operations for most functions can be performed by operating while
looking at the GUI menus displayed on the monitor screen.
Example of Display of Default Values
[Selectable items] 7.1 (B) 7.1 5.1
In lists of selectable items or adjustable ranges, the item surrounded by a border
is the default value.
Items for which this mark is indicated at the title can be operated from the GUI.
We recommend performing such operations from the GUI.
This is the GUI icon for this setting item or for the menu series to which this
item belongs.
The GUI cannot be superimposed when xvYCC signals and component 1080p signal, computer’s resolution
(e.g. VGA) are input.
Connections Setup
1.AVR3808E2_ENG_104.indd 26 2007/10/25 15:16:46

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
