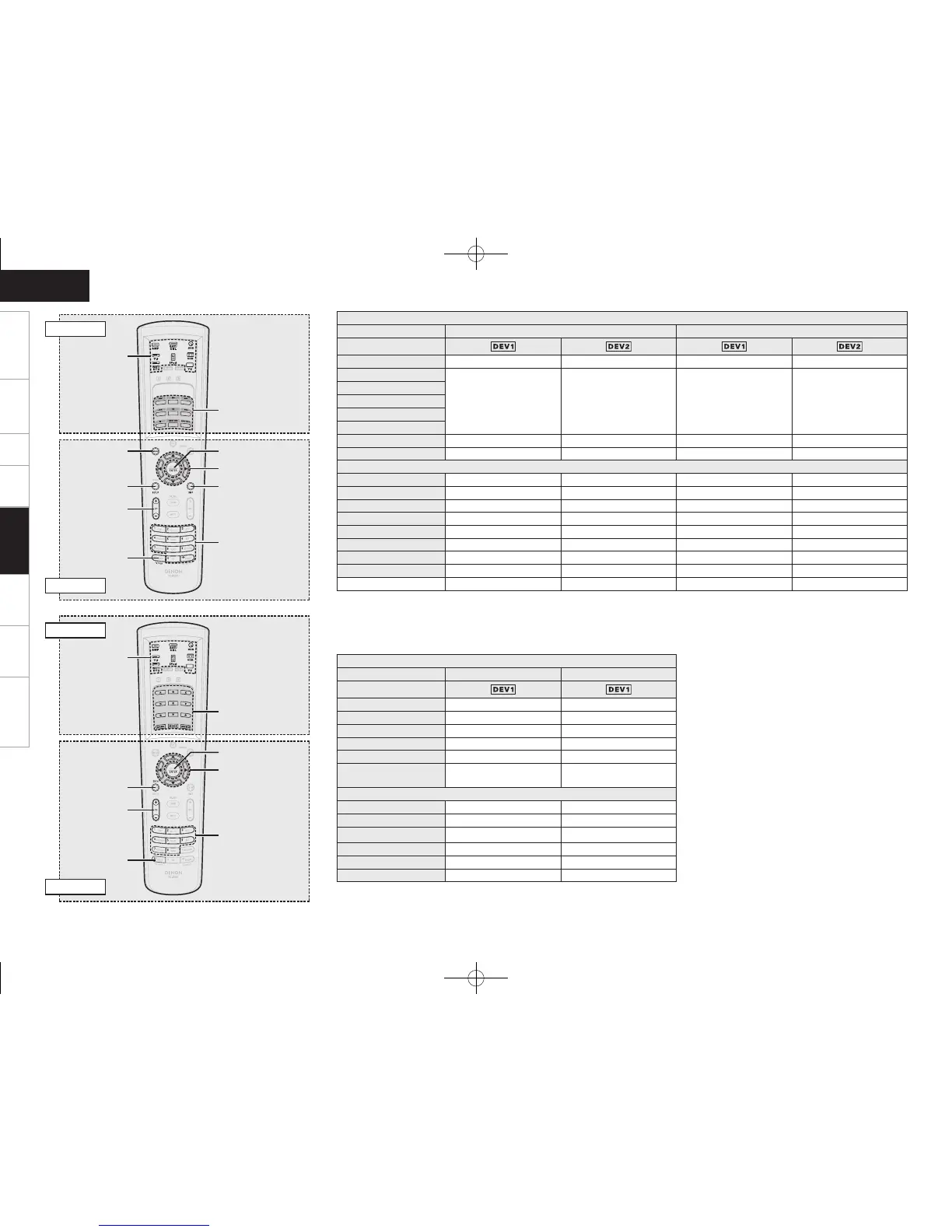

Denon AVR-3808 User Manual


Getting Started Connections Setup Playback Multi-Zone Information Troubleshooting
ENGLISH
[MENU]
[CH +/–]
[TV/VCR]
[ENTER]
[DISPLAY]
[0 ~ 9, +10]
[uiop]
[SETUP]
[1],
[8 9],
[6 7], [3],
[2],
[SOURCE ON],
[SOURCE OFF]
[MODE
SELECTOR]
EL Display
MODE SELECTOR TV Satellite Receiver / Cable TV
Device Mode
Device operated TV (HITACHI) TV (SONY) SAT SAT
1
Punch through Punch through Punch through Punch through
8 9
6 7
3
2
SOURCE ON Power on Power on Power on Power on
SOURCE OFF Power off Power off Power off Power off
Buttons
MENU Menu/guide Menu/guide Menu/guide Menu/guide
u i o p
Cursor Cursor Cursor Cursor
ENTER Enter setting Enter setting Enter setting Enter setting
SETUP Set up Set up Set up Set up
DISPLAY Display Display Display Display
CH + / – Switch channels Switch channels Switch channels Switch channels
0 ~ 9, +10 Channel selection Channel selection Channel selection Channel selection
TV/VCR Switch inputs Switch inputs – –
Special Remarks
q, e q, e q, e q, e
GSpecial RemarksH
q Only one component can be preset for each mode. If a new code is preset, the previous code is automatically cleared.
e The CD, VCR or DVD buttons (one only set) can be assigned to the TV, satellite receiver and cable TV mode (vpage 64 “Punch Through
Function”).
EL Display
Buttons
[CH +/–]
[SEARCH]
[SHIFT]
[A ~ G], [d f],
[BAND],
[MODE],
[MEMO]
[ENTER]
[1 ~ 8]
[uiop]
[MODE
SELECTOR]
EL Display
MODE SELECTOR TU NET / DTU
Device Mode
Device operated Analog tuner NET / USB
A ~ G Preset memory block selection Preset memory block selection
d f
Tuning + / – –
BAND AM/FM switching –
MODE Switch search modes –
MEMO Preset memory registration
Favorites /
Preset memory registration
Buttons
u i o p
– Cursor
ENTER – Enter, Playback/Pause
SEARCH RDS search Search
CH + / – Preset channel selection Preset channel selection
1 ~ 8 Preset channel selection Preset channel selection
SHIFT Switch memory block Switch memory block
EL Display
Buttons
Remote Control
1.AVR3808E2_ENG_104.indd 66 2007/10/25 15:18:07

Denon AVR-3808 Specifications

General

Type	AV Receiver
Channels	7.1
Power Output per Channel	130 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
HDMI Inputs	4
HDMI Outputs	2
Network Connectivity	Ethernet
THD	0.05%
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Coaxial)	2
Preamp Outputs	7.1
Weight	15.5 kg
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Input Sensitivity/Impedance	200 mV / 47 kOhms
Signal-to-Noise Ratio	100 dB
HDMI Version	1.3a
Supported Video Formats	1080p
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio
Multi-room Zones	3
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Analog, Digital Optical, Digital Coaxial
