Desoutter CVIC - Page 55

6159932010-09
55 / 60
English
CVIC-MODCVIC-MULTICVIC
Torque + angle controlled untightening
In addition to monitoring the untightening of the fastener, the system monitors the number of degrees reached while
maintaining a residual torque in the fastener.
The control phase starts IF torque > breakaway torque
The recorded values are the following: final torque and final angle
Spindle stop
IF torque ≤ target torque OR torque > safety torque
OR angle > max. angle
Accept report
IF torque < safety torque
AND min. torque ≤ final torque ≤ max. torque
AND min. angle ≤ final angle ≤ max. angle

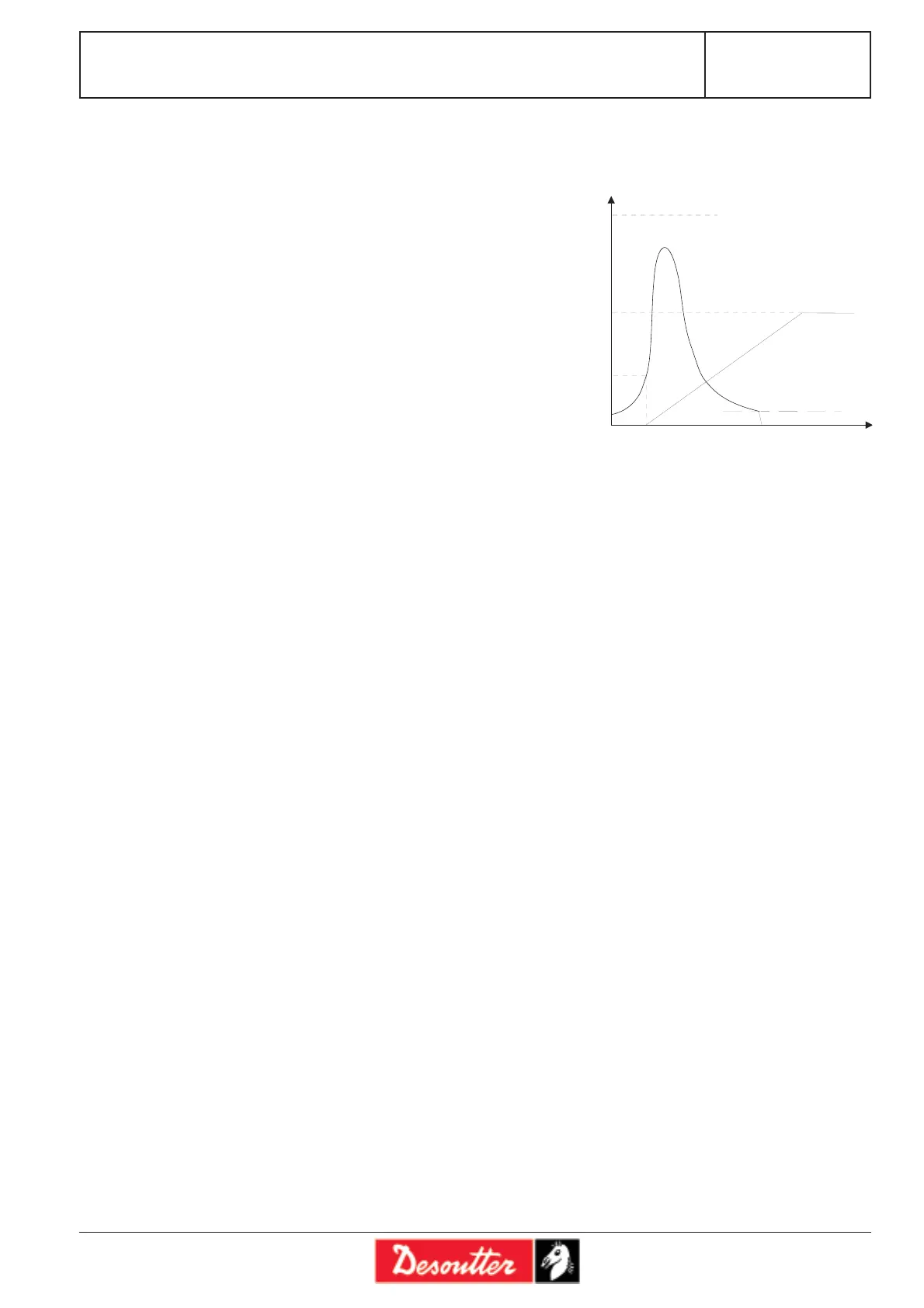

Angle + torque controlled untightening
The recorded values are the following: final torque and final angle
Spindle stop IF angle ≥ target angle OR torque > safety torque
Accept report IF torque < safety torque
AND min. torque ≤ final torque ≤ max. torque
AND min. angle ≤ final angle ≤ max. angle
T i m e
T o r q u e
T a r g e t a n g l e
A n g l e
t h r e s h o l d
S a f e t y t o r q u e
F i n a l a n g l e
F i n a l t o r q u e
