DEWESOFT IOLITE V22-2 User Manual

IOLITE®
TECHNICAL REFERENCE MANUAL
Predefined Levels
0, 2, 4, 8, 16, 44 mA
Accuracy
±0.1 % ±2 μA (<10 mA), ±0.5 % ±5 μA (>10 mA)
Bridge measurement
Bridge Connection Types
full bridge strain, ½ bridge strain, ¼ bridge strain (3-wire)
Ranges
2…1000 mV/V free programmable
Internal Bridge Completion
½ bridge and ¼ bridge 120 and 350 Ω
Bridge Completion Accuracy
0.05 %; TCR: 5 ppm/K (others on request)
Internal Shunt Resistor
100 kΩ (others on request)
Shunt Resistor Accuracy
0.05 %; TCR: 10 ppm/K (others on request)
Input Short, Sensor Offset Adjust
Software-selectable
Additional Specifications
Input connectors
D-SUB9
TEDS support
Standard + DSI adapters
Power supply
9 - 48 V DC
Power Consumption
5.4 W, Max. 11.1 W (7.9 W 120 Ω @ 5 V load, 8.8 W 350 Ω @ 10 V load)
Weight
340 g
Slice Dimensions
128.4 x 115.4 x 30.1 mm

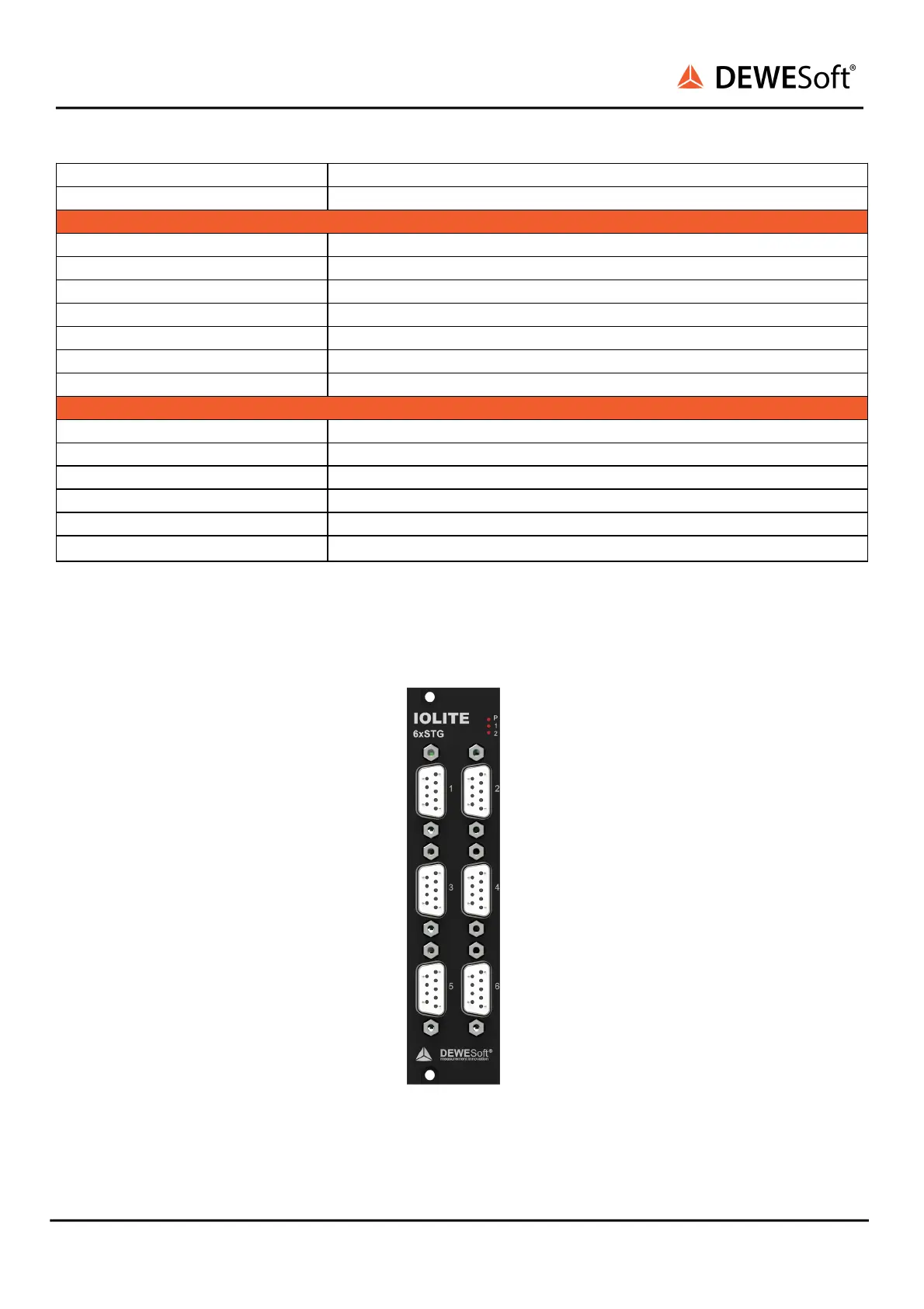

4.3.1.2. IOLITE-6xSTG: D-SUB9 Connector
IOLITE-6xSTG module has 6 standard D-SUB9 female connectors for voltage or strain measurement.
IOLITEr-6xSTG front
IOLITE® V22-2 100 / 193
