IOLITE®
TECHNICAL REFERENCE MANUAL

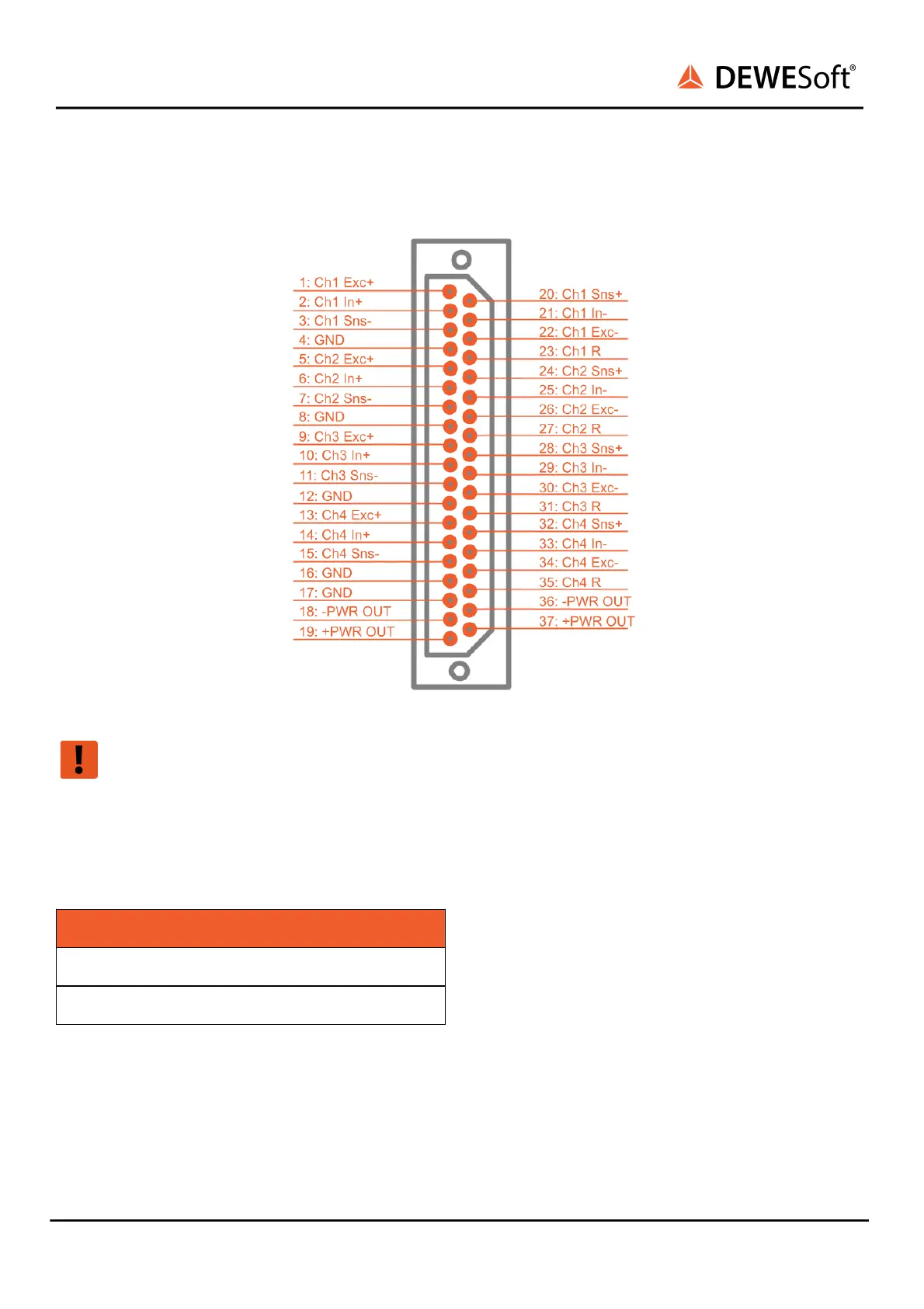

4.3.2.2.2.1. IOLITEr-8xSTGS-D37: D-SUB37 Connector: Pinout
Warning
PWR OUT pins are intended to supply external loads. Do not connect the external power supply
to the PWR OUT pins! It can damage the equipment.
There is no protection on the module. Current limit of the IOLITE system is 16 A!
Incorrect connection can damage the equipment or cause data loss. The connection of PWR
OUT must be made according to the pinout below:
Pin
Name
Description
19, 37
+PWR OUT
V
supply
output
18, 36
-PWR OUT
Non-isolated GND
IOLITE® V22-2 114 / 193
