IOLITE®
TECHNICAL REFERENCE MANUAL

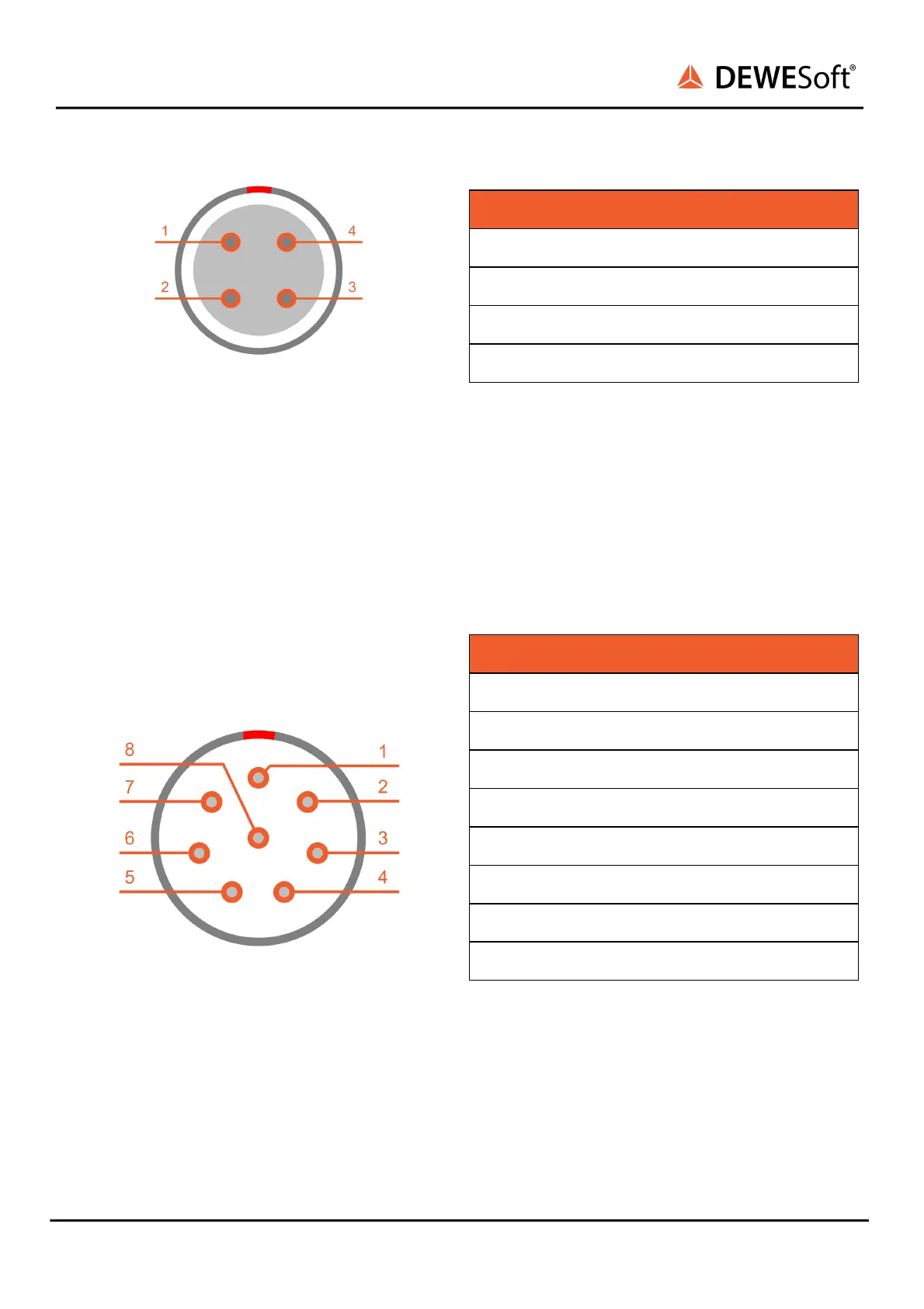

Sync connector: pin-out (4-pin LEMO female)
Pin
Name
Description
1
CLK
Clock
2
TRIG
Trigger
3
RES
PPS
4
GND
Ground
SYNC connector (on the device): XBG.00.304.CLL
Mating connector (for the cable): FGG.00.304.CLAD27Z
3.3.3.3.3. IOLITE-R8r: Ruggedized Boxed Chassis: BUS 1: IN: Pinout
IN connector of primary EtherCAT bus (BUS 1) is a 8-pin LEMO 1B male connector.
EtherCAT connector: pin-out (8-pin LEMO male)
Pin
Name
Description
1
TX_P
Transmission +
2
TX_N
Transmission -
3
RX_P
Reception +
4
RX_N
Reception -
5
VCC
Power IN
6
VCC
Power IN
7
GND
Ground
8
GND
Ground
BUS 1 IN connector (on the device): EEJ.1T.308.CLDY
Mating connector (for the cable): FGJ.1T.308.CLL.1433
IOLITE® V22-2 57 / 193
