4.7.6. IOLITE-4xCNT
IOLITE CNT has 4 channels, each capable of 3x digital inputs, 1x event counter, encoder, period,
pulse-width, duty-cycle, and precise frequency and angle measurement using patented
SUPERCOUNTER® technology.

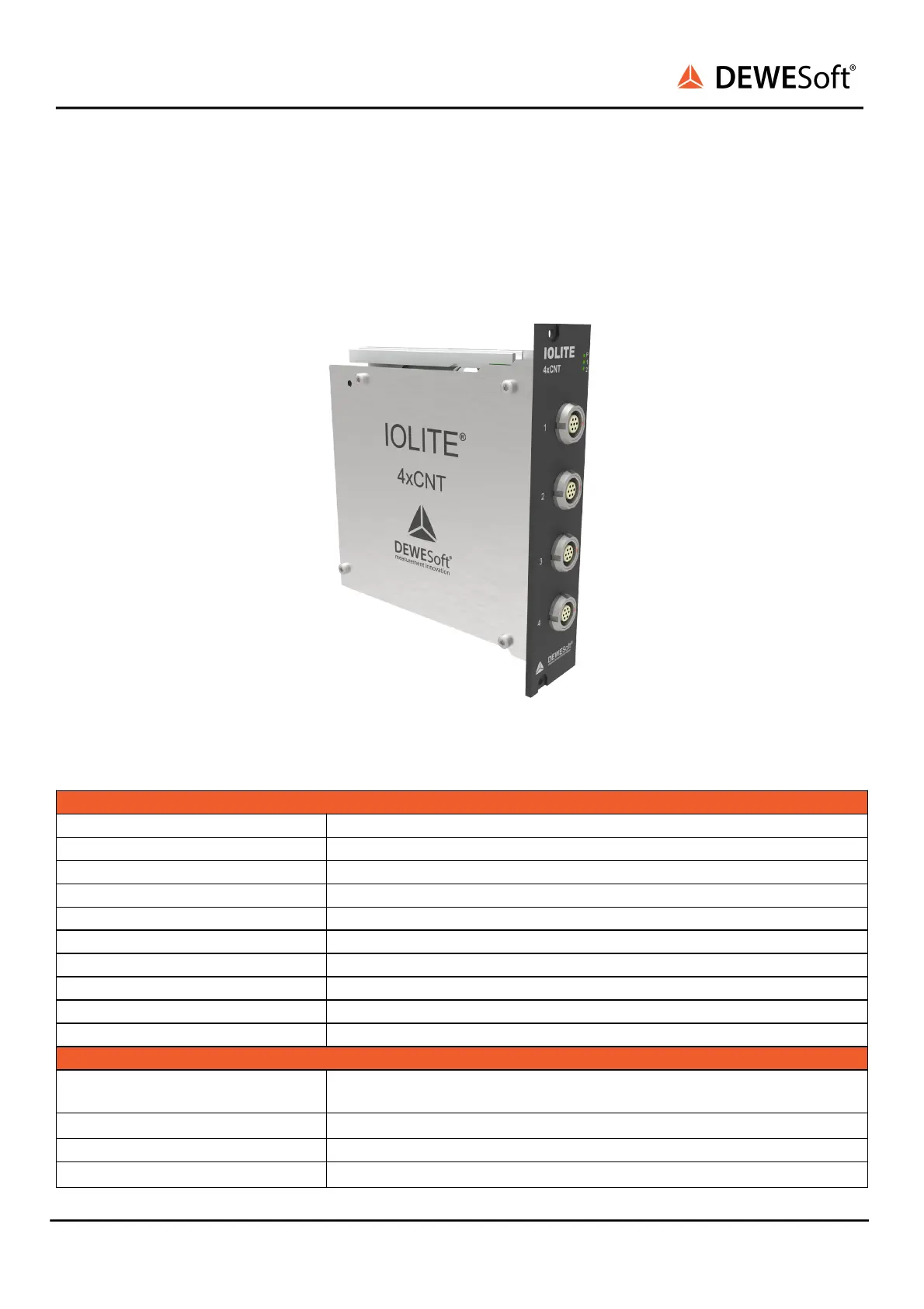

IOLITEr-4xCNT Module
4.7.6.1. IOLITE-4xCNT: Specifications
Counter
Number of channels
4
Timebase
100 MHz
Time base accuracy
Typical: 5 ppm, Max: 20 ppm
Max. bandwidth
10 MHz
Input Filter
500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs
Input Level Compatibility
TTL (Low: <0.8 V, High >2 V)
Input impedance
100 kΩ pull-up to +3.3 V
Input Protection
±25 V continuous
Sensor supply
5 V / 100 mA, 12 V / 50 mA
Counter modes
counting, waveform timing, encoder, gear-tooth sensor
Additional Specifications
Input connector
7-pin LEMO 1B series EEG.1B.307.CLNY
Preliminary: Terminal block OMNIMATE Signal SL Series SL 2.50/09/90G
Power Consumption
Typ. 1.9 W
Power supply
9 - 48 V DC
Slice Dimensions
128.4 x 115.4 x 30.1 mm
