4.3.2.2.1.1. IOLITEr-8xSTGS: T2A9f Connector: Pinout

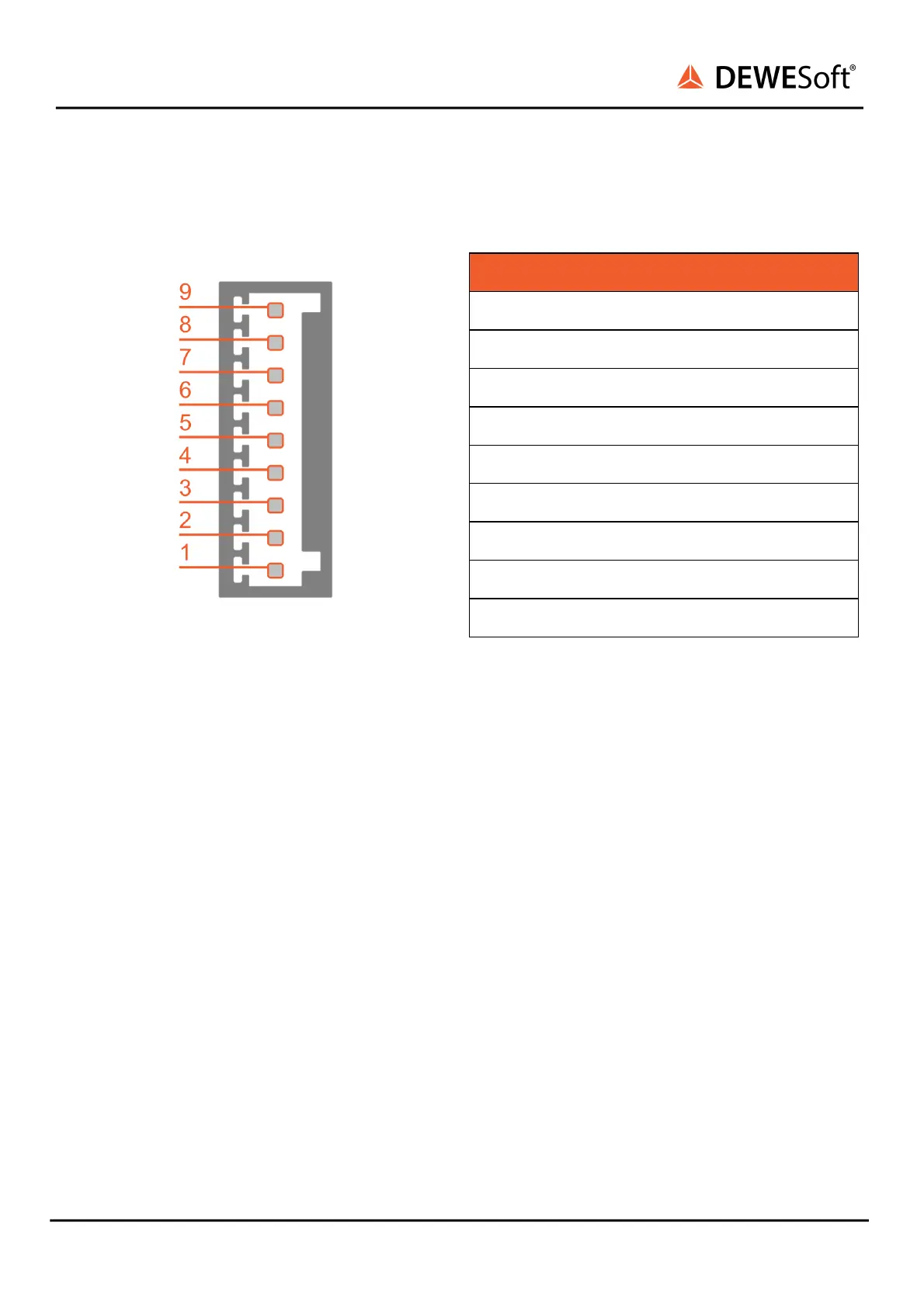

Analog in connector: pin-out (terminal block male)
Pin
Name
Description
9
IN +
Input+
8
IN -
Input-
7
SNS +
Sense+
6
SNS -
Sense-
5
EXC +
Excitation+
4
EXC -
Excitation-
3
GND
Ground
2
R
¼ Bridge / Shunt
1
TEDS
TEDS
AI connector (on the device): OMNIMATE Signal SL 2.50/09/90G
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/09/180
