4.7.1.2. IOLITEr-32xDI: Connectors
IOLITEr-32xDI modules have 9-pin terminal block connectors with 2.50 mm pitch for digital input. 8 pins
on a 9-pin connector bank are used for digital inputs and pin 9 for common GND.
Additionally, there is a 2-pin terminal block connector with a 2.50 mm pitch for PWR OUT function.

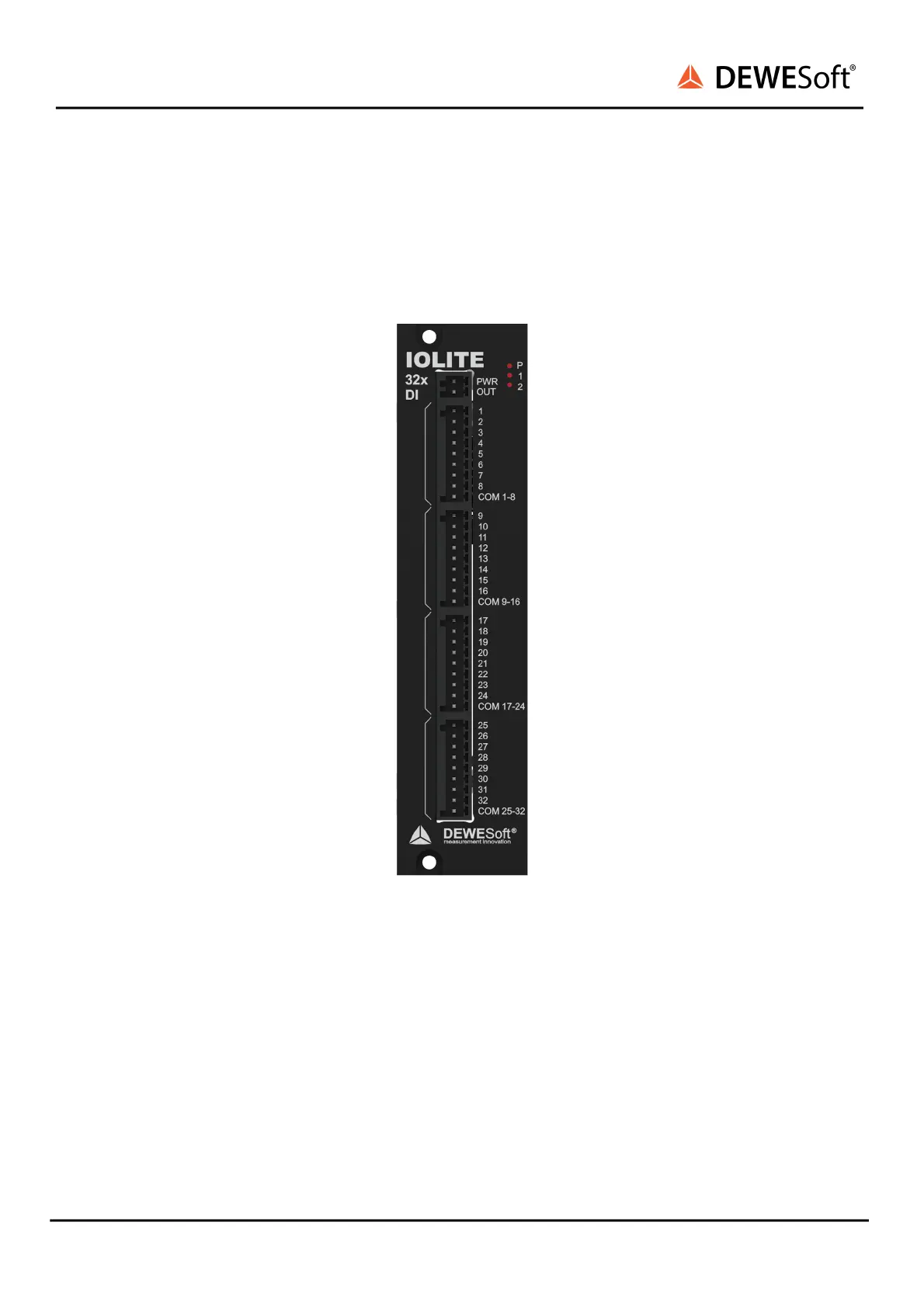

IOLITEr-32xDI front
