3.3.2.5. IOLITE-R8: Boxed Chassis: Connection of IOLITE-R8 and KRYPTON® device
The connection of the IOLITE device to the PC is the same as in 2.3.2.4.
Use EtherCAT to EtherCAT expansion cable (e.g. L1T8m-L1T8f-1M) and connect it to OUT connector on
BUS 1 of IOLITE-R8 on one side and to IN connector of the KRYPTON device on the other side.

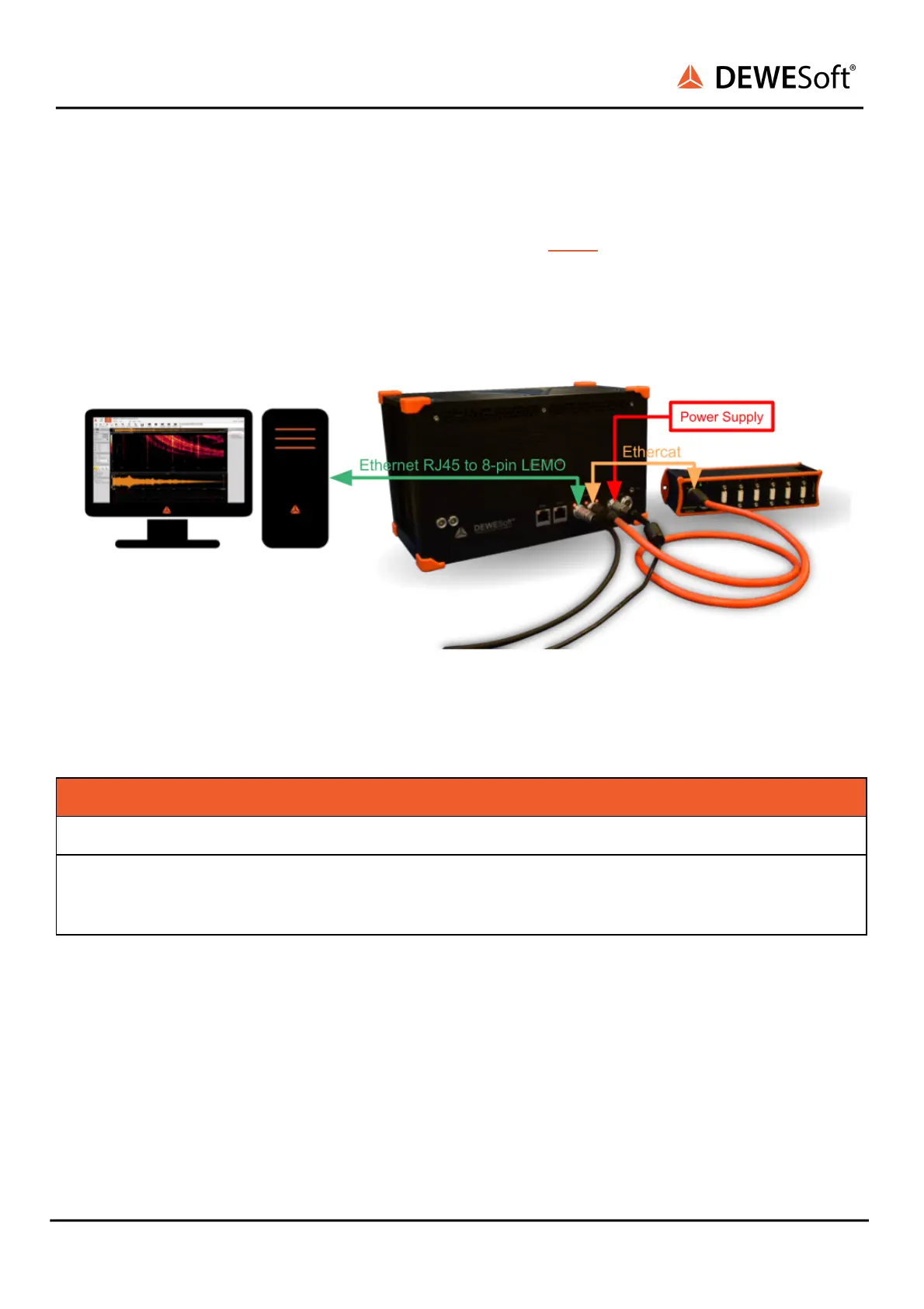

Connection of IOLITE-R8 and KRYPTON® device
List of required cables:
Function
Dewesoft order code
Power supply
PS-120-L1B2f (default)
EtherCAT
IOLITE to PC: L1T8f-RJ45-1M (default), L1T8f-RJ45-3M, L1T8f-RJ45-5M
IOLITE to KRYPTON: L1T8m-L1T8f-02M, L1T8m-L1T8f-0.4M,
L1T8m-L1T8f-1M, L1T8m-L1T8f-2.5M
