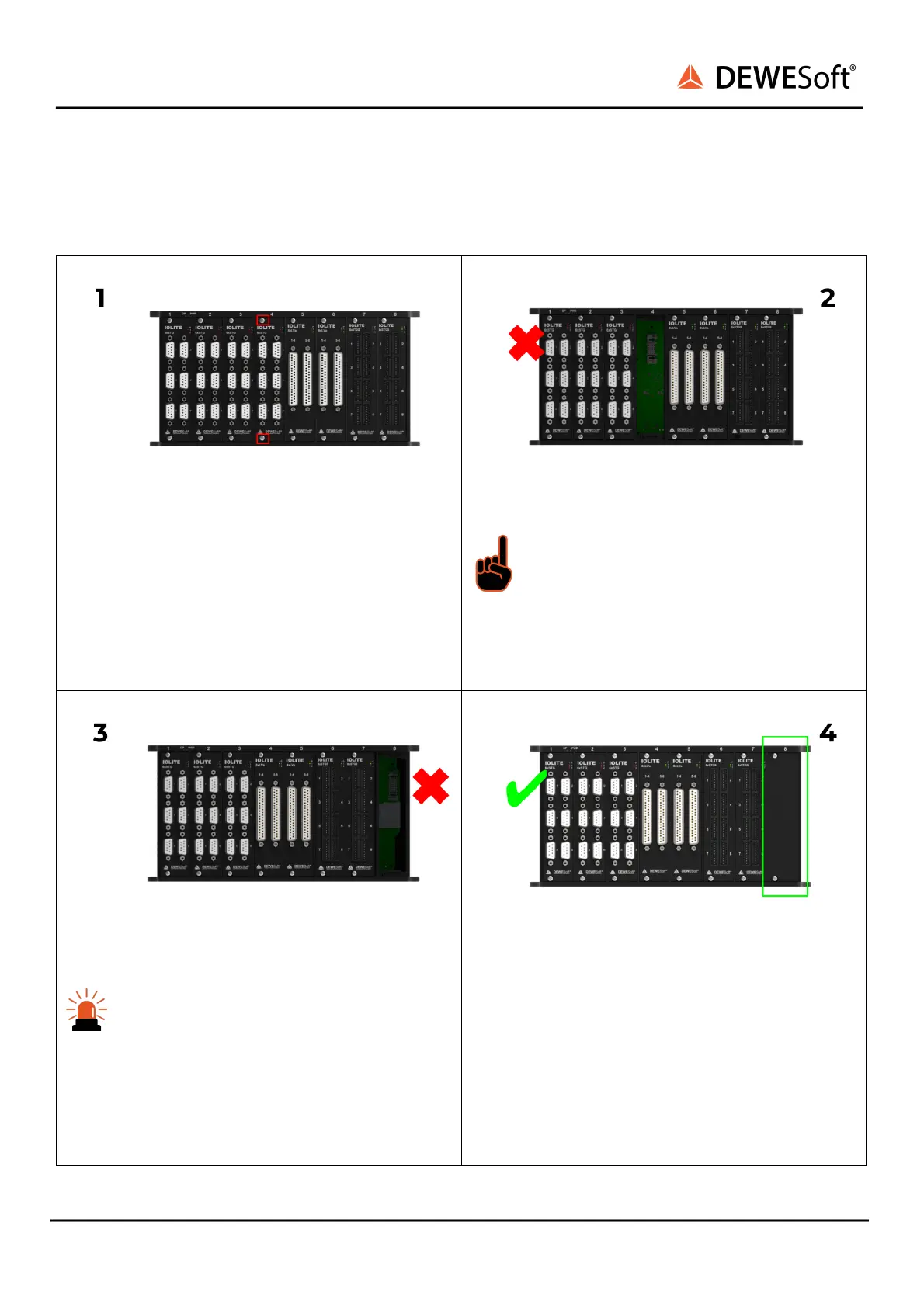

3.3.4.2. IOLITEr slices: Removing the slice - Instructions
Turn off the device!
Unscrew two M2.5x5 TRX panhead screws.
Remove the IOLITEr slice.
Important
By removing the IOLITEr slice the
EtherCAT chain gets broken. IOLITEr slices
right to the removed IOLITEr slice will not
be detected.
Shift the IOLITEr slices in a way that the EtherCAT
chain is not broken.
Caution
By removing the IOLITEr slice the empty
slot is exposed. Unwanted parts or larger
objects can get into the chassis causing
permanent damage of the equipment.
Use front ALU cover to close the empty
slot.
Cover the empty slot with front ALU cover.
Screw two M2.5x5 TRX panhead screws.
You are ready to measure!
