4.1.2.2.2.1. IOLITEi-8xLV-10V-T2A2f: T2A2f Connector: Pin out
LV connector: pin-out (TBLOCK male)
Pin
Name
Description
1
IN+
Analog input +
2
IN-
Analog input -
Connector (on the device): OMNIMATE Signal SL 2.50/02/180G 3.2SN BK BX
Mating connector (for the cable): OMNIMATE Signal BLF 2.50/02/180

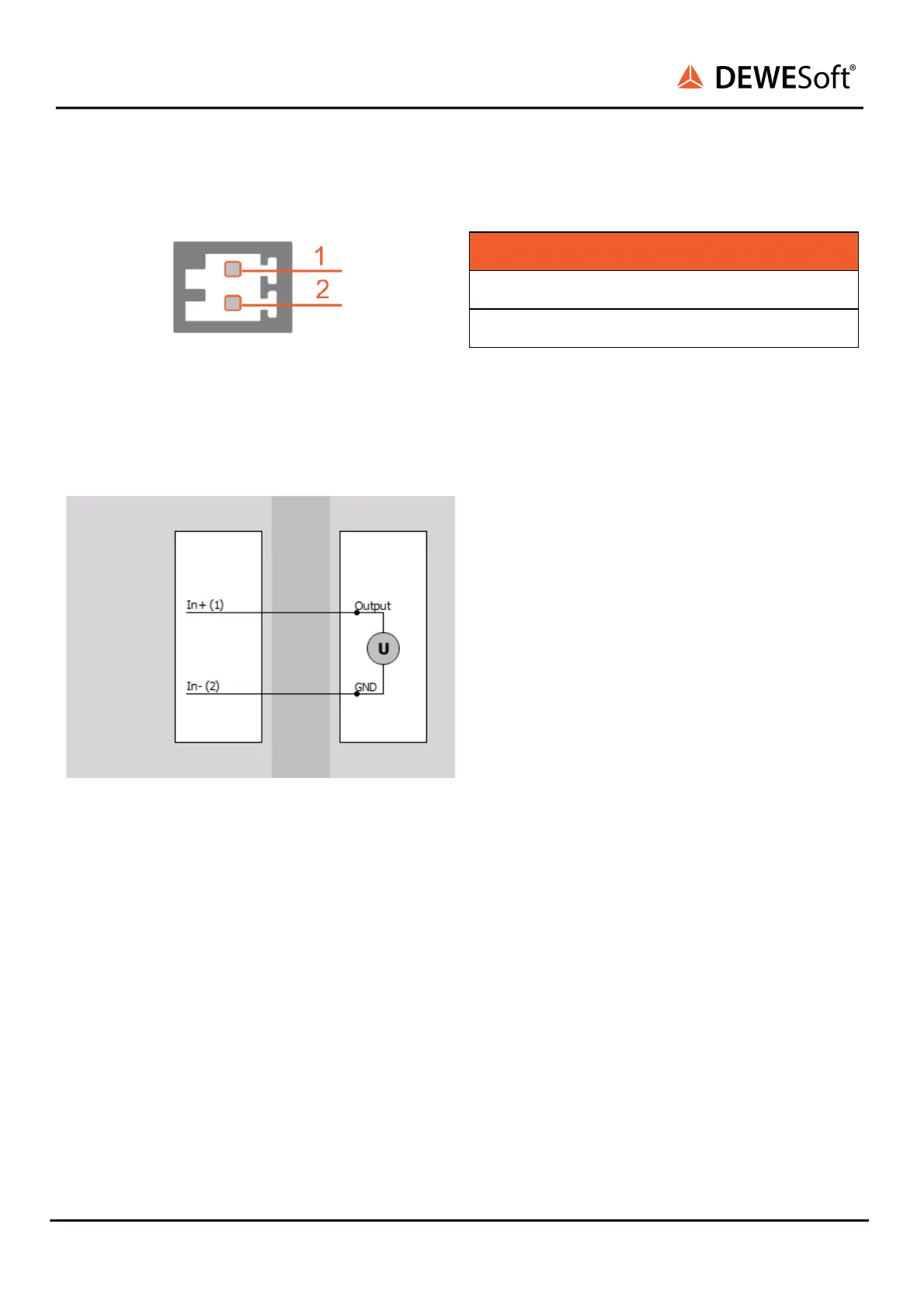

4.1.2.2.2.2. IOLITEi-8xLV-10V-T2A2f: T2A2f Connector: Wiring diagram
Voltage
