IOLITE®
TECHNICAL REFERENCE MANUAL
4.3.2. IOLITEr-8xSTGS / IOLITEr-8xSTGS-D37
IOLITE-8xSTGS is an 8-channel module dedicated for strain measurement supporting inputs for Full, Half
and Quarter bridge configuration. STGS module is available with terminal block input connectors and
optionally with D-SUB37 input connectors.

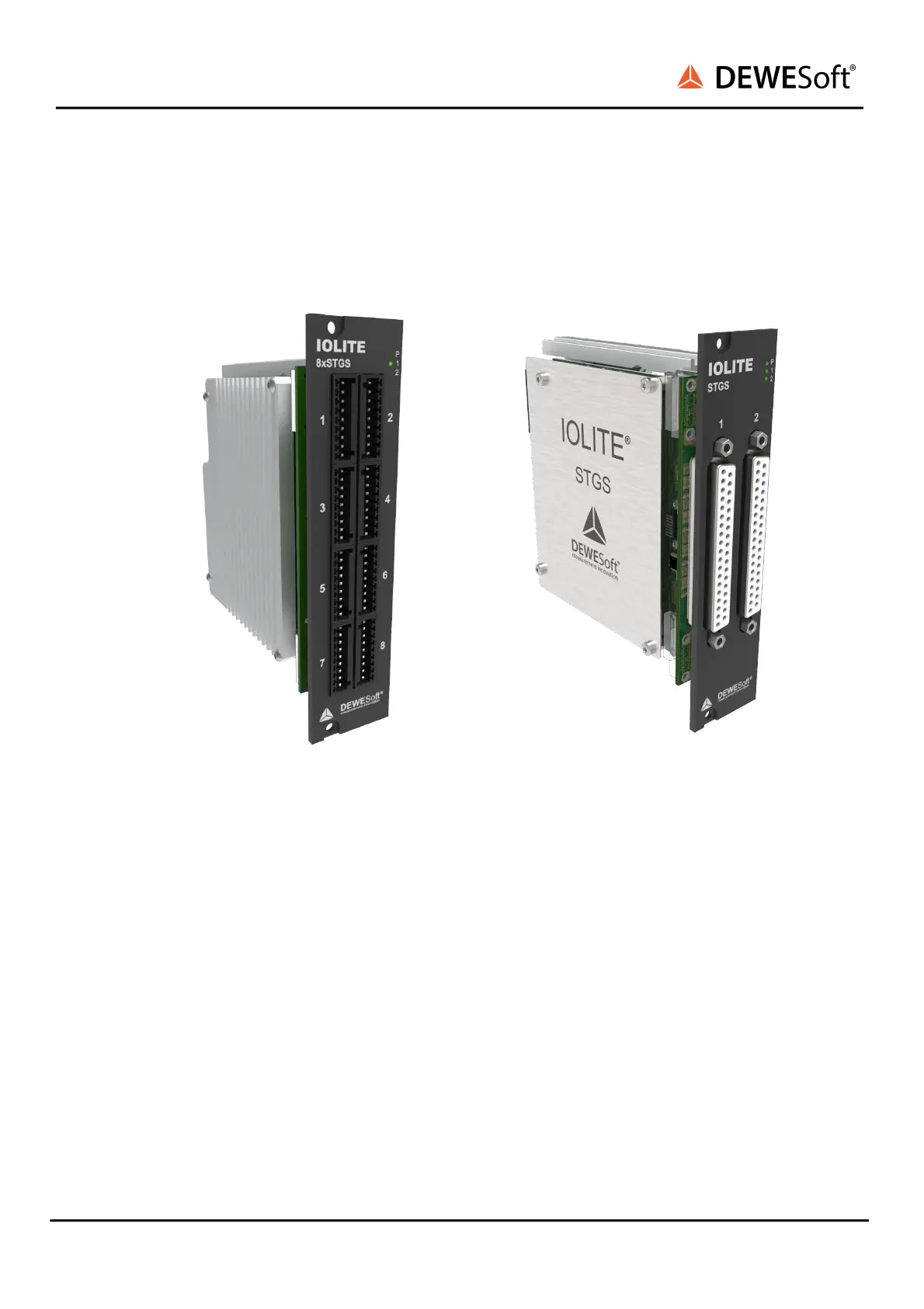

IOLITEr-8xSTGS (left) and IOLITEr-8xSTGS-D37 (right) module
IOLITE® V22-2 106 / 193
