IOLITE®
TECHNICAL REFERENCE MANUAL

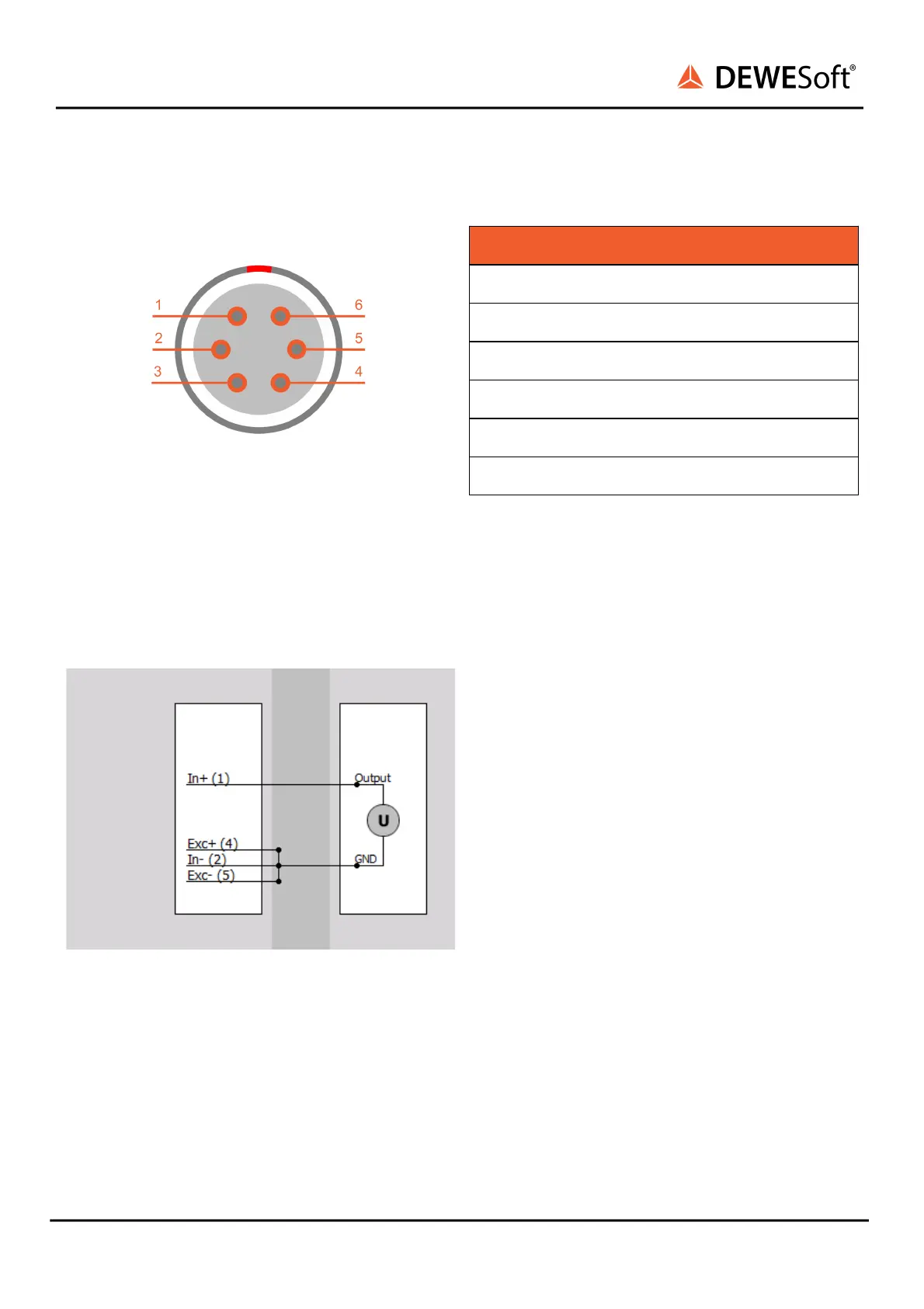

4.4.4.2.1.1. IOLITEi-8xRTD-HS: LEMO L0B6f Connector: Pinout
IOLITEi-8xRTD-HS connector: pin-out (6-pin LEMO female)
Pin
Name
Description
1
In+
Input+
2
In-
Input-
3
NC
Do not connect
4
Exc+
Excitation+
5
Exc-
Excitation-
6
NC
Do not connect
RTD connector (on the device): EEA.0B.306.CLN
Mating connector (for the cable): FGA.0B.306.CLAD22Z
4.4.4.2.1.2. IOLITEi-8xRTD-HS: LEMO L0B6f Connector: Wiring diagram
Voltage
IOLITE® V22-2 144 / 193
