IOLITE®
TECHNICAL REFERENCE MANUAL

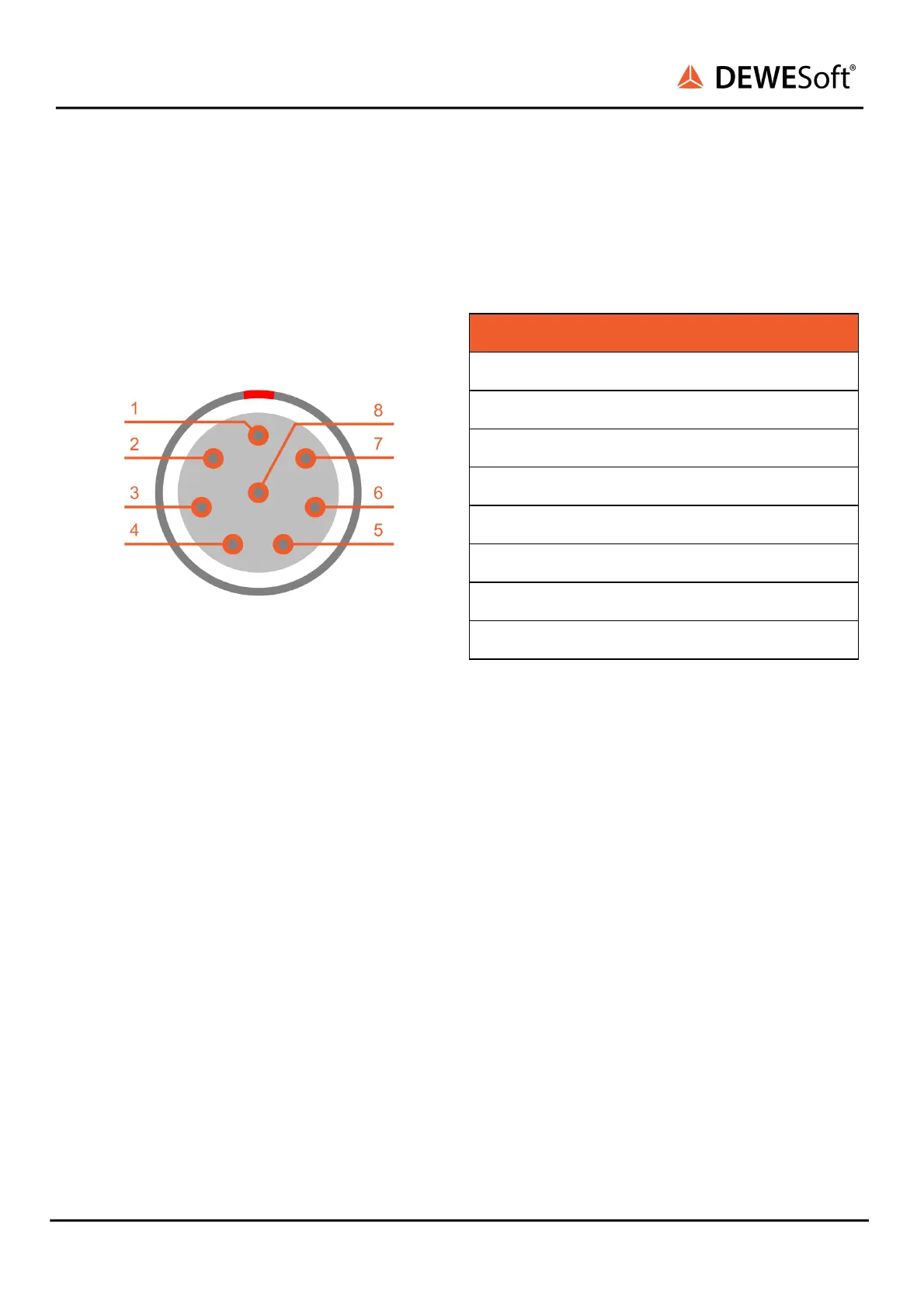

3.3.2.3.4. IOLITE-R8: Boxed Chassis: BUS 1: OUT: Pinout
The OUT connector of the primary EtherCAT bus (BUS 1) is a 8-pin LEMO 1B female connector.
OUT connector enables power supply for external Dewesoft EtherCAT devices.
EtherCAT connector: pin-out (8-pin LEMO female)
Pin
Name
Description
1
TX_P
Transmission +
2
TX_N
Transmission -
3
RX_P
Reception +
4
RX_N
Reception -
5
VCC
Power OUT
6
VCC
Power OUT
7
GND
Ground
8
GND
Ground
BUS 1 OUT connector (on the device): EEG.1B.308.CLN
Mating connector (for the cable): FGG.1T.308.CLA.1433
IOLITE® V22-2 47 / 193
