Diamond Systems JACKSON - Power in (J2;J3)

Jackson User Manual rev 2.2 www.diamondsystems.com Page 23

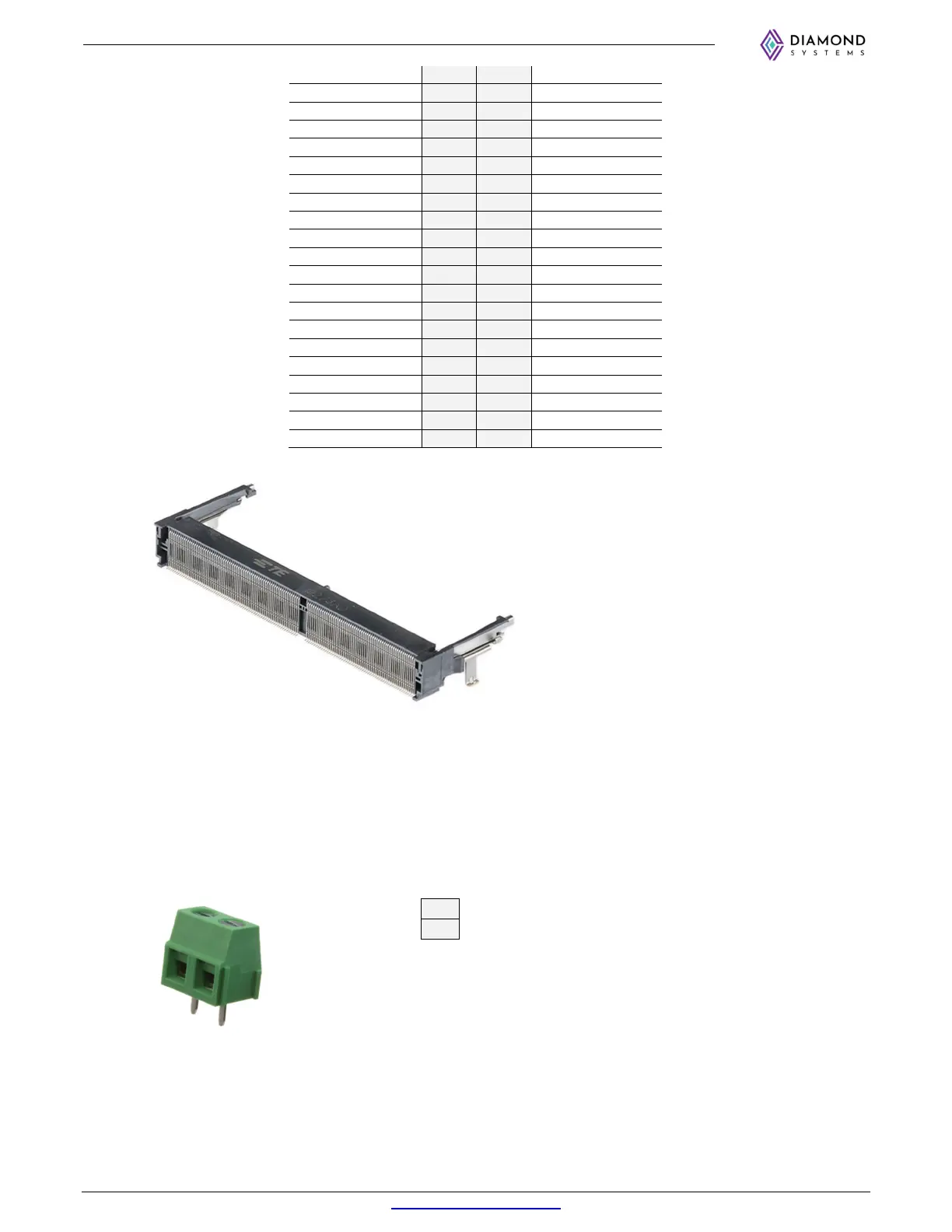

Connector manufacturer / PN: TE / 2309413-1
Connector Type: SODIMM 260P 9.2H STD
7.2 Power In (J2/J3)
The pinouts for power input are as shown below:
1 VIN
2 GND
VIN = +7V to +20V
Connector manufacturer / PN: Adam Tech / EB21A-02-D
Connector Type: Screw terminal block, fixed, elevator style contacts, 2 positions
PCIE2_RST*
219 220
I2S1_DOUT
PCIE2_CLKREQ*
221 222
I2S1_DIN
PCIE3_RST*
223 224
I2S1_FS
PCIE3_CLKREQ*
225 226
I2S1_SCLK
PCIE3_CLK_N
227 228
GPIO13
PCIE3_CLK_P
229 230
GPIO14
GND
231 232
I2C2_SCL
SHUTDOWN_REQ*
233 234
I2C2_SDA
PMIC_BBAT
235 236
UART2_TXD
POWER_EN
237 238
UART2_RXD
SYS_RESET*
239 240
SLEEP/WAKE*
GND
241 242
GND
GND
243 244
GND
GND
245 246
GND
GND
247 248
GND
GND
249 250
GND
VDD
251 252
VDD
VDD
253 254
VDD
VDD
255 256
VDD
VDD
257 258
VDD
VDD 259 260 VDD
