13.2 Allied Vision camera adapter board
This adapter supports two Allied vision dual-lane CSI cameras. It can also be used with any other CSI cameras
that support same pinout as mentioned in below table.
1 GND_AL
2 AL_CSI0_D0_P
3 AL_CSI0_D0_N
4 GND_AL
5 AL_CSI0_D1_P
6 AL_CSI0_D1_N
7 GND_AL
8 AL_CSI0_CLK_P
9 AL_CSI0_CLK_N
10 GND_AL
11 AL_CSI0_D2_P
12 AL_CSI0_D2_N
13 GND_AL
14 AL_CSI0_D3_P
15 AL_CSI0_D3_N
16 V_5P0_AL
17 AL_CAM_GPIO2_3P3
18 AL_CAM_GPIO1_3P3
19 V_5P0_AL
20 AL_CAM1_I2C_SDA_3P3
21 AL_CAM1_I2C_SCL_3P3
22 V_5P0_AL

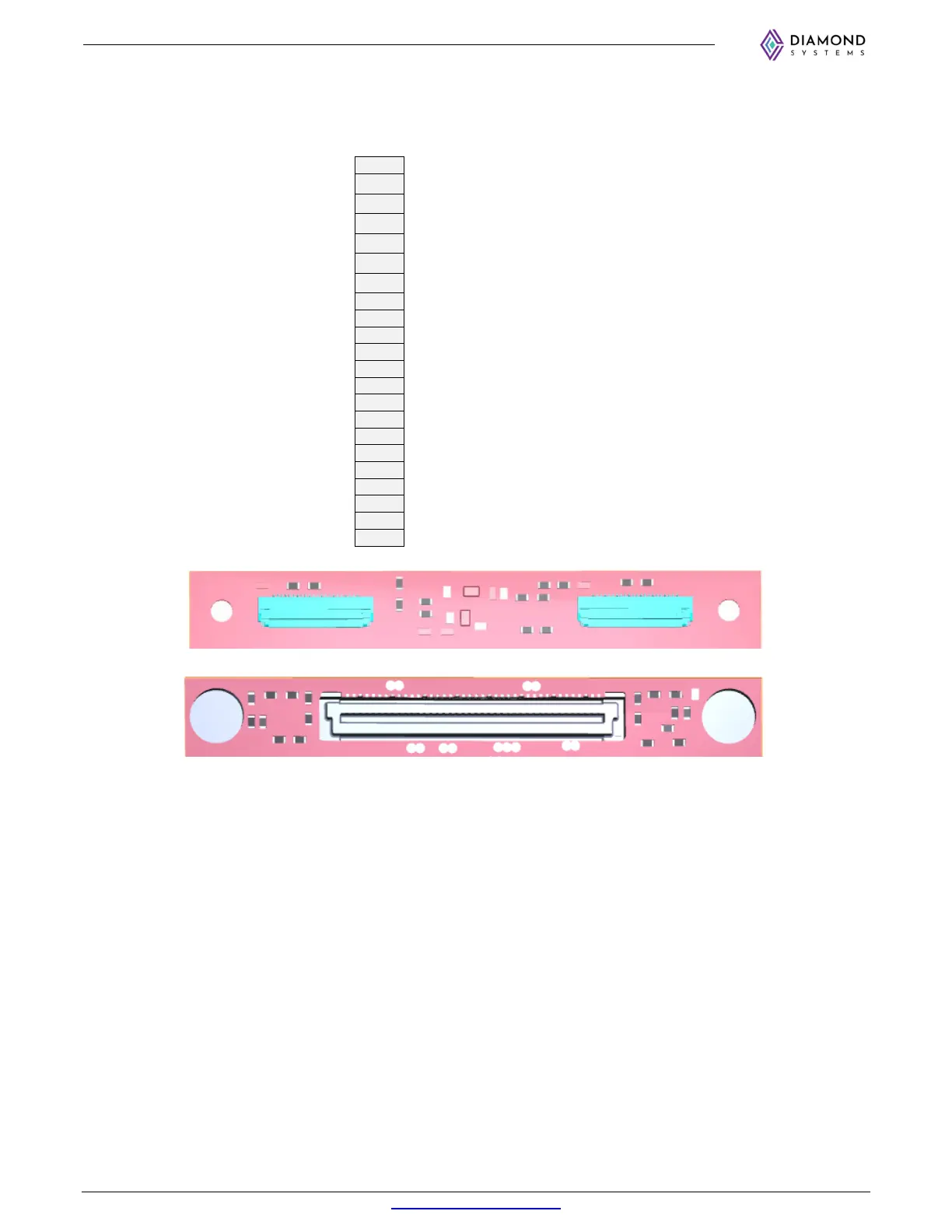

Top View with two camera connectors (J3 and J4)
Bottom View with B2B connector (J1)
