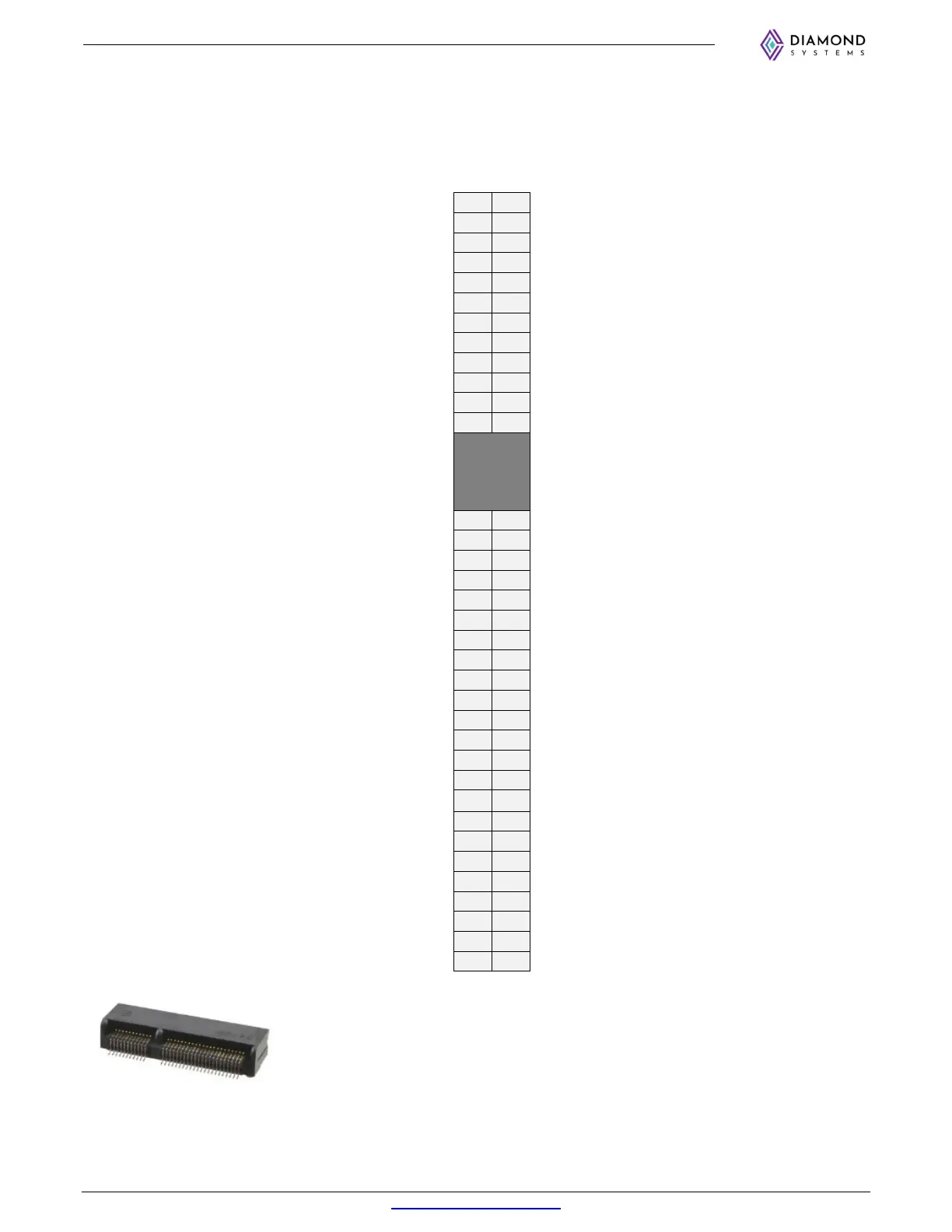

7.13 M.2 E-Key (J17)
An M.2 E-Key connector is provided with x1 PCIe and x1 USB2.0. All TX/RX signals are with respect to the
Module. TX on the socket drives RX on the installed module, and RX on the socket is driven by TX on the
installed module. One mounting standoff is used at the far end of the module installation site. This standoff is not
connected to ground.
GND 1 2 V_3P3
USB2_AP_P 3 4 V_3P3
USB2_AP_N 5 6 NC
GND 7 8 NC
NC 9 10 NC
NC 11 12 NC
NC 13 14 NC
NC 15 16 NC
NC 17 18 GND
NC 19 20 NC
NC 21 22 NC
NC 23 32 NC
KEY
GND 33 34 NC
PCIE1_M2_TX0_P 35 36 NC
PCIE1_M2_TX0_N 37 38 NC
GND 39 40 NC
PCIE1_RX0_P 41 42 NC
PCIE1_RX0_N 43 44 NC
GND 45 46 NC
PCIE1_CLK_P 47 48 NC
PCIE1_CLK_N 49 50 M2E_SUSCLK_32KHZ
GND 51 52 PCIE1_RST
PCIE1_CLKREQ 53 54 W_DISABLE2
PCIE_WAKE 55 56 W_DISABLE1
GND 57 58 I2C2_M2E_SDA
NC 59 60 I2C2_M2E_SCL
NC
61 62
NC
GND 63 64 NC
NC 65 66 NC
NC 67 68 NC
GND 69 70 NC
NC 71 72 V_3P3
NC 73 74 V_3P3
GND 75 76 GND
GND 77
Connector PN: 2199230-4
Connector Type: E-Key
