7.17 USB 2.0 (J21)

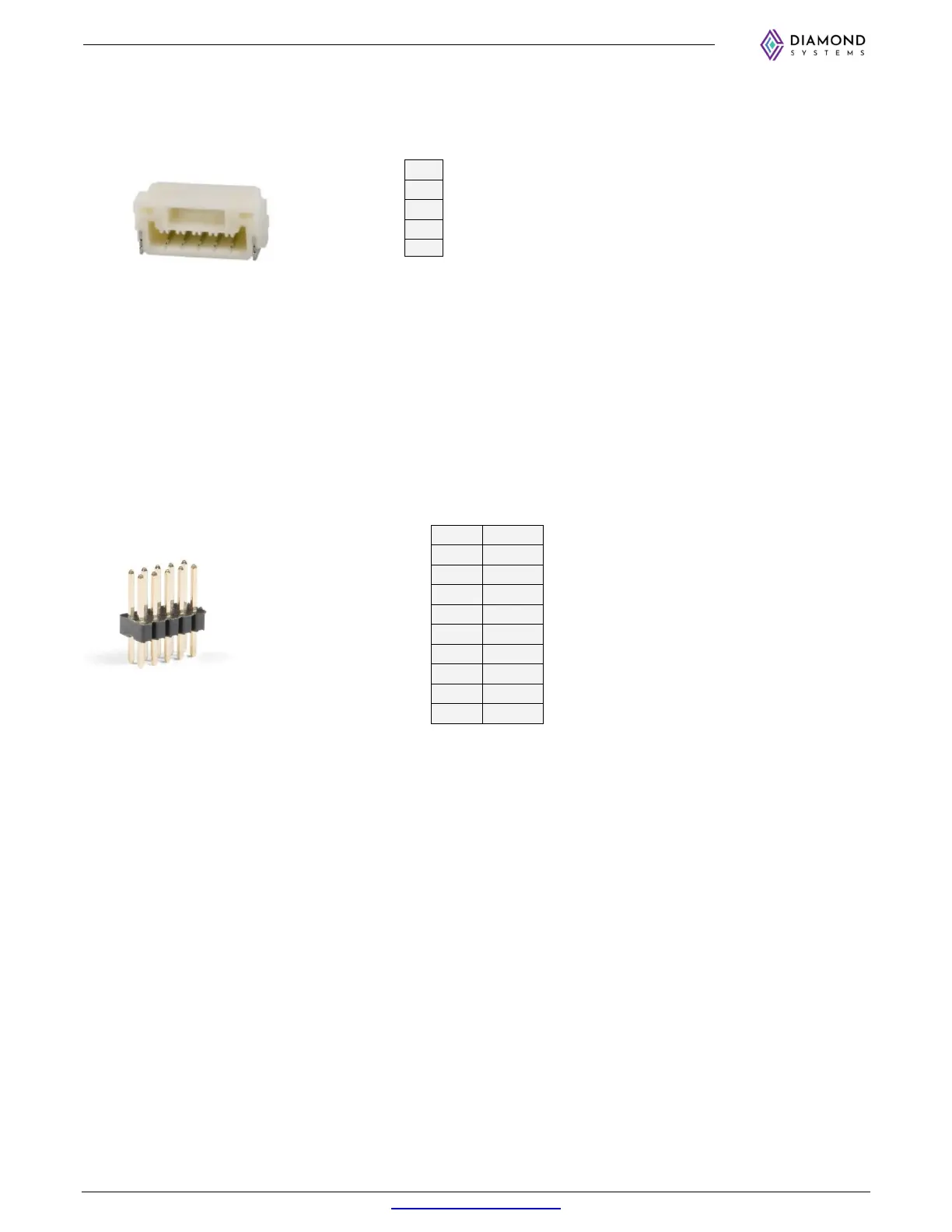

One USB2.0 port from the USB2.0 hub is available at RA 1x5 pin SMD header (J21) and follows the below pinout:
1
USB_PWR
2
USB2_D-
3
USB2_D+
4
GND
5 NC
J21 Connector PN: SM05B-GHS-TB(LF)(SN)

Connector Type: 1x5 1.25mm pitch SMD
Mating Cable PN:
6980504
7.18 Utility (J13)
The base board provides access to a few housekeeping signals on a 2x10 header. The connector pinouts are as
follows:
+3P3
1 2
+5P0
Force Off 5P0
3 4
SPI SS 3P3
Force Recovery 1P8
5 6
SPI MISO 3P3
Power Button 5P0
7 8
SPI CLK 3P3
Reset 1P8
9 10
SPI MOSI 3P3
GND
11 12
GND
Debug UART RX 3P3
13 14
I2C CLK 3P3
Debug UART TX 3P3
15 16
I2C DATA 3P3
GND
17 18
GND
GND
19 20
GND
Connector PN: 0877582016
Connector Type: 2x10, 2mm Header
Cable PN: C-20MM-18
