11.1.3 Assembly Instructions

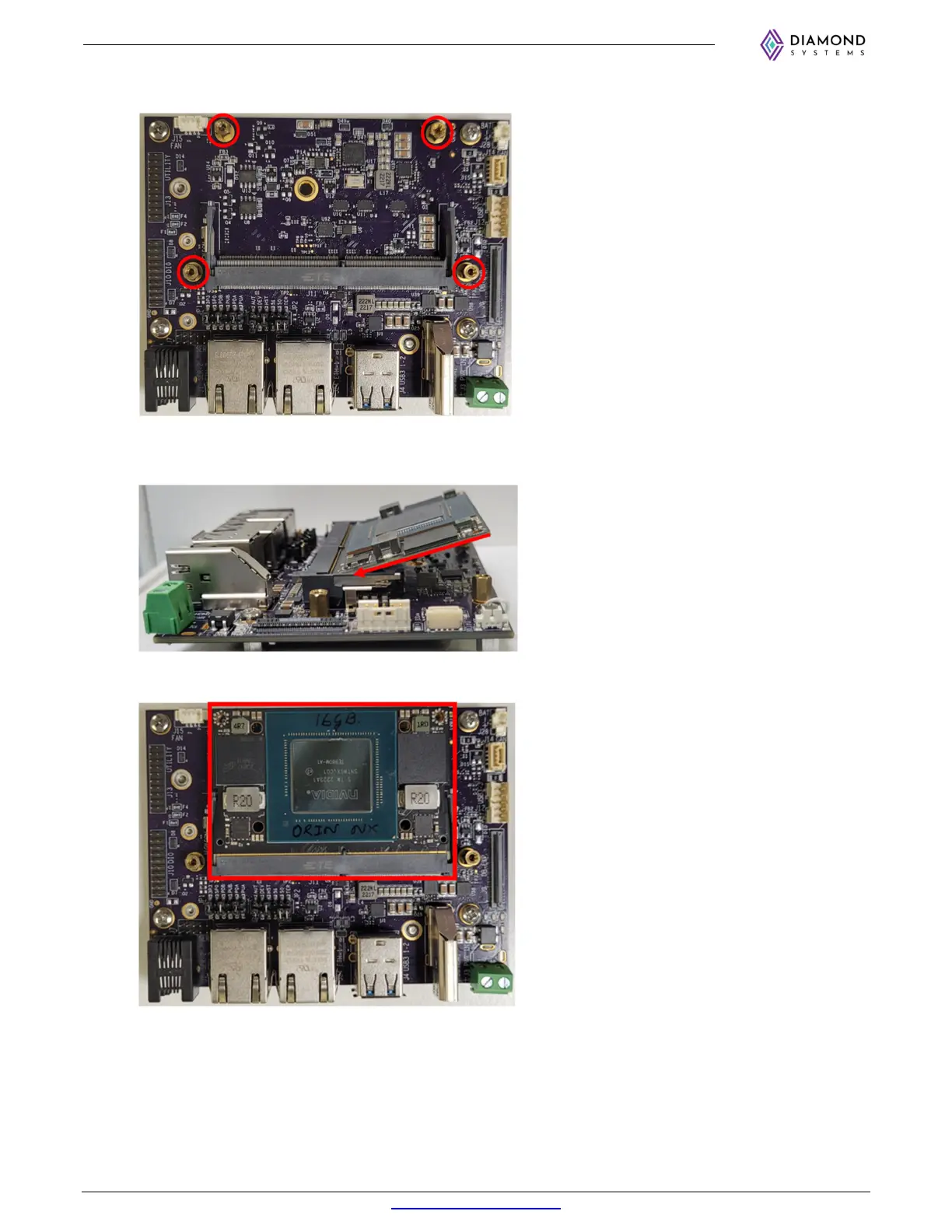

1. Make sure that DSC 6848065, M2.5 6.5mm F/F 4 spacers are on the board as encircled below.
2. Insert Orin NX/ Nano module into socket at 45-degree angle.
3. After insertion, push down the module so that module locks with the side clips.
4. Place the thermal pad GR45A (21 x 19 x 1 (t)) on the bottom of heat sink where pedestals for the module
are present. See illustration.
