Jackson User Manual rev 2.2 www.diamondsystems.com Page 38

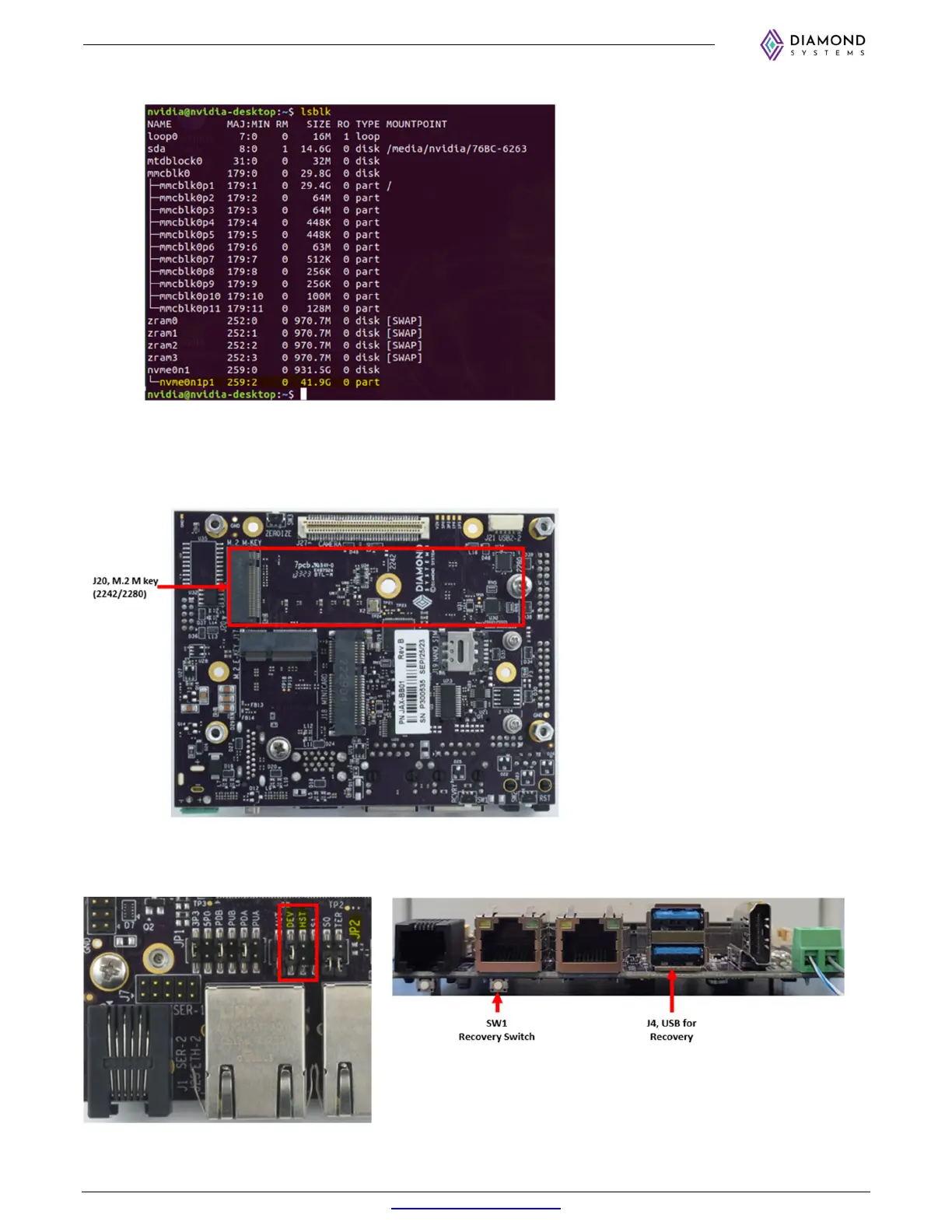

g. Run the ‘lsblk’ command. If nvme01p1 is detected as in below image, then the partition is successful.
10.3 BSP Flashing Procedure
a. After format, connect M2 M-key NVMe device at J20 connector of Jackson board as shown below.
b. Remove HST jumper and insert DEV jumper on JP2. Power on the board with recovery switch SW1
button pressed. Then release SW1 recovery switch button after few seconds.
