13 CAMERA ADAPTER BOARD
This section may be updated regularly based on newly introduced adapter boards. The information provided here
is current only as of the date of this manual’s publication Contact Diamond Systems for the latest information or to
arrange for a custom camera adapter board.
13.1 e-con camera adapter board
This adapter supports two e-con dual-lane CSI cameras. It can also be used with any other CSI cameras that
support the same pinout as mentioned in the table below.
1 V_3P3
2 CAM1_I2C_SDA_3P3
3 CAM1_I2C_SCL_3P3
4 GND_DIG
5 CAM0_MCLK_3P3
6 CAM0_PWDN_3P3
7 GND_DIG
8 CSI0_D3_P
9 CSI0_D3_N
10 GND_DIG
11 CSI0_D2_P
12 CSI0_D2_N
13 GND_DIG
14 CSI0_CLK_P
15 CSI0_CLK_N
16 GND_DIG
17 CSI0_D1_P
18 CSI0_D1_N
19 GND_DIG
20 CSI0_D0_P
21 CSI0_D0_N
22 GND_DIG

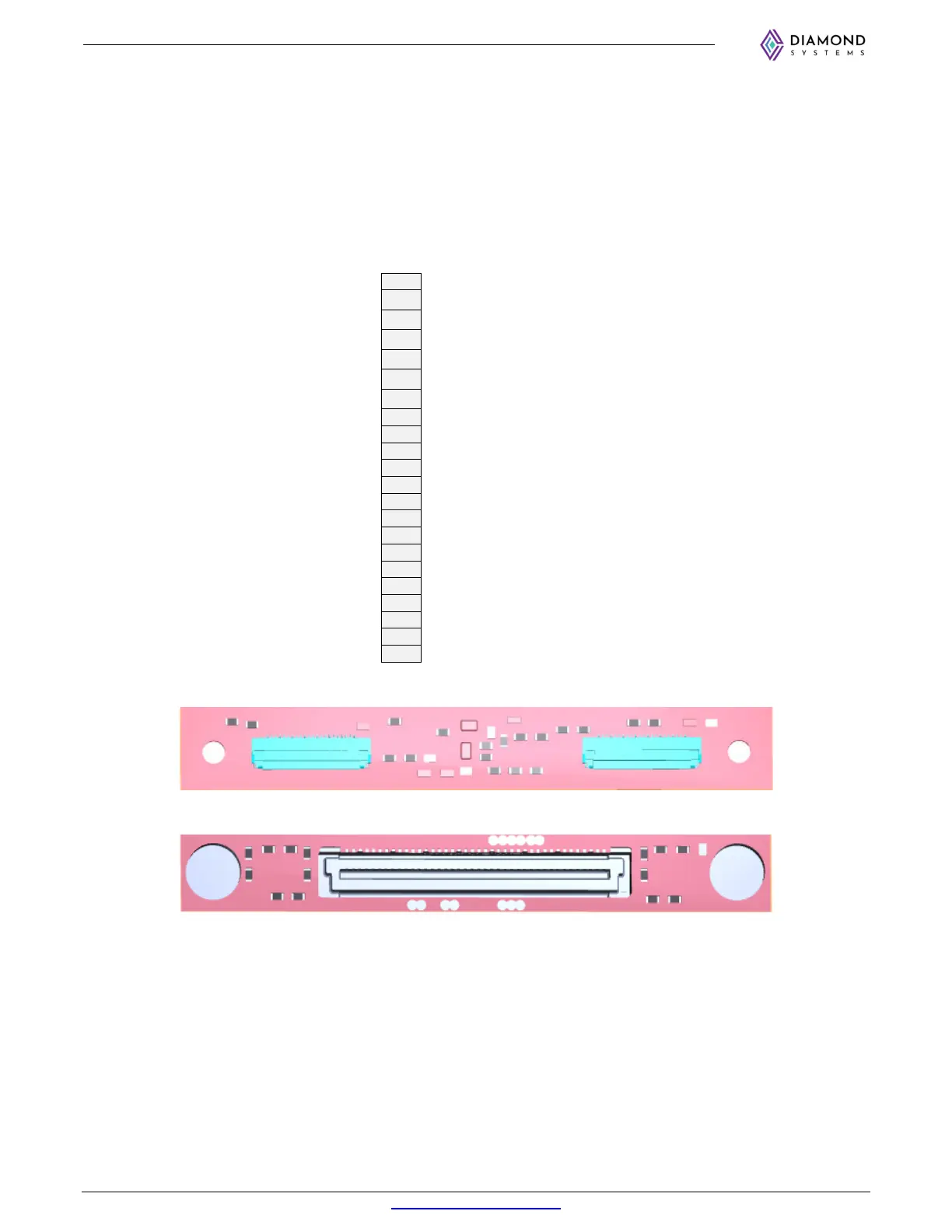

Top View with two camera connectors (J5 and J6)
Bottom View with B2B connector (J2)
