Jackson User Manual rev 2.2 www.diamondsystems.com Page 35
8 DEBUG CONSOLE

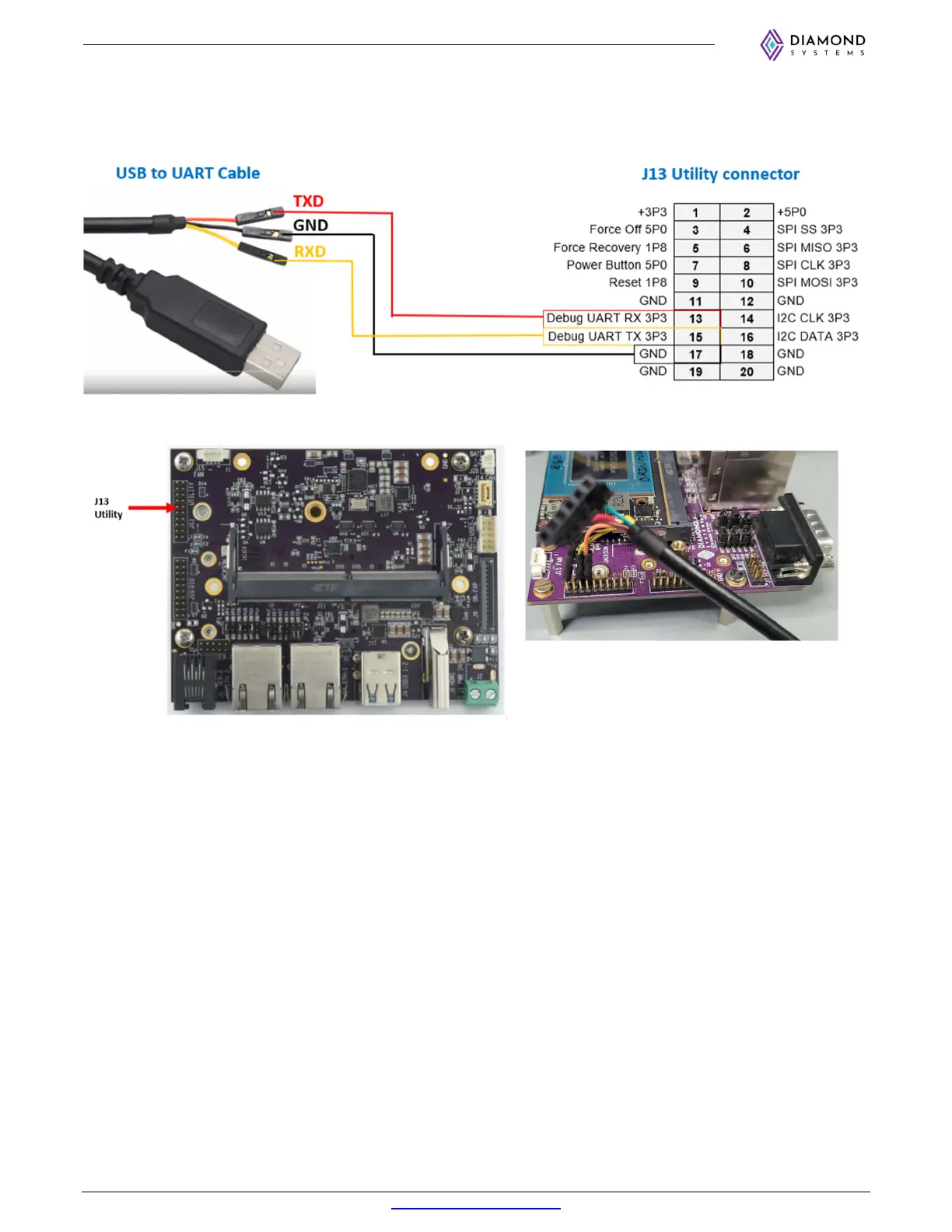

ToconnectadebugconsoletoJackson,connectaTTLtoUSBcablebetweenJacksonandlaptop,thenopenaserialterminal
applicationlikeTeraTerm,PuttyandlogontoJackson.Referbelowimagesforconnectiondetails.
