Jackson User Manual rev 2.2 www.diamondsystems.com Page 25

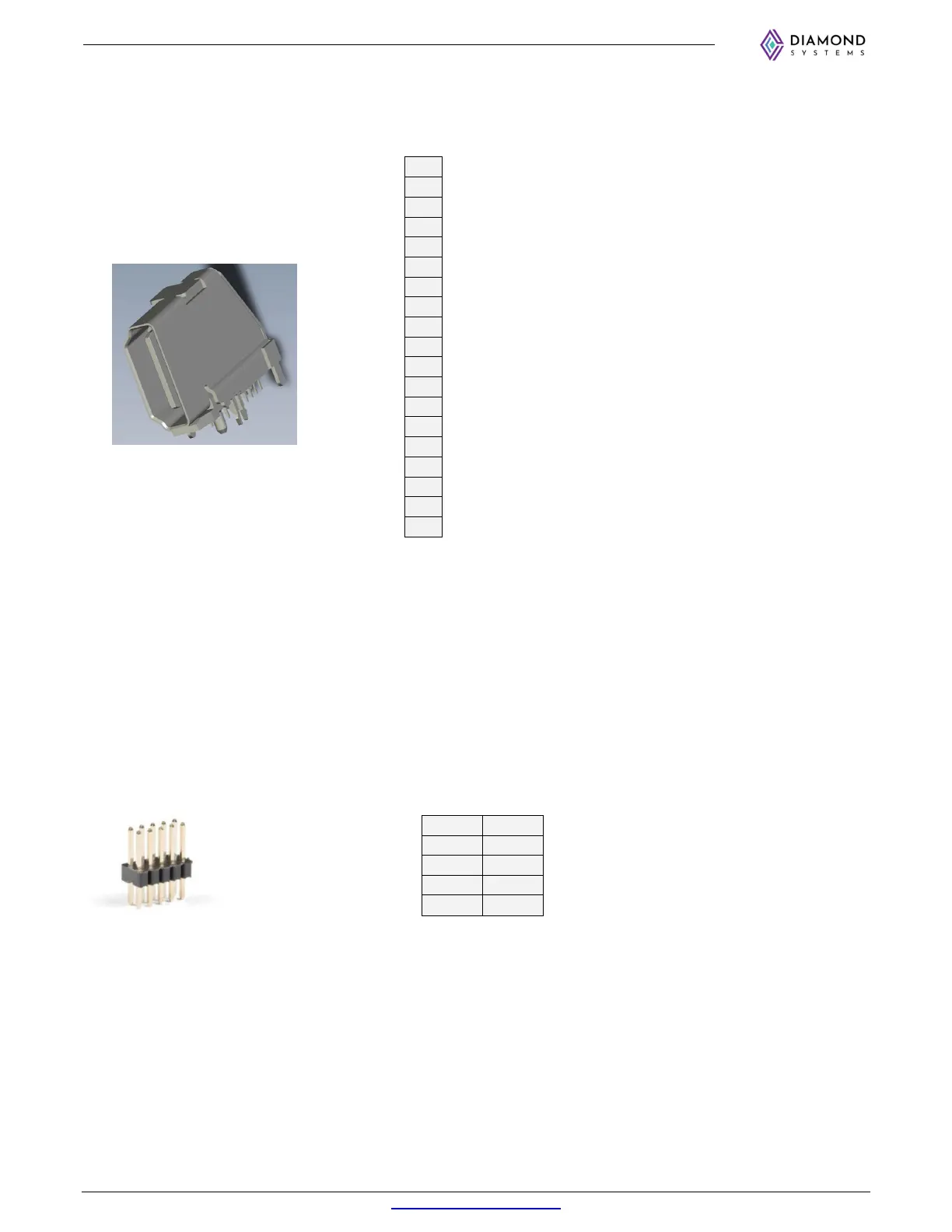

7.5 HDMI (J6)
HDMI port is available from module and will be available on an HDMI vertical stacked standard connector as
shown below. The connector follows the industry-standard pinout.
1 DATA2+
2 GND_2
3 DATA2-
4 DATA1+
5 GND_5
6 DATA1-
7 DATA0+
8 GND_8
9 DATA0-
10 CLK+
11 GND_11
12 CLK-
13 CEC
14 NC
15 DDC CLCK
16 DDC DATA
17 GND_17
18 +5V
19 HPD
Connector PN: QJ3119C-WFB1-4F
Mating cable PN: Standard HDMI cable
7.6 Serial Ports (J7)
Two serial ports are provided on this connector, one supporting fixed RS-232 and the second supporting
RS232/RS485 (selected based on Jumper settings). The RS232/RS485 or UART is also available in RJ12
connector on the front edge but at a time only one of the connectors must be used.
TX1
1 2
RTS1
RX1
3 4
CTS1
GND
5 6
GND
TX2/TX2_P/RX2_P
7 8
RTS2/TX2_N/RX2_N
RX2
9 10
CTS2
Connector type: 2x5 2mm Header
Connector PN: 0877581016
Mating Cable PN: 6981075
