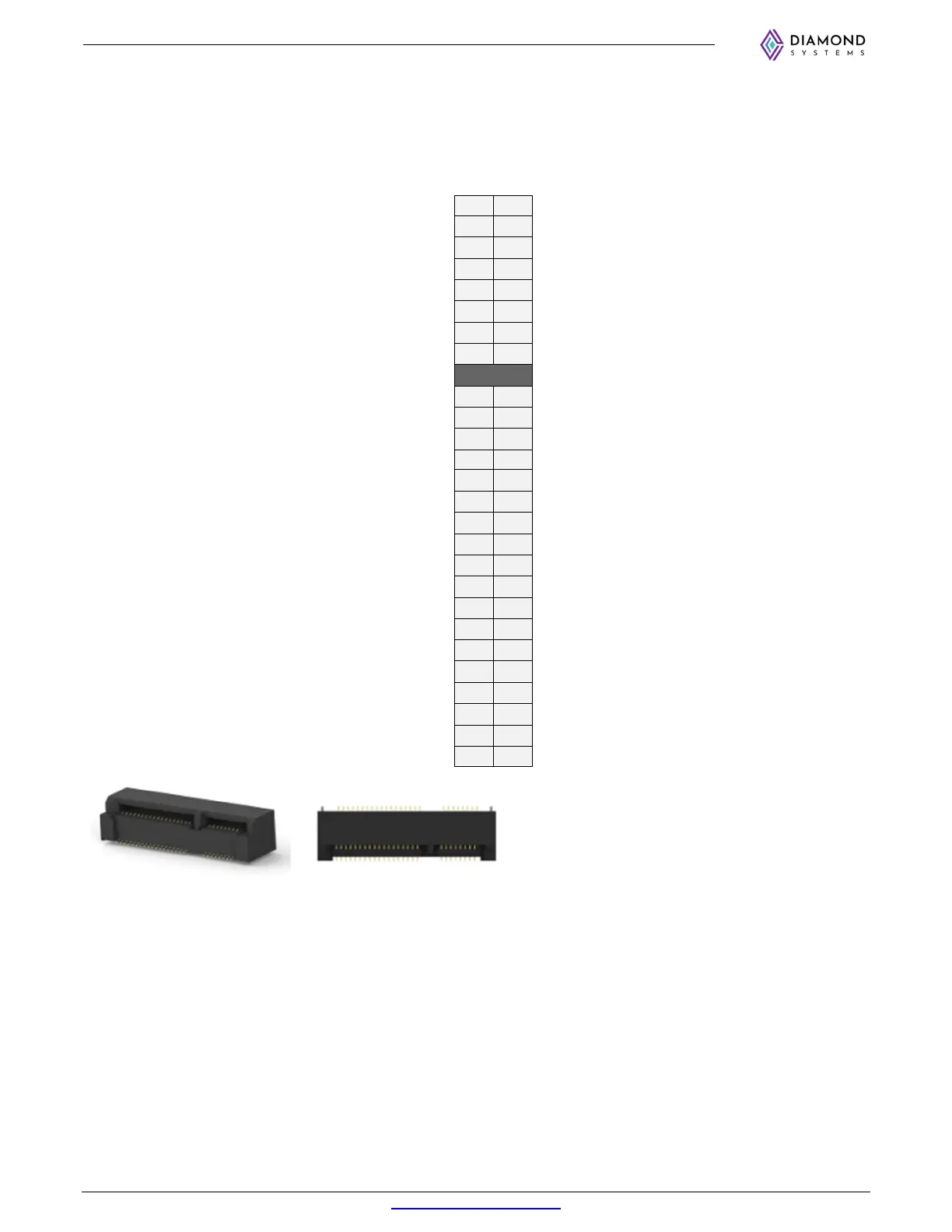

7.14 Minicard (J18)
The minicard provides extension options with x1 PCIe and x1 USB2.0 with SIM connector. All TX/RX signals are
with respect to the host. TX on the socket drives RX on the installed module, and RX on the socket is driven by
TX on the installed module. The mounting standoffs of the module installation site are not connected to ground.
PCIe WAKE# 1 2 V_3P3
NC
3 4
GND
NC
5 6
+1.5V
PCIe CLKREQ#
7 8
UIM PWR
GND
9 10
UIM DATA
PCIe CLK-
11 12
UIM CLK
PCIe 1 Clk+
13 14
UIM RESET
GND
15 16
UIM VPP
KEY
NC
17 18
GND
NC
19 20
NC
GND
21 22
PCIe Reset-
PCIe RX- 23 24 V_3P3
PCIe RX+
25 26
GND
GND
27 28
+1.5V
GND
29 30
NC
PCIe TX-
31 32
NC
PCIe TX+
33 34
GND
GND
35 36
USB D-
GND
37 38
USB D+
V_3P3
39 40
GND
V_3P3
41 42
NC
GND
43 44
NC
NC
45 46
NC
NC
47 48
+1.5V
NC
49 50
GND
NC 51 52 V_3P3
Connector manufacturer / PN: TE 1759547-1
