11 SYSTEM ASSEMBLY
11.1 Installing Orin Nano/ Orin NX Module
This section describes the steps to install Orin Nano/ Orin NX module on the Jackson base board.

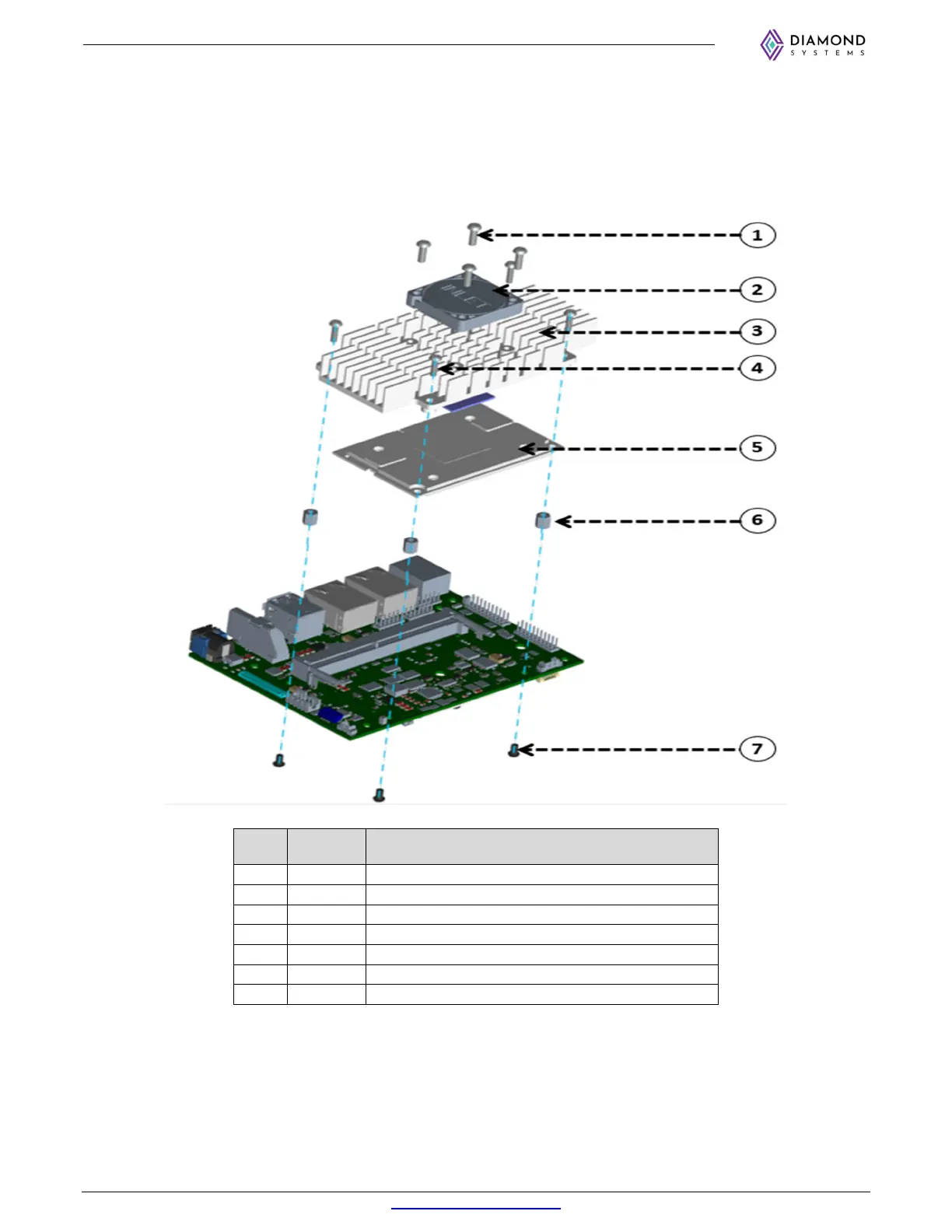

11.1.1 Required Accessories
Item
DSC Part
No.
Description
1 M2.5 x 10 Pan head Phillips screw #92000A1006
2 4810010 Fan, 30x30mm 6.9mmH, 5V 4-Wire
3 6882650 Jackson Heat Sink
4
M2.5 x 12mm Pan head Phillips screws #92000A107
5 8882286 Jetson Orin NX Module
6
6848065 Spacer, M2.5 x 6.5mmL Hex F/F Brass Nickel Plated
7 6810305 Screw, M2.5-.5X4mm, Pan head Phillips
