Jackson User Manual rev 2.2 www.diamondsystems.com Page 24

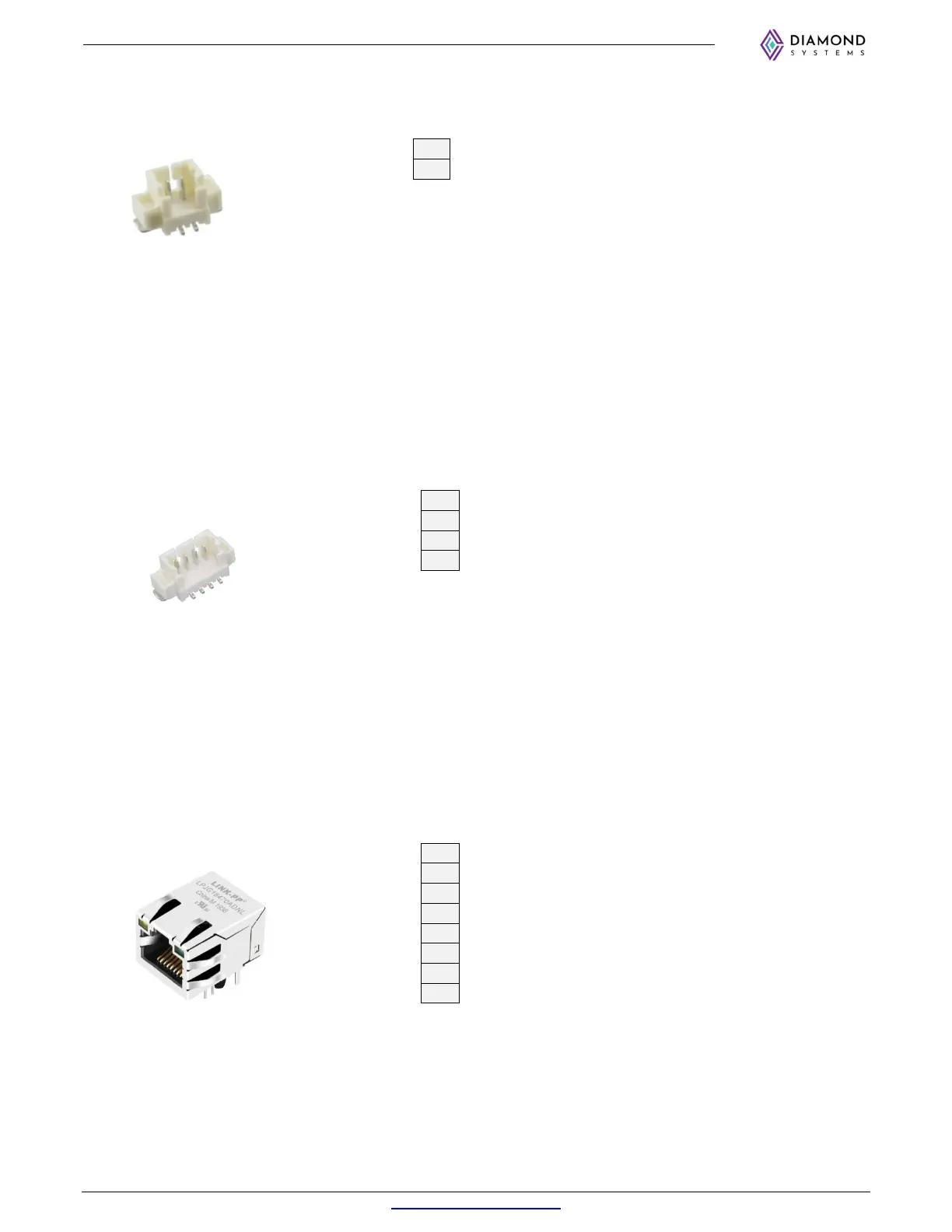

RTC Battery (J28)
The pinouts for RTC battery power input are as shown below:
1 RTC_BATT
2 GND
RTC BATT = +1.85 - +5.5V
Connector manufacturer / PN: Molex 0533980271
Mating Cable PN: 6980529 (cable with paddle terminals for soldering to battery)
4713001 (backup battery with soldered wire leads)
7.3 Fan (J15)
The pinouts for the fan connector are as shown below:
1 PWM
2 TACH
3 5V
4 GND
Connector manufacturer / PN: Molex 0533980471
Supported fan: ASB0305HP-00CP4 (included in Diamond Systems fan sink part no. 6882651)
7.4 Ethernet (J24, J25)
The Ethernet ports are terminated on a R/A RJ45 connector with integrated transformer (MagJacks).
All the Ethernet ports follow standard pinouts.
J1 TX1+
J2 TX1-
J3 RX+
J6 RX-
J4 TX2+
J5 TX2-
J7 TX3+
J8 TX3-
Connector PN: LPJG16470ADNL
Mating Cable PN: Standard LAN cable
