Jackson User Manual rev 2.2 www.diamondsystems.com Page 27

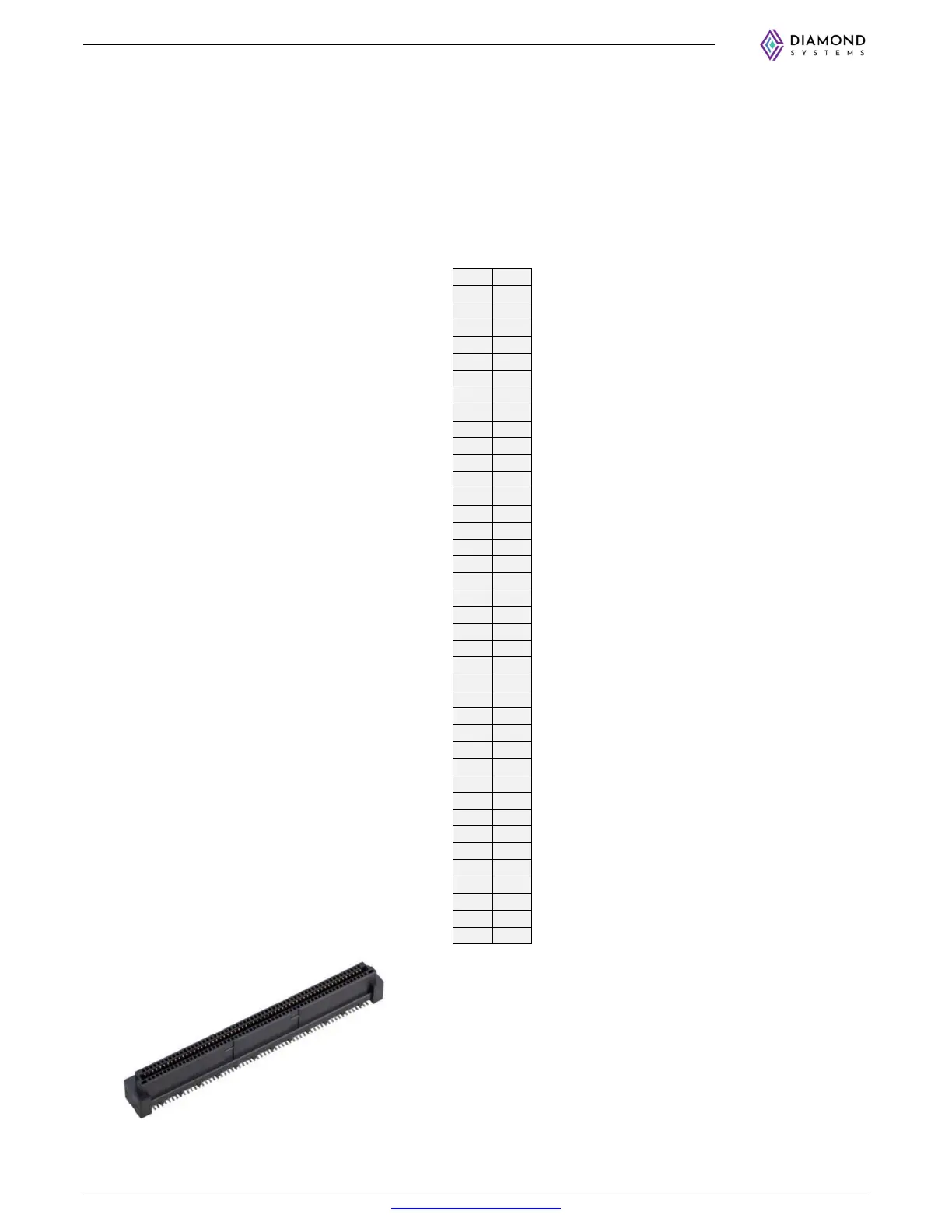

7.8 CSI Camera (J27)
An 80-pin board-to-board connector is used to connect a series of camera adapter boards to Jackson. This
enables Jackson to work with any CSI or GMSL camera by designing a suitable adapter with the required
connectors, pinouts, and circuitry where required. The adapter board mounts on two standoffs on the bottom side
of the board. Larger adapters can use taller mating connectors to straddle the board and mount on all 4 of the
heat sink mounting holes.
Contact Diamond Systems for a list of available camera adapters and associated cameras. Custom adapter
development can be provided by Diamond Systems, and the design requirements can be provided for customers
to design their own adapters.
V_3P3 1 41 NC
GND_DIG 2 42 NC
CAM2_I2C_SDA_3P3 3 43 NC
CSI2_D3_P 4 44 NC
CAM2_I2C_SCL_3P3 5 45 NC
CSI2_D3_N 6 46 V_5P0
GND_DIG 7 47 I2C0_GP_CLK_3P3
GND_DIG 8 48 V_5P0
CAM2_MCLK_3P3 9 49 I2C0_GP_DAT_3P3
CSI2_CLK_P 10 50 V_5P0
CAM2_PWDN_3P3 11 51 CAM1_I2C_SDA_3P3
CSI2_CLK_N 12 52 V_5P0
GND_DIG 13 53 CAM1_I2C_SCL_3P3
GND_DIG 14 54 V_VIN
CSI2_D2_P 15 55 GND_DIG
CSI2_D0_P 16 56 V_VIN
CSI2_D2_N 17 57 CSI1_CLK_P
CSI2_D0_N 18 58 V_VIN
GND_DIG 19 59 CSI1_CLK_N
GND_DIG 20 60 GND_DIG
CSI2_D1_P 21 61 GND_DIG
CSI3_CLK_P 22 62 GND_DIG
CSI2_D1_N 23 63 CSI0_D3_P
CSI3_CLK_N 24 64 CAM0_MCLK_3P3
GND_DIG 25 65 CSI0_D3_N
GND_DIG 26 66 CAM0_PWDN_3P3
CAM_I2C_SCL_3P3 27 67 GND_DIG
CAM_GPIO1_1P8 28 68 GND_DIG
CAM_I2C_SDA_3P3 29 69 CSI0_CLK_P
CAM_GPIO2_1P8 30 70 CSI0_D2_P
CAM_MUX_SEL0 31 71 CSI0_CLK_N
CAM_GPIO3_1P8 32 72 CSI0_D2_N
V_3P3 33 73 GND_DIG
CAM_GPIO4_1P8 34 74 GND_DIG
V_3P3 35 75 CSI0_D0_P
NC 36 76 CSI0_D1_P
V_3P3 37 77 CSI0_D0_N
NC 38 78 CSI0_D1_N
NC 39 79 GND_DIG
NC 40 80 GND_DIG
Connector PN: G832MB030801322HR
Note: Standard board-to-board mating height for CSI adapters is 6mm.
