Dickey-John Seed Manager SE User Manual

OPERATOR'S MANUAL
INSTALLATION/ 11
Dj SEED MANAGER® SE PLANTER MONITOR
BENCHMARK Series® 11001-1218-200112 Rev A

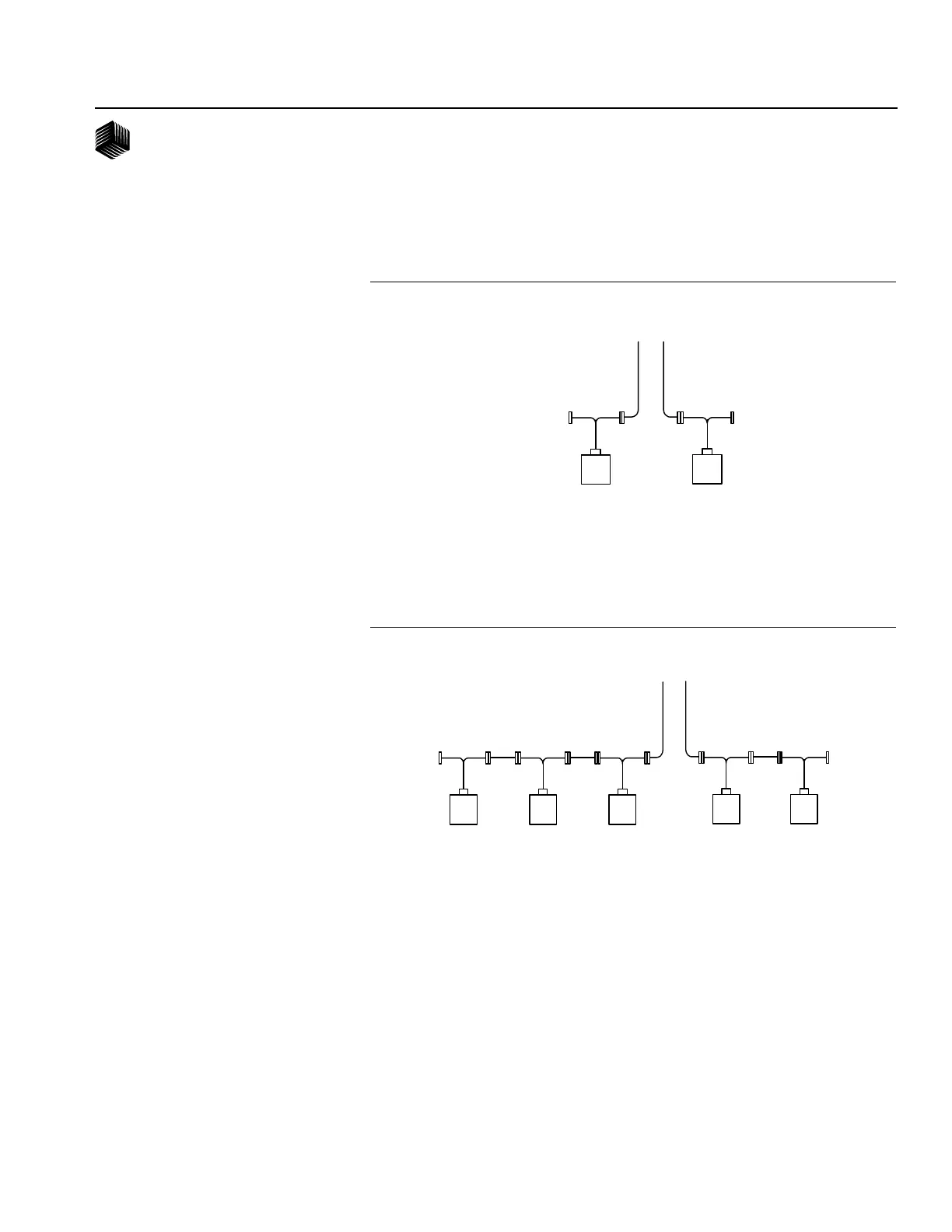

In this two module configuration, one module is connected to both P1 and P2.
InOut
InOut
P1
b1
b2
P2
In this five module configuration, three modules are connected to P1 and two are
connected to P2.
P1
InOut
In Out In Out
P2
InOut InOut
b1 b2 b3 b4 b5
As the previous examples show, b1 is always identified as the LAST module connected
to P1. The remaining modules on P1 are number sequentially, along with any
modules connected to P2.
Figure 6D
Two module setup
Figure 6E
Five module setup
