3.8 Replacement of the fuses
When replacing the fuses is necessary, proceed as follows:
1. Turn off the instrument and disconnect from the power supply

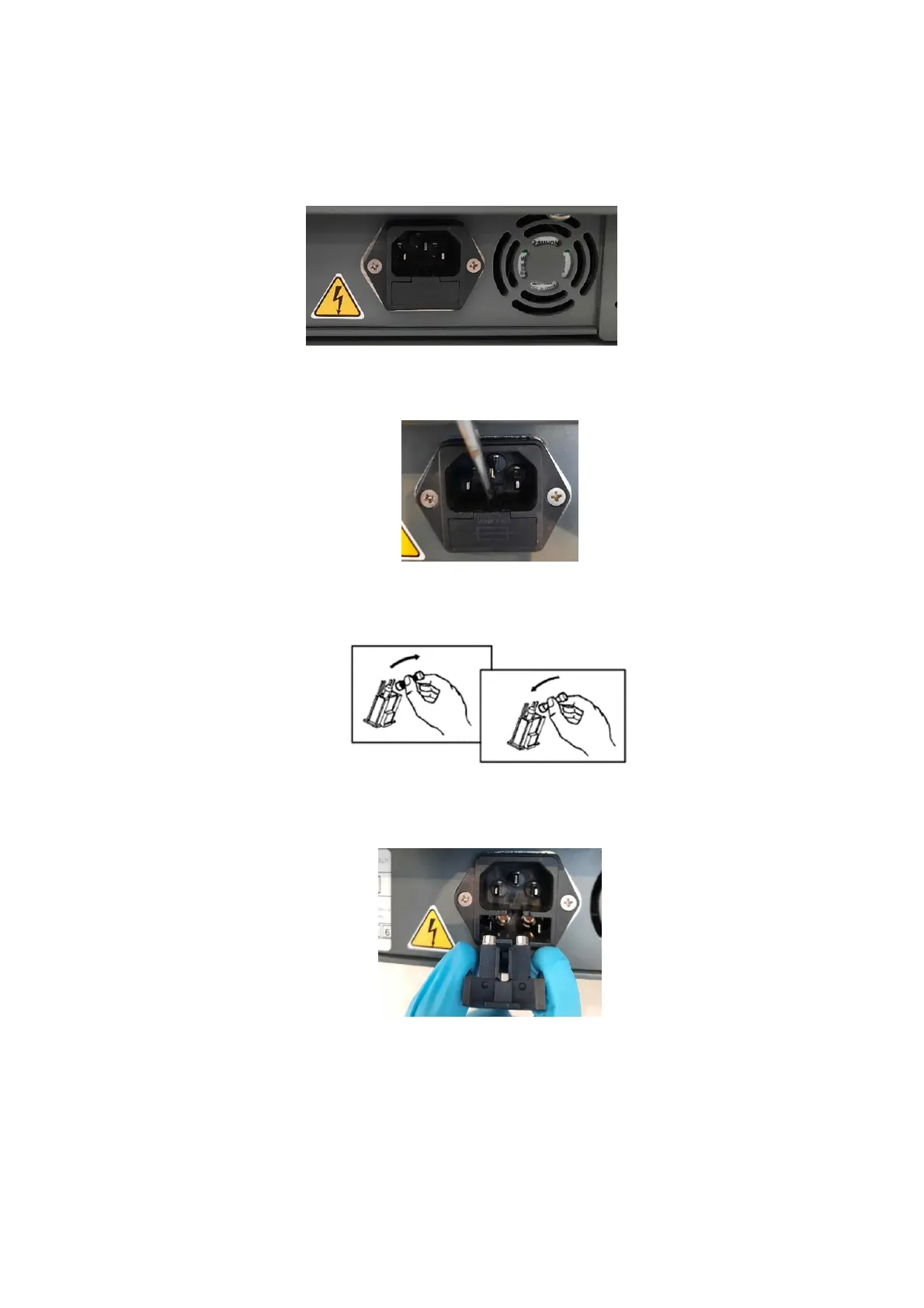

Figure 14 – Replacement of the fuses: fuses box
2. Use a socket head screwdriver to extract the fuse box.
Figure 15 – Replacement of the fuses: extraction box
3. Replace the damaged fuses with new ones supplied with the instrument.
Figure 16 – Replacement of the fuses
4. Replace the fuses box
Figure 17 – Replacement of the fuses: repositioning box
5. Reconnect the instrument to the power supply
6. Turn on the instrument again.
If at the time of turning on the fuses they trip again, contact the Technical Assistance.
