CUBE 30 TOUCH | USER MANUAL
5 Archive
The Archive menu can be reached by pressing the button. The analyzed
samples are organized in pages and the page number is visible at the bottom left of the
screen. The archive contains up to 5000 records; when they are exceeded, the FIFO (First
In First Out) strategy is adopted: sample number 5001 is stored and the oldest (sample
1) is eliminated.
Samples may be organized by date or by code (ID), using the appropriate tab (Figure 49)

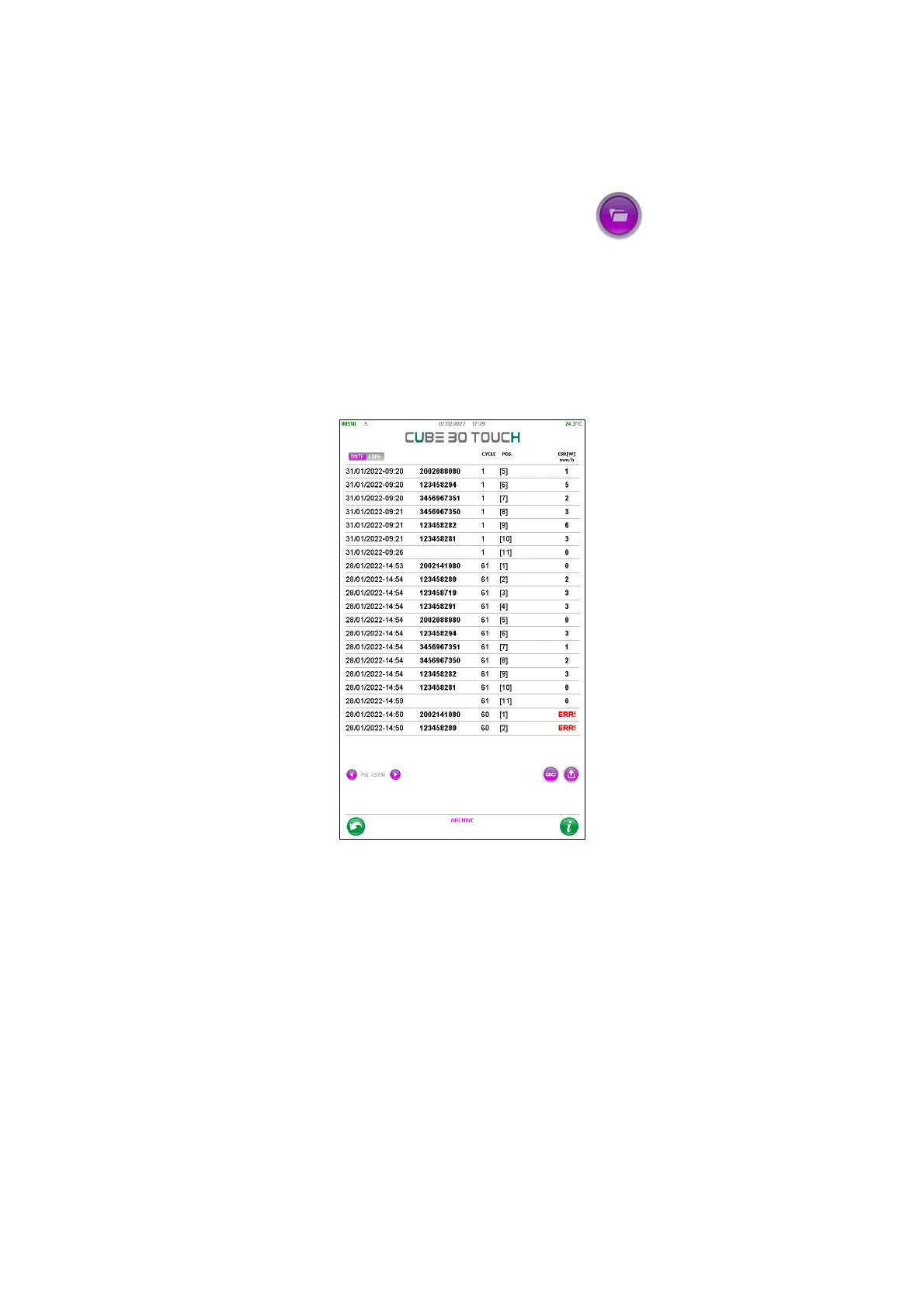

Figure 49 - Sample Archive
Each sample in the archive has associated with it:
• Date and time of the analysis cycle
• ID code
• Cycle number for the day
• Position occupied in the carousel between []
• ESR value (mm/hr). The reference method is displayed in square brackets: W for
Westergren, P for Pachenkov.
A red ESR value indicates that the result is outside the normal range (20
mm/hr by default)
