Digilite Pulse MX - Expansion Unit Integration

PULSE EX
70
- 9 - EXPANSION

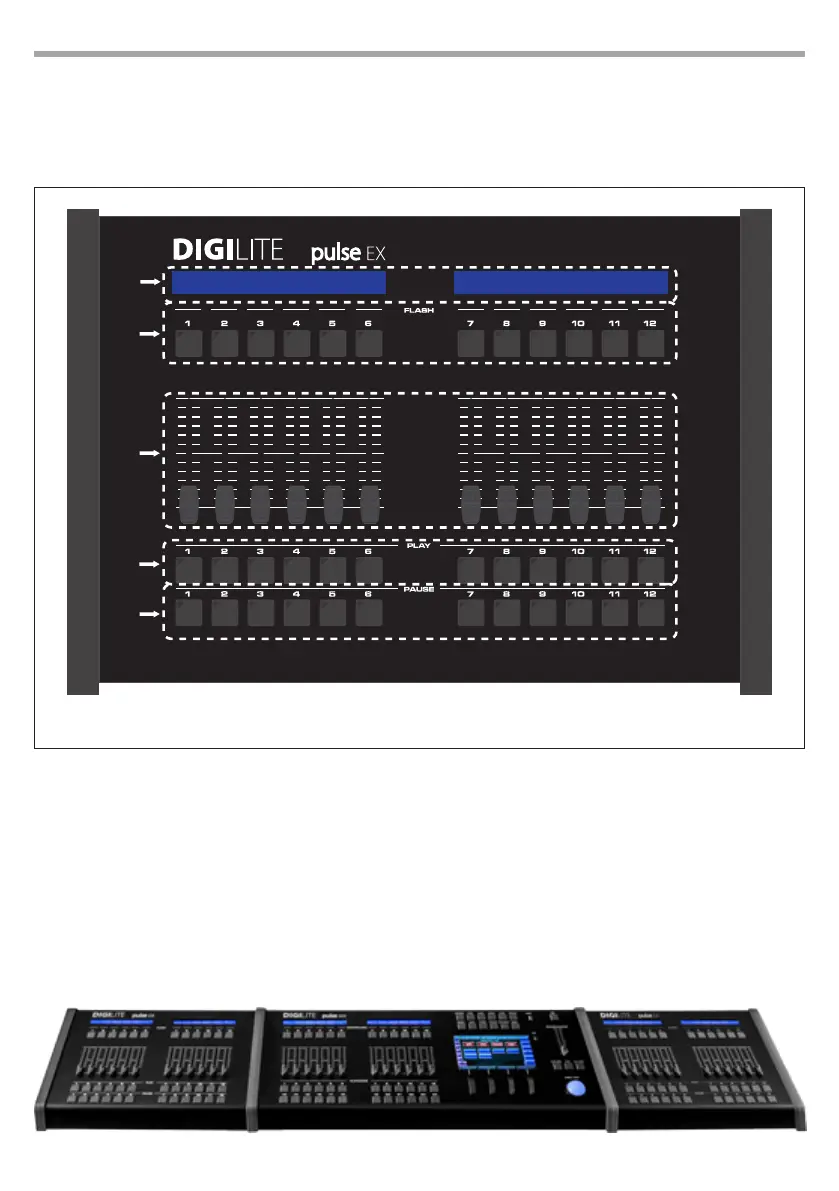

9.1 OPERATING ELEMENTS AND CONNECTIONS
Fig.56
Fig.57
Front panel
1. PLAYBACK STATUS
2. FLASH KEYS
3. INTENSITY MASTER
4. TRIGGER KEYS
5. SELECT/PAUSE KEYS
1
2
3
4
5
It is possible to connect up to maximum two expansions per console.
