Digisol DG-GS1528HP - 4.12.2.1. Ingress;Egress Port

DG-GS1528HP User Manual
180
4.12.2.1. Ingress/Egress Port
This page allow user to configure ingress port rate limit and egress port rate limit.
The ingress rate limit is the number of bits per second that can be received from
the ingress interface. Excess bandwidth above this limit is discarded.
To view the Ingress / Egress Port menu, navigate to QoS > Rate Limit > Ingress /
Egress Port.

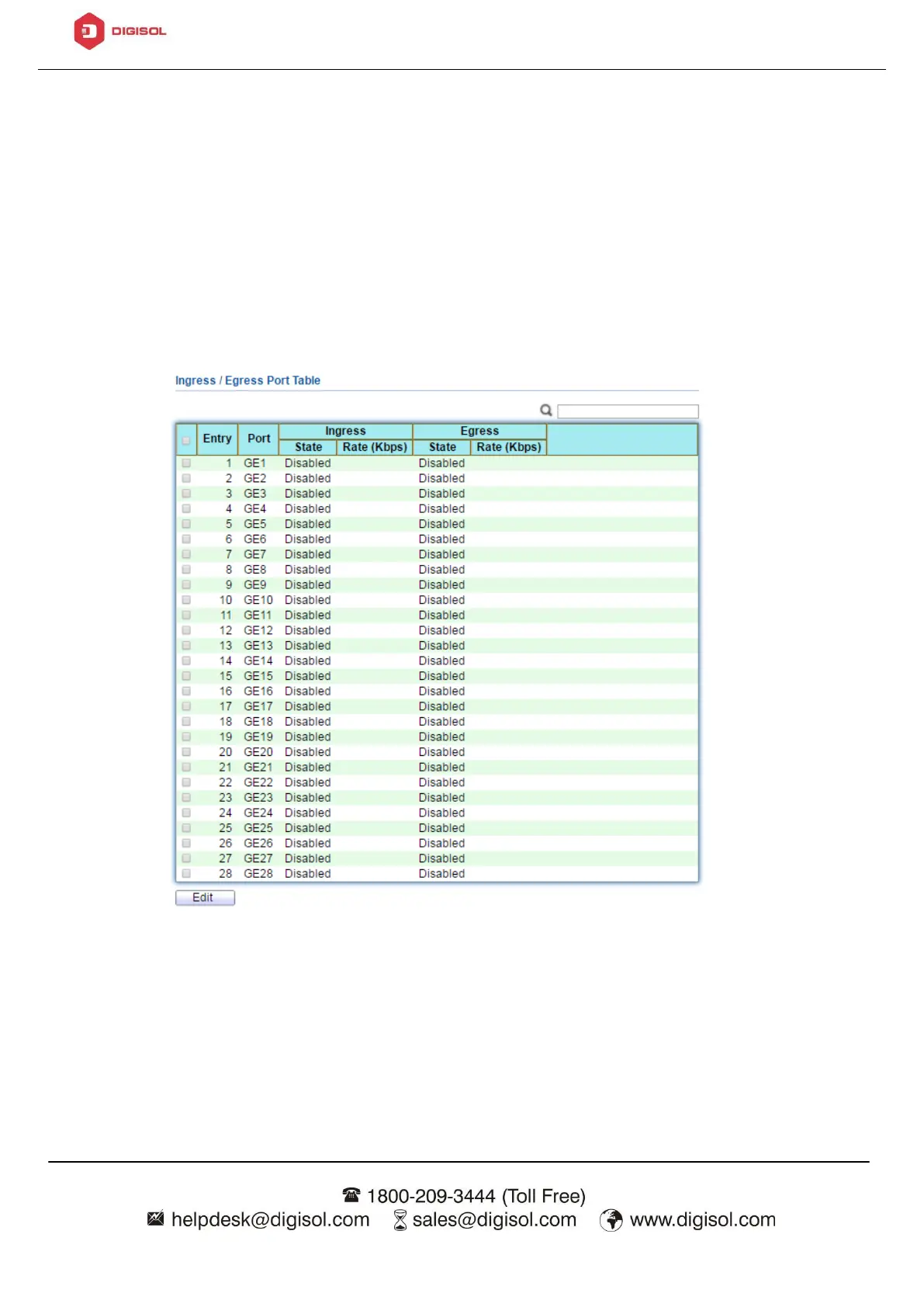

Figure 133 - QoS > Rate Limit > Ingress / Egress Port
