DG-GS1528HP User Manual
4.5. VLAN
A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common
set of requirements that communicate as if they were attached to the same broadcast
domain, regardless of their physical location. A VLAN has the same attributes as a
physical local area network (LAN), but it allows for end stations to be grouped
together even if they are not located on the same network switch.VLAN membership
can be configured through software instead of physically relocating devices or
connections.
4.5.1. VLAN
Use the VLAN pages to configure settings of VLAN.
4.5.1.1. Create VLAN
This page allows user to add or delete VLAN ID entries and browser all VLAN
entries that add statically or dynamic learned by GVRP. Each VLAN entry has a
unique name, user can edit VLAN name in edit page.
To view the Create VLAN menu, navigate to VLAN > VLAN > Create VLAN.

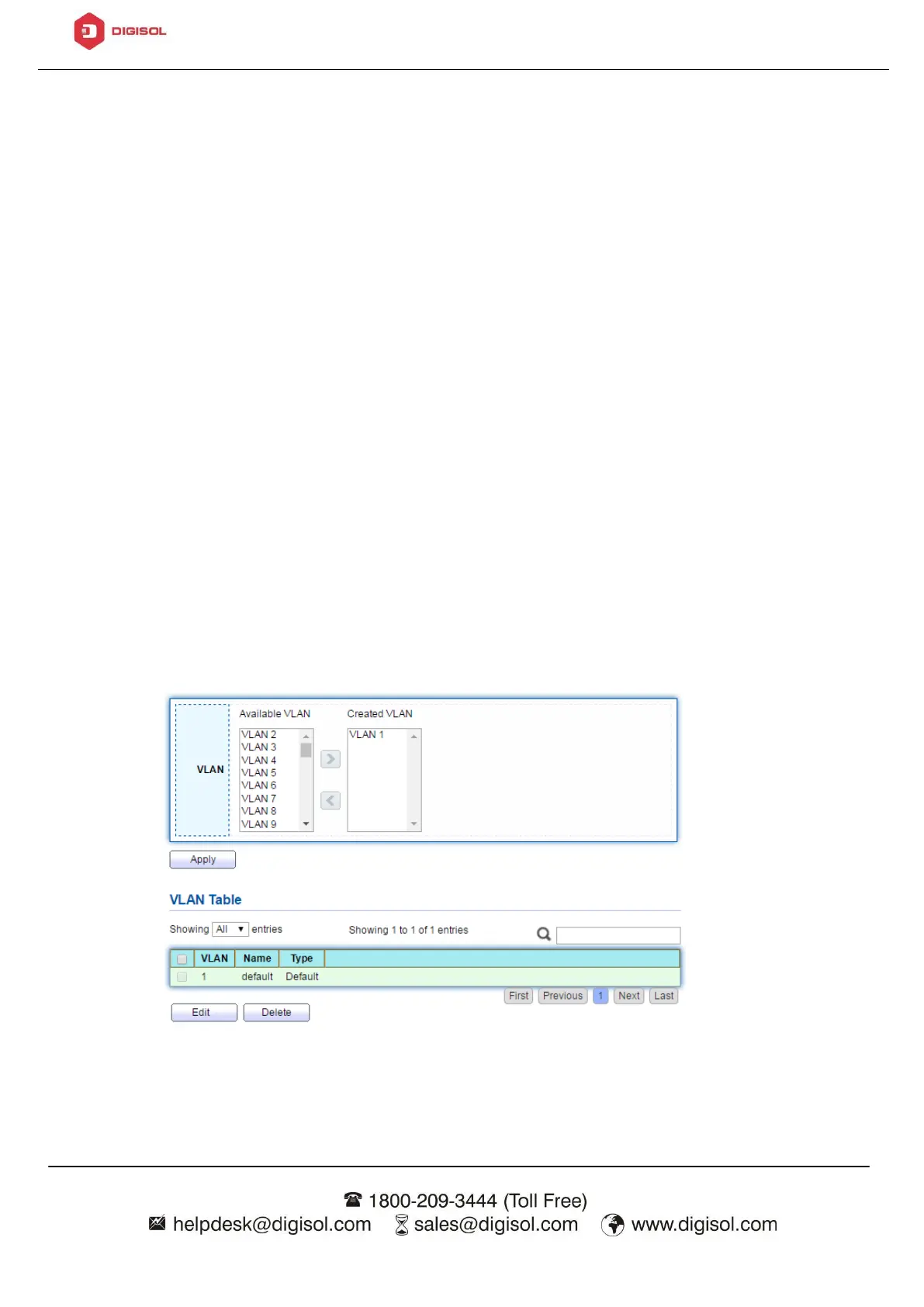

Figure 38 - VLAN > VLAN > Create VLAN
