4.7.4. MST Port Setting
To view the MST Port Setting menu, navigate to Spanning Tree > MST Port
Setting.

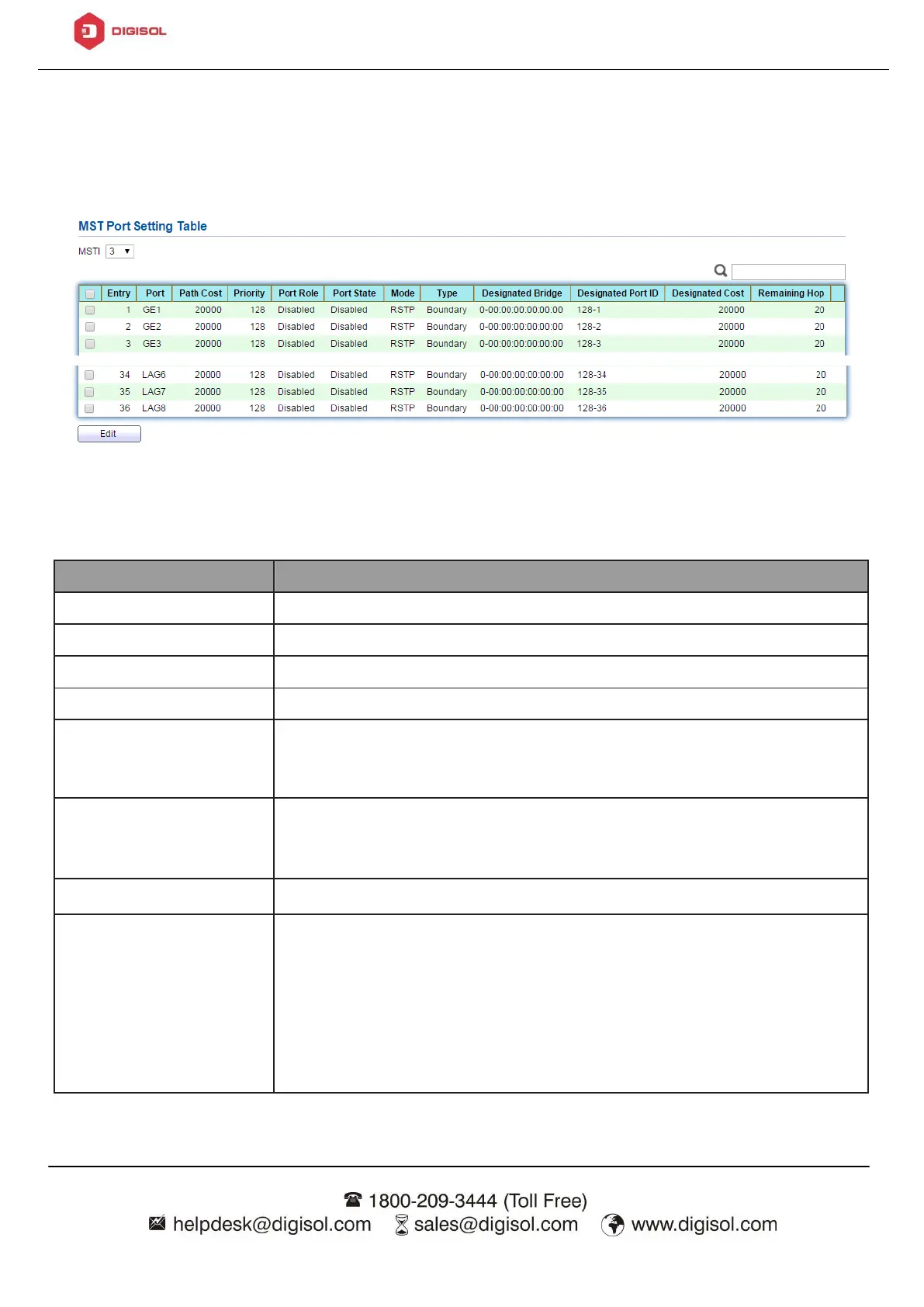

Figure 61 - Spanning Tree > MST Port Setting
Item
Description
MSTI
Specify the port setting on the specified MSTI.
Port
Specify the interface ID or the list of interface IDs.
Path Cost
The port path cost on the specified MSTI.
Priority
The port priority on the specified MSTI.
Port Role
The current port role on the specified port. The possible
values are: “Disabled”, “Master”, “Root”, “
Designated”, “Alternative”, and “Backup”.
Port State
The current port state on the specified port. The possible
values are: “Disabled”, “Discarding”, “Learning”,
and “Forwarding”.
Mode
The operational STP mode on the specified port.
Type
The possible value for the port type are:
• Boundary: The port attaching an MST Bridge to a LAN that
is not in the same region.
• Internal: The port attaching an MST Bridge to a LAN that is
not in the same region.
