Dinolift 160XT - General Description of the Machine

14
160XT 180XT 210XT

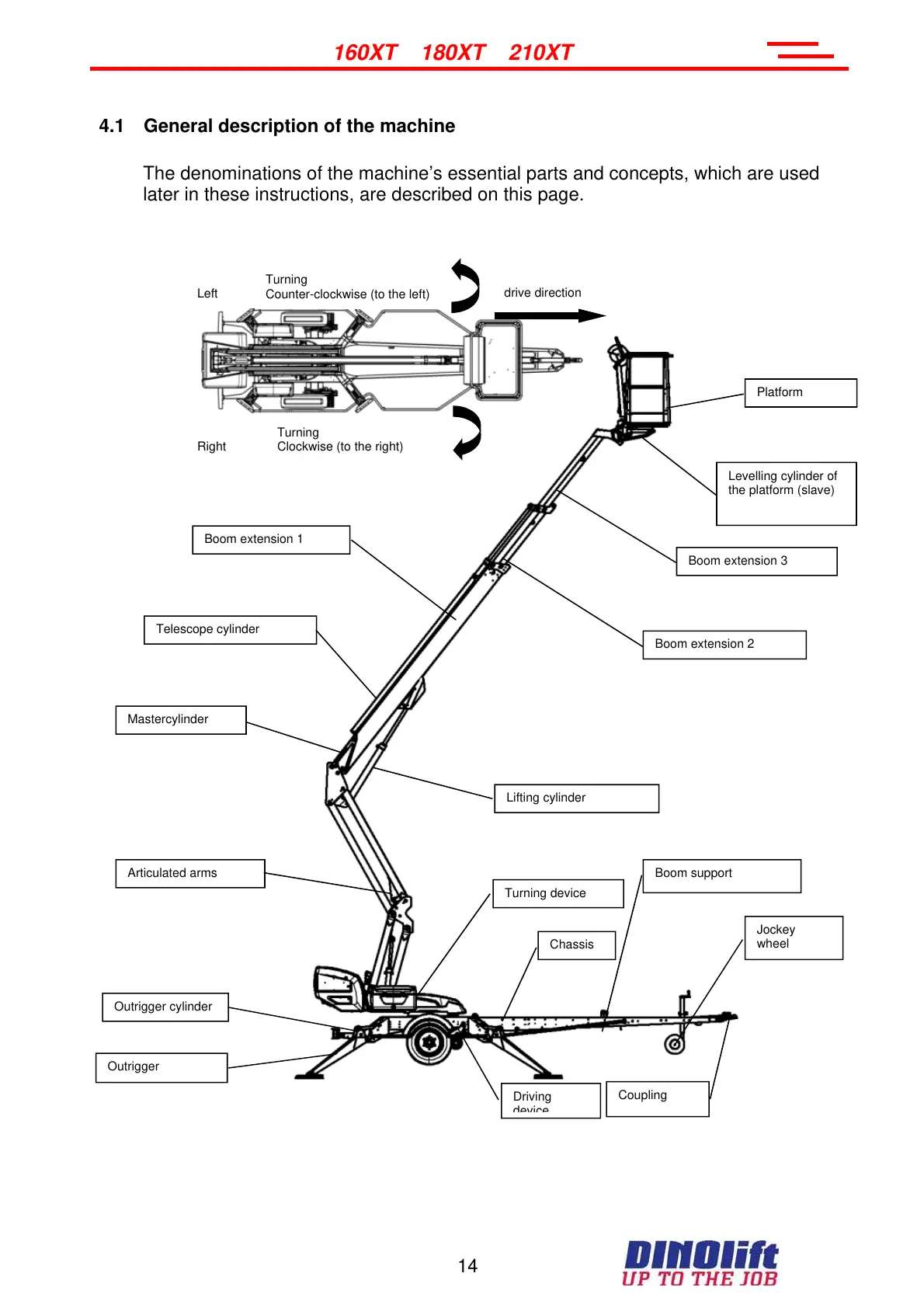

4.1 General description of the machine
The denominations of the machine’s essential parts and concepts, which are used
later in these instructions, are described on this page.
Platform
Boom extension 1
Boom extension 2
Boom extension 3
Levelling cylinder of
the platform (slave)
Articulated arms
Telescope cylinder
Lifting cylinder
Turning device
Outrigger cylinder
Outrigger
Mastercylinder
Chassis
Driving
device
drive direction
Right
Left
Turning
Counter-clockwise (to the left)
Turning
Clockwise (to the right)
Jockey
wheel
Coupling
Boom support
